Specifications

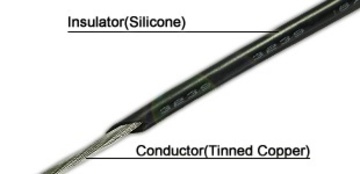

Conductor | Insulator | ||||||||||||||
3000V | 6000V | 10000V | 20000V | 30000V | 40000V | ||||||||||
AWG |
Composition NO. x mm |
Cross Section Area mm |
Inside Diameter mm |
Jacket Thick mm |
Overall Diameter mm |
Jacket Thick mm |
Overall Diameter mm |
Jacket Thick mm |
Overall Diameter mm |
Jacket Thick mm |
Overall Diameter mm |
Jacket Thick mm |
Overall Diameter mm |
Jacket Thick mm |
Overall Diameter mm |
24 | 14 x 0.14 | 0.22 | 0.60 | 0.50 | 1.60 | 0.70 | 2.00 | 1.00 | 2.60 | 1.30 | 3.20 | 1.70 | 4.00 | 2.00 | 4.60 |
22 | 22 x 0.14 | 0.34 | 0.75 | 0.50 | 1.75 | 0.70 | 2.15 | 1.00 | 2.75 | 1.30 | 3.35 | 1.70 | 4.15 | 2.00 | 4.75 |
20 | 20 x 0.18 | 0.49 | 0.91 | 0.50 | 1.91 | 0.70 | 2.31 | 1.00 | 2.91 | 1.30 | 3.51 | 1.70 | 4.31 | 2.00 | 4.91 |
18 | 30 x 0.18 | 0.80 | 1.20 | 0.50 | 2.20 | 0.70 | 2.60 | 1.00 | 3.20 | 1.30 | 3.80 | 1.70 | 4.60 | 2.00 | 5.20 |
16 | 50 x 0.18 | 1.32 | 1.50 | 0.50 | 2.50 | 0.70 | 2.90 | 1.00 | 3.50 | 1.30 | 4.10 | 1.70 | 4.90 | 2.00 | 5.50 |
14 | 37 x 0.26 | 1.88 | 1.83 | 0.60 | 3.03 | 0.80 | 3.43 | 1.20 | 4.23 | 1.50 | 4.83 | 2.00 | 5.83 | 2.50 | 6.83 |
12 | 43 x 0.32 | 3.31 | 2.50 | 0.65 | 3.80 | 0.85 | 4.20 | 1.25 | 5.00 | 1.55 | 5.60 | 2.05 | 6.60 | 2.55 | 7.60 |
10 | 34 x 0.45 | 5.26 | 3.10 | 0.70 | 4.50 | 0.90 | 4.90 | 1.30 | 5.70 | 1.60 | 6.30 | 2.10 | 7.30 | 2.60 | 8.30 |
