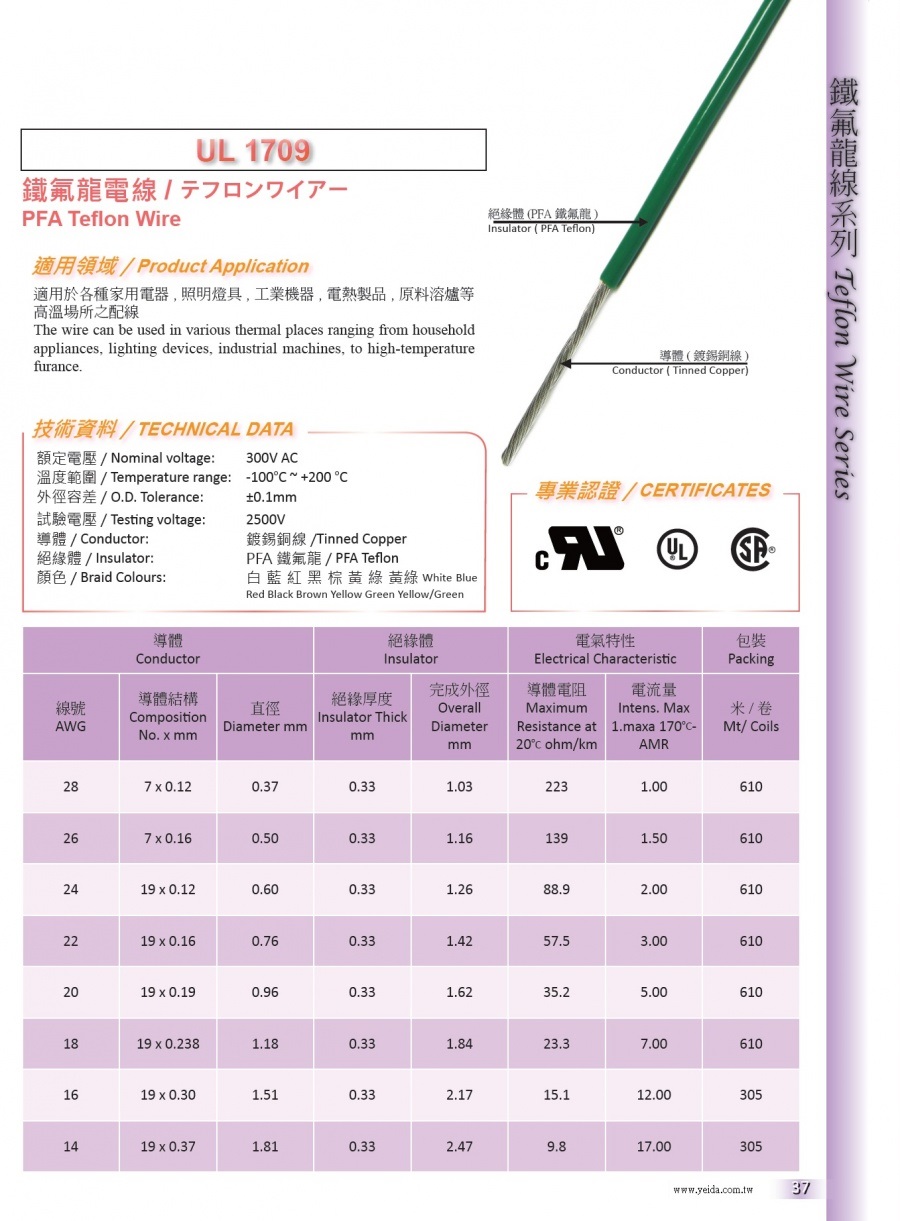

UL1709 PFA Teflon Wire / テフロンワイアー -100℃ ~ +200℃ 300V 鐵氟龍耐高溫電線

IDA-UL1709

商品編號: IDA-UL1709

UL1709 PFA Teflon Wire / テフロンワイアー -100℃ ~ +200℃ 300V, 鐵氟龍耐高溫電線

適用領域

The wire can be used in various thermal places ranging from household appliances, lighting devices, industrial machines, to high-temperature furance.

技術資料

Nominal voltage: 300V
Temperature range: -100oC ~ +200 oC
O.D. Tolerance: ±0.1mm
Testing voltage: 2500V
Conductor: Tinned Copper
Insulator: PFA Teflon
Braid Colours: White Blue Red Black Brown Yellow Green Yellow Green

Specifications

Conductor			Insulator		Electrical Characteristic		Packing
AWG	Composition No. x mm	Diameter mm	Insulator Thick mm	Overall Diameter mm	Maximum Resistance at 20℃ ohm/km	Intens. Max 1.maxa 170℃-AMR	Mt/ Coils
28	7 x 0.12	0.37	0.33	1.03	223	1.0	610
26	7 x 0.16	0.50	0.33	1.16	139	1.5	610
24	19 x 0.12	0.60	0.33	1.26	88.9	2.0	610
22	19 x 0.16	0.76	0.33	1.42	57.5	3.0	610
20	19 x 0.19	0.96	0.33	1.62	35.2	5.0	610
18	19 x 0.235	1.18	0.33	1.84	23.3	7.0	610
16	19 x 0.29	1.51	0.33	2.17	15.1	12.0	305
14	19 x 0.37	1.81	0.33	2.47	9.8	17.0	305
