商品編號: IDA-ULSRG

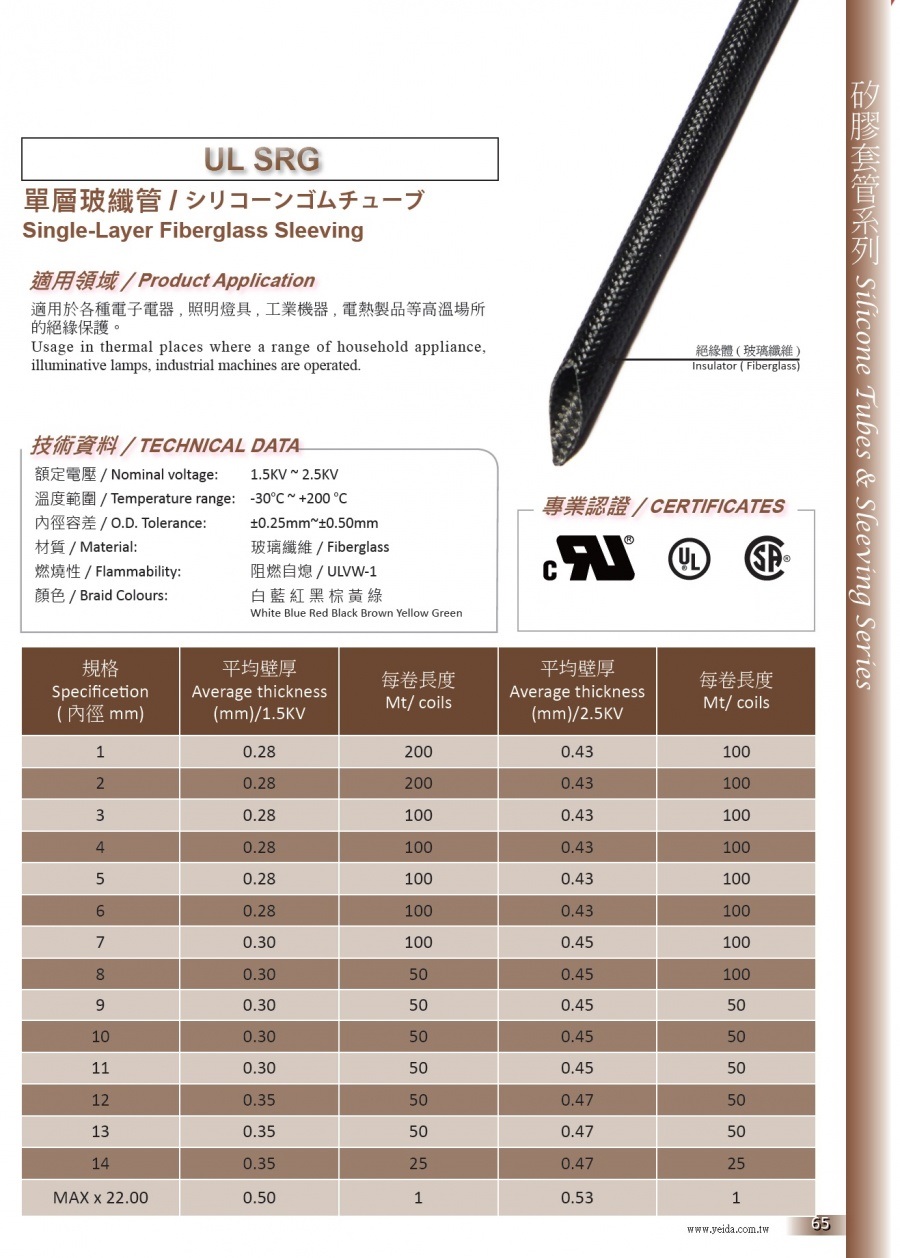

UL SRG Single-Layer Fiberglass Sleeving / シリコーンゴムチューブ
Usage in thermal places where a range of household appliance, illuminative lamps, industrial machines are operated
|
TECHNICAL DATA
- Nominal voltage: 1.5KV ~ 2.5KV
- Temperature range: -30oC ~ +200 oC
- O.D. Tolerance: ±0.25mm ~ ±0.50mm
- Material: Fiberglass
- Flammability: ULVW-1
- Braid Colours: White Blue Red Black Brown Yellow Green
UL SRG Specifications
Specificetion
(mm) |
Average thickness
(mm)/1.5KV |
Mt/ coils |
Average thickness
(mm)/2.5KV |
Mt/ coils |
1 |
0.28 |
200 |
0.43 |
100 |
2 |
0.28 |
200 |
0.43 |
100 |
3 |
0.28 |
100 |
0.43 |
100 |
4 |
0.28 |
100 |
0.43 |
100 |
5 |
0.28 |
100 |
0.43 |
100 |
6 |
0.28 |
100 |
0.43 |
100 |
7 |
0.30 |
100 |
0.45 |
100 |
8 |
0.30 |
50 |
0.45 |
100 |
9 |
0.30 |
50 |
0.45 |
50 |
10 |
0.30 |
50 |
0.45 |
50 |
11 |
0.30 |
50 |
0.45 |
50 |
12 |
0.35 |
50 |
0.47 |
50 |
13 |
0.35 |
50 |
0.47 |
50 |
14 |
0.35 |
25 |
0.47 |
25 |
MAX x 22.00 |
0.50 |
1 |
0.53 |
1 |
|
|
|
