    HF-H24 Jumper Cable 電子排線 24 AWG 2.54 Pitch, UL STYLE:2651 CSA Standard : C22.2 No. 210.2 105°C 300V
    看原圖
    		HF-H24



    商品編號: HF-H24

    HF-H24 Jumper Cable 電子排線 24 AWG 2.54 Pitch, UL STYLE:2651 CSA Standard : C22.2 No. 210.2 105°C 300V

    Solid : Used for most electronic equipment requiring higher currents such as jumper wires or shor t-distance　　　connections. Stranded : Used for most electronic equipment requiring a higher r ated current due to long-distance connection. his type of cable may be used with connectors of pitch 2.54.

    UL&CSA GRADE :
      UL STYLE: 2651
    Rate temperature : 105°C
    Rate voltage : 300V
    Flame test : VW-1
      CSA Standard : C22.2 No. 210.2
    Rate temperature : 105°C
    Rate voltage : 300V
    Flame test : FT1,FT2
     CONDUCTOR : Solid
      AWG size : 24 AWG
    Number of strands in each conductor : 7/0.203mm.
    Lay of strands in each conductor : 0.7 inch at least
    Cross section area : 404mil.

     INSULATION :
      Mater ial of insulation : polyvinyl chlor ide(PVC)gray
    Insulation thickness average : 9mil.
    Minimum insulation thickness : 7mil.

     PHYSICAL PROPERTIES : After 7 days air oven at 136°C
      Average tensile strength : 1500 lbs/
    Percent of or iginal : 70% at least
    Average elongation : 200%
    Percent of or iginal : 65% at least

     ELECTRONIC CHARACTERISTICS :
      Spark test : 2500V
    Dielectric strength test : Minimum 2 KV in 1 minute
    Conductor resistance : Maximum 89  /km
    Insulation resistance : Minimum 100 M-km
    Capacity : 31pF/m (G-S-G)
    Inductance : 1.45μH/m
    Character istic Impedance : 118  (G-S-G)
    Propagation delay time : 4 ns/m

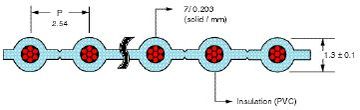

     CONSTRUCTION DRAWING:

    Specification:(N=Number of conductors)
    　

     USAGE :
      Solid : Used for most electronic equipment requiring higher currents such as jumper wires or shor t-distance　　　connections.
    Stranded : Used for most electronic equipment requiring a higher r ated current due to long-distance connection.
    his type of cable may be used with connectors of pitch 2.54.

     CONSTRUCTION TABLE
    Code No.
    Number
    of
    Cores
    Siz e of conductor
    Thic kness
    (mm±0.05)
    Width (mm)
    Allowable error(mm)
    (AWG)
    Composition (solid/mm)
    H24-8
    8
    24
    7/0.203
    1.3
    20.32
    ± 0.30
    H24-9
    9
    24
    7/0.203
    1.3
    22.86
    ± 0.30
    H24-10
    10
    24
    7/0.203
    1.3
    25.40
    ± 0.30
    H24-12
    12
    24
    7/0.203
    1.3
    30.48
    ± 0.30
    H24-13
    13
    24
    7/0.203
    1.3
    33.02
    ± 0.30
    H24-14
    14
    24
    7/0.203
    1.3
    35.56
    ± 0.40
    H24-15
    15
    24
    7/0.203
    1.3
    38.10
    ± 0.40
    H24-16
    16
    24
    7/0.203
    1.3
    40.64
    ± 0.40
    H24-18
    18
    24
    7/0.203
    1.3
    45.72
    ± 0.40
    H24-20
    20
    24
    7/0.203
    1.3
    50.80
    ± 0.40
    H24-22
    22
    24
    7/0.203
    1.3
    55.88
    ± 0.40
    H24-24
    24
    24
    7/0.203
    1.3
    60.96
    ± 0.40
    H24-26
    26
    24
    7/0.203
    1.3
    66.04
    ± 0.40
    H24-28
    28
    24
    7/0.203
    1.3
    71.12
    ± 0.50
    H24-30
    30
    24
    7/0.203
    1.3
    76.20
    ± 0.50
    H24-32
    32
    24
    7/0.203
    1.3
    81.28
    ± 0.50
    H24-34
    34
    24
    7/0.203
    1.3
    86.36
    ± 0.50
    H24-36
    36
    24
    7/0.203
    1.3
    91.44
    ± 0.50
    H24-38
    38
    24
    7/0.203
    1.3
    96.52
    ± 0.50
    H24-40
    40
    24
    7/0.203
    1.3
    101.60
    ± 0.50


    keyword: HF,H24, Jumper Cable, 電子排線, UL2651, CSA C22.2,
