    HF-H26 Jumper Cable 電子排線 26 AWG 2.54Pitch, UL STYLE:2651 CSA Standard : C22.2 No. 210.2 105°C 300V
    看原圖
    		HF-H26



    商品編號: HF-H26

    HF-H26 Jumper Cable 電子排線 26 AWG 2.54Pitch, UL STYLE:2651 CSA Standard : C22.2 No. 210.2 105°C 300V

    : Used for most electronic equipment requir ing higher currents such as jumper wires orshor t-distance connections

    UL&CSA GRADE :
      UL STYLE: 2651
    Rate temperature : 105°C
    Rate voltage : 300V
    Flame test : VW-1
      CSA Standard : C22.2 No. 210.2
    Rate temperature : 105°C
    Rate voltage : 300V
    Flame test : FT1,FT2
     CONDUCTOR : Solid
      AWG size : 26AWG
    Number of strands in each conductor : 7/0.16mm.
    Lay of strands in each conductor : 0.6 inch at least
    Cross section area : 253mil.

     INSULATION :
      Mater ial of insulation : polyvinyl chlor ide(PVC)gray
    Insulation thickness average : 9mil.
    Minimum insulation thickness : 7mil.

     PHYSICAL PROPERTIES : After 7 days air oven at 136°C
      Average tensile strength : 1500 lbs/
    Percent of or iginal : 70% at least
    Average elongation : 200%
    Percent of or iginal : 65% at least

     ELECTRONIC CHARACTERISTICS :
      Spark test : 2500V
    Dielectric strength test : Minimum 2 KV in 1 minute
    Conductor resistance : Maximum 143 /km
    Insulation resistance : Minimum 100 M-km
    Capacity : 24pF/m (G-S-G)
    Inductance : 1.4μH/m
    Character istic Impedance : 145 (G-S-G)
    Propagation delay time : 3ns/m

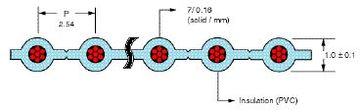

     CONSTRUCTION DRAWING:

    Specification:(N=Number of conductors)
    　

     USAGE :
      Solid : Used for most electronic equipment requir ing higher currents such as jumper wires orshor t-distance connections.

     CONSTRUCTION TABLE
    Code No.
    Number
    of
    Cores
    Siz e of conductor
    Thic kness
    (mm±0.05)
    Width (mm)
    Allowable error(mm)
    (AWG)
    Composition (solid/mm)
    H26-2
    2
    26
    7/0.16
    1.0
    5.08
    ± 0.30
    H26-3
    3
    26
    7/0.16
    1.0
    7.62
    ± 0.30
    H26-4
    4
    26
    7/0.16
    1.0
    10.16
    ± 0.30
    H26-5
    5
    26
    7/0.16
    1.0
    12.70
    ± 0.30
    H26-6
    6
    26
    7/0.16
    1.0
    15.24
    0.30
    H26-7
    7
    26
    7/0.16
    1.0
    17.78
    ± 0.30
    H26-8
    8
    26
    7/0.16
    1.0
    20.32
    ± 0.30
    H26-9
    9
    26
    7/0.16
    1.0
    22.86
    ± 0.30
    H26-10
    10
    26
    7/0.16
    1.0
    25.40
    ± 0.30
    H26-12
    12
    26
    7/0.16
    1.0
    30.48
    ± 0.30
    H26-13
    13
    26
    7/0.16
    1.0
    33.02
    ± 0.30
    H26-14
    14
    26
    7/0.16
    1.0
    35.56
    ± 0.30
    H26-15
    15
    26
    7/0.16
    1.0
    38.10
    ± 0.30
    H26-16
    16
    26
    7/0.16
    1.0
    40.64
    ± 0.40
    H26-18
    18
    26
    7/0.16
    1.0
    45.72
    ± 0.40
    H26-20
    20
    26
    7/0.16
    1.0
    50.80
    ± 0.40
    H26-22
    22
    26
    7/0.16
    1.0
    55.88
    ± 0.40
    H26-24
    24
    26
    7/0.16
    1.0
    60.96
    ± 0.40
    H26-30
    30
    26
    7/0.16
    1.0
    76.20
    ± 0.50
    H26-40
    40
    26
    7/0.16
    1.0
    101.60
    ± 0.50
    H26-42
    42
    26
    7/0.16
    1.0
    106.68
    ± 0.50
