    HF-HJS Jumper Cable 電子排線 26 AWG UL STYLE:2651 CSA Standard : C22.2 No. 210.2 105°C 300V
    看原圖
    		HF-HJS



    商品編號: HF-HJS

    HF-HJS Jumper Cable 電子排線 26 AWG UL STYLE:2651 CSA Standard : C22.2 No. 210.2 105°C 300V

    Solid : Used for most electronic equipment requir ing higher currents such as jumper wires orshor t-distance connections.

    UL&CSA GRADE :
    　 UL STYLE: 2651
    Rate temperature : 105°C
    Rate voltage : 300V
    Flame test : VW-1
    　 CSA Standard : C22.2 No. 210.2
    Rate temperature : 105°C
    Rate voltage : 300V
    Flame test : FT1,FT2
     CONDUCTOR : Solid 　
    　 AWG size : 26AWG
    Number of strands in each conductor : 7/0.16mm.
    Lay of strands in each conductor : 0.6 inch at least
    Cross section area : 253mil.
      　
     INSULATION :
    　 Mater ial of insulation : polyvinyl chlor ide(PVC)gray
    Insulation thickness average : 9mil.
    Minimum insulation thickness : 7mil.
    　
     PHYSICAL PROPERTIES : After 7 days air oven at 136°C
    　 Average tensile strength : 1500 lbs/
    Percent of or iginal : 70% at least
    Average elongation : 200%
    Percent of or iginal : 65% at least
    　 　
     ELECTRONIC CHARACTERISTICS :
    　 Spark test : 2500V
    Dielectric strength test : Minimum 2 KV in 1 minute
    Conductor resistance : Maximum 143 /km
    Insulation resistance : Minimum 100 M-km
    Capacity : 32pF/m (G-S-G)
    Inductance : 1.45μH/m
    Character istic Impedance : 123 (G-S-G)
    Propagation delay time : 3.7ns/m

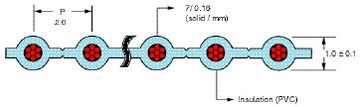

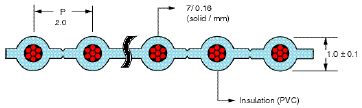

     CONSTRUCTION DRAWING:
    　
    Specification:(N=Number of conductors)
    　
    　 　
     USAGE :
    　 Solid : Used for most electronic equipment requir ing higher currents such as jumper wires orshor t-distance connections.

     SAMPLE :
    　
    　
     CONSTRUCTION TABLE
    Code No.
    Number
    of
    Cores
    Siz e of conductor
    Thic kness
    (mm±0.05)
    Width (mm)
    Allowable error(mm)
    (AWG)
    Composition (solid/mm)
    HJS-8
    8
    26
    7/0.16
    1.0
    16
    ± 0.30
    HJS-9
    9
    26
    7/0.16
    1.0
    18
    ± 0.30
    HJS-10
    10
    26
    7/0.16
    1.0
    20
    ± 0.30
    HJS-11
    11
    26
    7/0.16
    1.0
    24
    ± 0.30
    HJS-12
    12
    26
    7/0.16
    1.0
    26
    0.30
    HJS-13
    13
    26
    7/0.16
    1.0
    28
    ± 0.30
    HJS-15
    15
    26
    7/0.16
    1.0
    30
    ± 0.30
    HJS-16
    16
    26
    7/0.16
    1.0
    32
    ± 0.30
    HJS-18
    18
    26
    7/0.16
    1.0
    36
    ± 0.30
    HJS-20
    20
    26
    7/0.16
    1.0
    40
    ± 0.40
    HJS-22
    22
    26
    7/0.16
    1.0
    44
    ± 0.40
    HJS-24
    24
    26
    7/0.16
    1.0
    48
    ± 0.40
    HJS-26
    26
    26
    7/0.16
    1.0
    52
    ± 0.40
    HJS-28
    28
    26
    7/0.16
    1.0
    56
    ± 0.40
    HJS-30
    30
    26
    7/0.16
    1.0
    60
    ± 0.40
    HJS-32
    32
    26
    7/0.16
    1.0
    64
    ± 0.40
    HJS-34
    34
    26
    7/0.16
    1.0
    68
    ± 0.40
    HJS-36
    36
    26
    7/0.16
    1.0
    72
    ± 0.50
    HJS-38
    38
    26
    7/0.16
    1.0
    76
    ± 0.50
    HJS-40
    40
    26
    7/0.16
    1.0
    80
    ± 0.50
