    ELITE-UL-SVE Awg18 x (2C, 3C) 300V 105℃ HF (LSOH) Power Supply Cord (UL無隔離或鋁箔銅網隔離低煙無鹵電源線)
    看原圖
    		ELITE-ULSVE

    商品編號: ELITE-ULSVE

    ELITE-UL-SVE Awg18 x (2C, 3C) 300V 105℃ HF (LSOH) Power Supply Cord (UL無隔離或鋁箔銅網隔離低煙無鹵電源線)

    UnShielded Type : =For light duty portable tools, mixers or vacuum cleaner Shielded Type : =For Power Supply cord of computers to eliminate EMI and RFI



    Unshielded Type :

    = Conductor: Stranded Bare Copper

    = Insulation:Color Coded TPE

    = Wrap:paper tape with filler

    = Jacket:Color Coded TPE

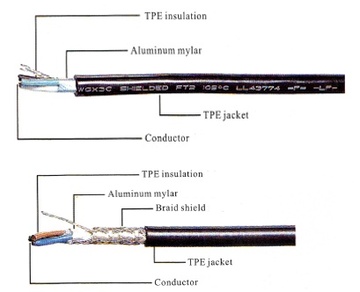

    Shielded Type :

    = Conductor: Stranded Bare Copper

    = Insulation:Color Coded TPE

    = Shield: Aluminum/Mylar foil only or With Overall braid of bare copper

    = Jacket:Color Coded TPE



    UnShielded Type :

    =Rated  Temperature: 105℃

    =Voltage Rating:300Volt

    =LSOH Wire&Cable halogen(CI,F,Br,I,At)<50ppm

    =Pass UL VW-1 vertical flame test

    Shielded Type :

    =Rated  Temperature: 105℃

    =Voltage Rating:300Volt

    =LSOH Wire&Cable halogen(CI,F,Br,I,At)<50ppm

    =Pass UL VW-1 vertical flame test


    UnShielded Type :

    =For light duty portable tools, mixers or vacuum cleaner

    Shielded Type :

    =For Power Supply cord of computers to eliminate EMI and RFI


    UL Style ＆ CSA Type

    Conductor

    No.of cores

    Braid Shield(mm)

     Insulation Thickness(mm)

    Jacket Thickness(mm)

    Overall Diameter(mm)

    Standard Put-Up

     AWG

    NO./mm

    Ft/Coil

    M/Coil

    SVE(Unshielded)

    18

    41/0.160

    2

    -

    0.38

    0.76

    5.90±0.01

    500

    152

    18

    41/0.160

    3

    -

    6.30±0.01

    500

    152

    SVE Al-Mylar Shielded

    18

    41/0.160

    2

    -

     0.38

    0.76

    5.90±0.01

    500

    152

    18

    41/0.160

    3

    -

    0.38

    0.76

    6.40±0.01

    500

    152

    SVE Copper Wire Braid Shielded

    18

    41/0.160

    3

    16/9/0.12

     0.38

    0.76

    7.20±0.15

    500

    152
