    首頁 > > UL-1028/HooK-Up/Wire

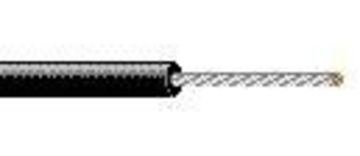

    UL1028 Hook-Up Wire 600V 105°C Awg 8 PVC耐高溫電子線
    看原圖
    		U2808

    商品編號: U2808

    UL1028, UL1032, Hook-Up Wire 600V 105°C Awg 8 PVC耐高溫電子線
    UL1028/1032    Hook-Up Wire

    Characteristics: Description:
    Rated temperature: UL 1028 - 105°C   Conductor: Stranded tinned copper
                                 UL1032 - 90°C   Insulation: Color coded PVC
    Voltage Ration:     UL 1028 -600Volt Construction:
                                  UL1032 - 1000Volt (VDC)
    Passes UL VW-1 vertical flame test
    Uniform thickness of wire to ensure easy stripping and  cutting
    Resistant to acids, oil, alkalis, moisture and fungus.
    Applications:
       For internal wiring of appliances

     UL Style
            &
    CSAType
             Conductor

    Insulation
    Thickness
      Overall
    Diameter
    		　

        Standard Put-up


    Conductor
    Resistance
    at 20
     AWG No./mm      mm     mm Ft/coil M/coil ohm/Kft
    UL 1028
     CSA IA

     22

    		 17/0.160 1.19 3.15±0.10 1000 305 16.70
    20 21/0.180 3.35±0.10 1000 305 10.50
    18 34/0.180 3.60±0.10 1000 305 6.64
    16 26/0.254 3.90±0.10 1000 305 4.18
    14 41/0.254 4.30±0.10 500 152 2.62
    12 65/0.254 4.75±0.10 500 152 1.65
    10 105/0.254 5.70±0.15 500 152 1.04
    8 119/0.300 6.65±0.15 500 152 0.66
    UL 1032
     CSA IA
    		24 11/0.160 0.78 2.20±0.10 2000 610 29.30
    22 17/0.160 2.40±0.10 2000 610 16.70
    20 21/0.180 2.50±0.10 2000 610 10.50
    18 34/0.180 2.70±0.10 2000 610 6.64
