    首頁 > > UL-Shielding Hook-Up Wire 隔離電子線

    UL-1533 Shielding Hook-Up Wire Awg(30 to 20) 1芯隔離電子線
    看原圖
    		代碼 UL-1533

    商品編號: UL-1533

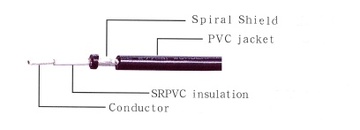

    UL-1533 Shielding Hook-Up Wire Awg(30 to 20) 1芯隔離電子線


    =Conductor: Solid  or Stranded Tinned Copper

    =Insulation: Semi-rigid PVC(SR PVC)

    =Shield:Spiral wrap tinned copper

    =Jacket: Color coded PVC



    =Rated Temperature:80℃

    =Voltage Rating: not specified

    =Pass UL VW-1SC vertical flame test

    =Use of spiral shield allows for fast and simple termination

    =For recording studios, sound systems and electronic circuits


    UL Style
    ＆
    CSA Type

    Conductor AWG

    Insulation Thickness(mm)

    Jacket
    Thickness(mm)

    Overall Diameter(mm)

    Standard Put-up

    AWG

    No./mm

     Ft/Coil

    M/Coil

    UL 1533
    CSA IA
    (1 Core)

    30

    7/0.102

    0.25

    0.35

    1.70±0.10

    2000

    610

    28

    7/0.127

    0.25

    0.35

    1.80±0.10

    2000

    610

    26

    7/0.160

    0.25

    0.35

    2.00±0.10

    2000

    610

    24

    7/0.200

    0.25

    0.40

    2.20±0.10

    2000

    610

    22

    17/0.160

    0.25

    0.40

    2.40±0.10

    2000

    610

    20

    26/0.160

    0.25

    0.40

    2.60±0.10

    2000

    610
