    ALPHA-CST Series Copper EMI Shielding Tape -40°C to +205°C 高电导性胶合剂衬背(防電暈電磁波干擾)
    看原圖
    		ALPHA-CST



    商品編號: ALPHA-CST

    ALPHA-CST Series Copper EMI Shielding Tape -40°C to +205°C 高电导性胶合剂衬背(防電暈電磁波干擾)

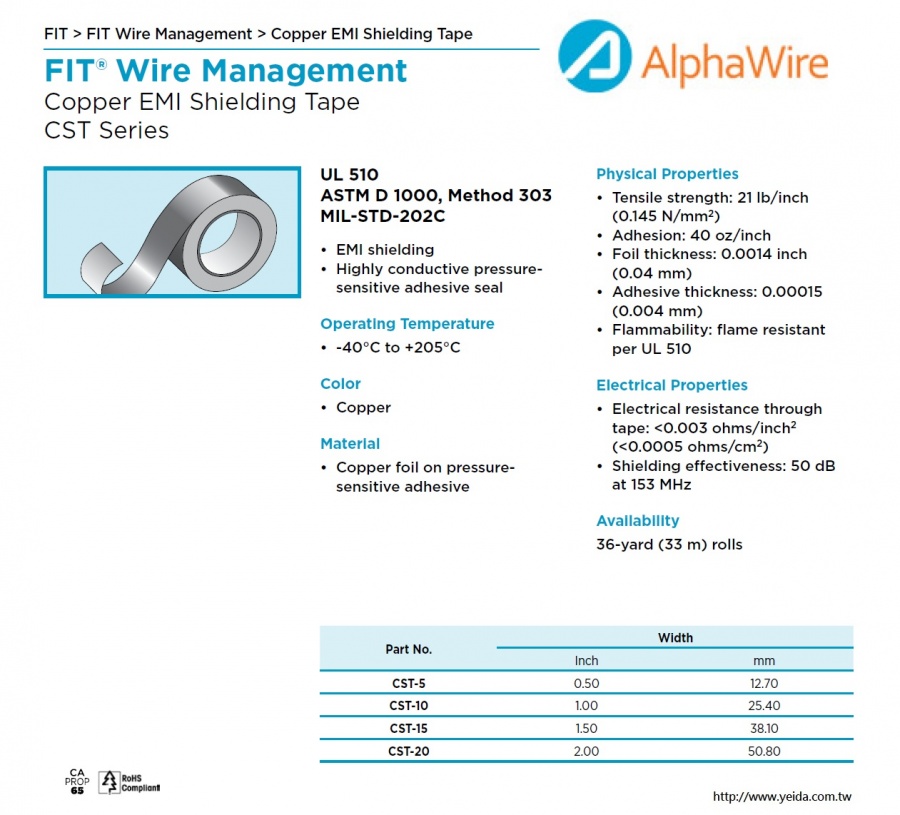

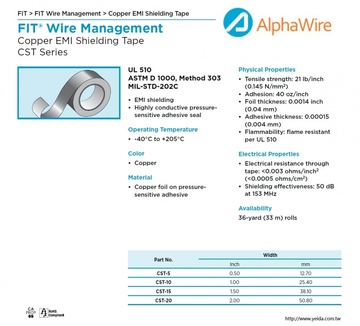

    FIT® Wire Management
    Copper EMI Shielding Tape


    CST Series
    UL 510
    ASTM D 1000, Method 303
    MIL-STD-202C
    • EMI shielding
    • Highly conductive pressuresensitive adhesive seal
    Operating Temperature
    • -40°C to +205°C
    Color
    • Copper
    Material
    • Copper foil on pressuresensitive adhesive

    Physical Properties
    • Tensile strength: 21 lb/inch(0.145 N/mm2)
    • Adhesion: 40 oz/inch
    • Foil thickness: 0.0014 inch(0.04 mm)
    • Adhesive thickness: 0.00015(0.004 mm)
    • Flammability: flame resistant per UL 510
    Electrical Properties
    • Electrical resistance through tape: <0.003 ohms/inch2(<0.0005 ohms/cm2)
    • Shielding effectiveness: 50 dB
    at 153 MHz
    Availability
    36-yard (33 m) rolls

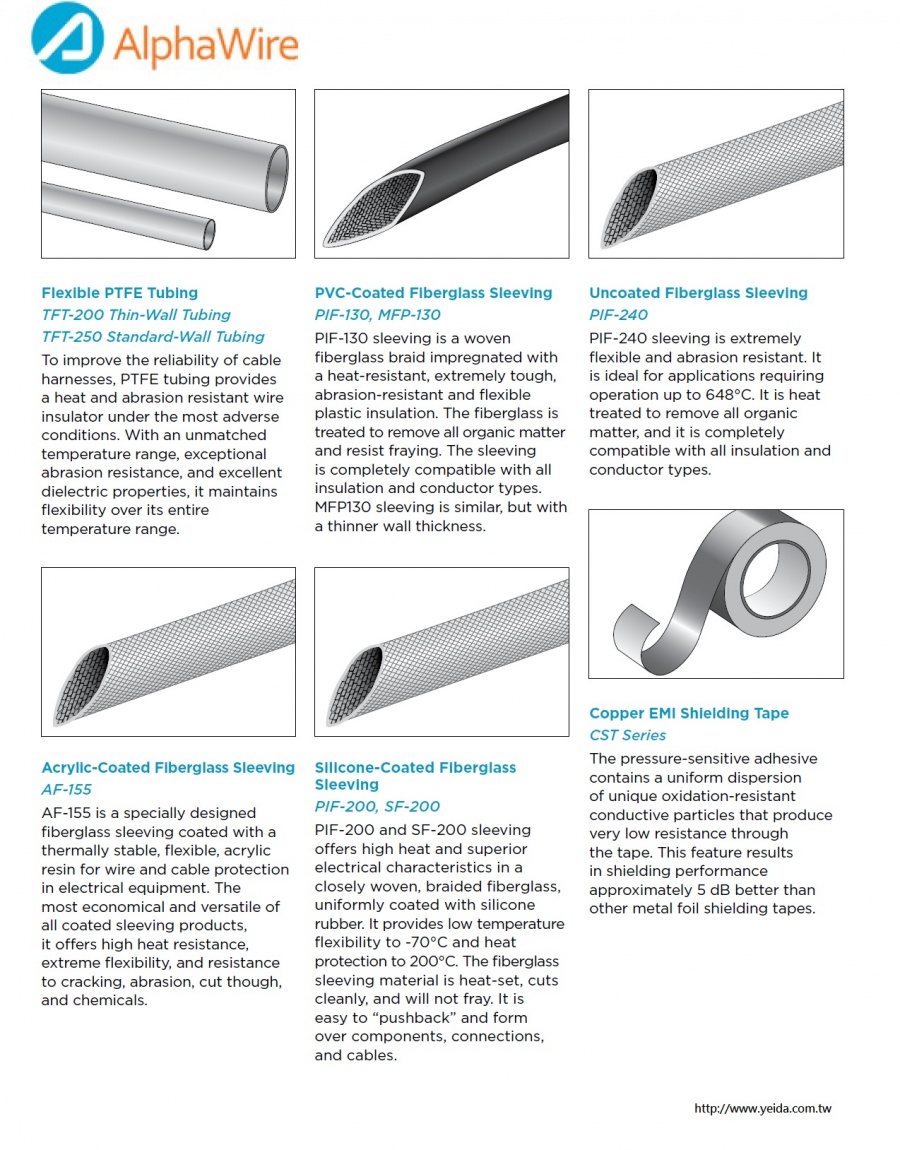

    Copper EMI Shielding Tape
    CST Series


    The pressure-sensitive adhesive
    contains a uniform dispersion
    of unique oxidation-resistant
    conductive particles that produce
    very low resistance through
    the tape. This feature results
    in shielding performance
    approximately 5 dB better than
    other metal foil shielding tapes.
