    ALPHA-A-A-52080 -55° C to +121°C Lacing Tape 防热和抗腐蚀阻燃和机械磨损接合带
    看原圖
    		ALPHA-A-A-52080



    商品編號: ALPHA-A-A-52080

    ALPHA-A-A-52080 -55° C to +121°C Lacing Tape 防热和抗腐蚀阻燃和机械磨损接合带


    A-A-52080 Type 1
    • High tensile strength
    • Good chemical resistance
    • Excellent abrasion resistance
    • Excellent knot retention

    A-A-52080 (MIL-T-43435B Type I)
    • Flat braid made from hightenacity
    continuous nylon yarn
    Operating temperature:
    • -55° C to +121°C
    Elongation:
    • 40% max
    Finish weight (impregnated % of
    material by weight)
    • Finish A (natural)
    • Finish B (wax): 15% – 32%
    • Finish C (synthetic rubber/
    elastomer): 7% – 17%
    • Finish E (synthetic resin/vinyl):
    15% – 30%

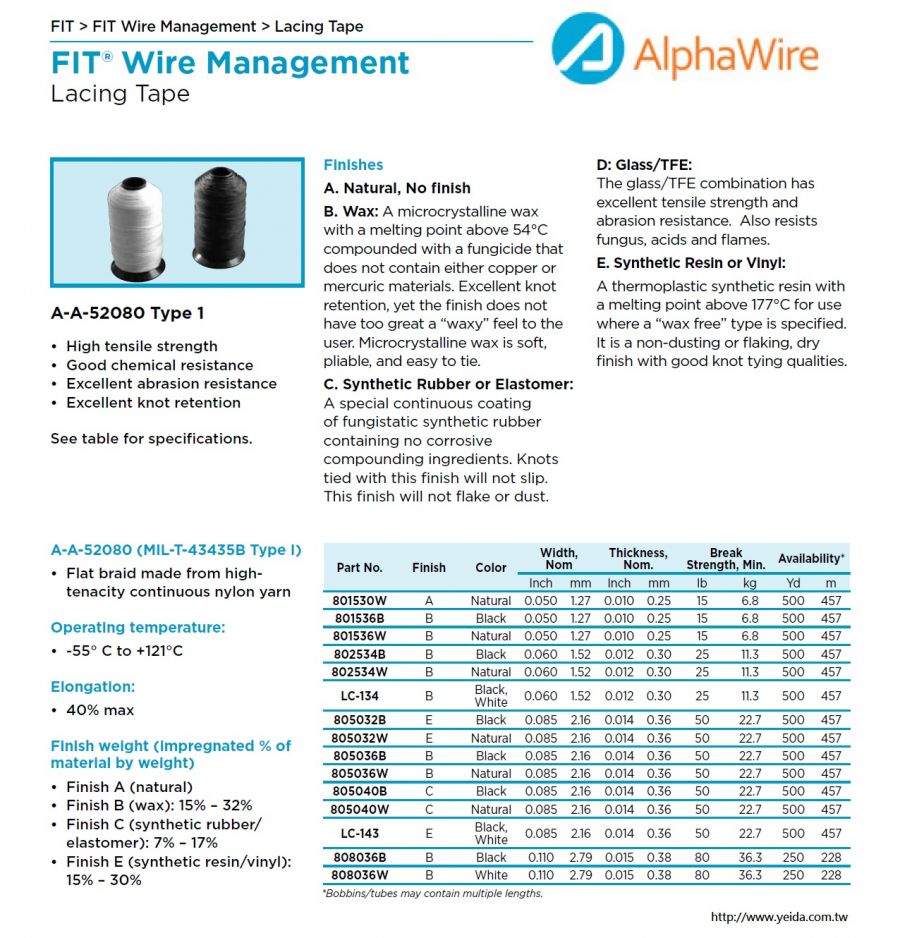

    FIT® Wire Management
    Lacing Tape


    A-A-52080 Type 1
    • High tensile strength
    • Good chemical resistance
    • Excellent abrasion resistance
    • Excellent knot retention
    See table for specifications.
    Finishes
    A    . Natural, No finish
    B. Wax: A microcrystalline wax with a melting point above 54°C
    compounded with a fungicide that does not contain either copper or
    mercuric materials. Excellent knot retention, yet the finish does not
    have too great a “waxy” feel to the user. Microcrystalline wax is soft,
    pliable, and easy to tie.
    C. Synthetic Rubber or Elastomer:  A special continuous coating
    of fungistatic synthetic rubber containing no corrosive
    compounding ingredients. Knots tied with this finish will not slip.
    This finish will not flake or dust.
    D: Glass/TFE:
    The glass/TFE combination has excellent tensile strength and
    abrasion resistance. Also resists fungus, acids and flames.
    E. Synthetic Resin or Vinyl:
    A thermoplastic synthetic resin with a melting point above 177°C for use
    where a “wax free” type is specified. It is a non-dusting or flaking, dry
    finish with good knot tying qualities.

    A-A-52080 (MIL-T-43435B Type I)
    • Flat braid made from hightenacity continuous nylon yarn
    Operating temperature:
    • -55° C to +121°C
    Elongation:
    • 40% max Finish weight (impregnated % of material by weight)
    • Finish A (natural)
    • Finish B (wax): 15% – 32%
    • Finish C (synthetic rubber/ elastomer): 7% – 17%
    • Finish E (synthetic resin/vinyl): 15% – 30%



    Part # Material Coating Width Colors Applicable Specifications
    801530W Nylon None 0.05 Natural A-A-52808-A-5, FED-STD-191, Type 1
    801536B Nylon Wax 0.05 Black A-A-52080-B-5, FED-STD-191, Type 1
    801536W Nylon Wax 0.05 Natural A-A-52080-B-5, FED-STD-191, Type 1
    801566B Polyester Synthetic Rubber or Elastomer 0.05 Black A-A-52081-C-5, FED-STD-191, Type 1
    802534B Nylon Wax 0.06 Black A-A-52080-B-4, FED-STD-191, Type 1
    802534W Nylon Wax 0.06 Natural A-A-52080-B-4, FED-STD-191, Type 1
    802566B Polyester Synthetic Rubber or Elastomer 0.06 Black A-A-52081-C-4, FED-STD-191, Type II
    803215B Twisted Nylon Cord Wax 0.085 Black FED-STD-191, MIL-T-713EB, Type P
    803215W Twisted Nylon Cord Wax 0.085 Natural FED-STD-191, MIL-T-713EB, Type P
    803554 Aramid Synthetic Rubber or Elastomer 0.075 Natural A-A-52084-C-3, FED-STD-191, Type V
    804812W Twisted Nylon Cord None 0.11 Natural FED-STD-191, MIL-T-713EB, Type P
    804814B Twisted Nylon Cord Wax 0.11 Black FED-STD-191, MIL-T-713EB, Type P
    804814W Twisted Nylon Cord Wax 0.11 Natural FED-STD-191, MIL-T-713EB, Type P
    805032B Nylon Vinyl or Synthetic Resin 0.11 Black A-A-52080-E-2, FED-STD-191, Type 1
    805032W Nylon Vinyl or Synthetic Resin 0.11 Natural A-A-52080-E-2, FED-STD-191, Type 1
    805036B Nylon Wax 0.085 Black A-A-52080-B-3, FED-STD-191, Type 1
    805036W Nylon Wax 0.085 Natural A-A-52080-B-3, FED-STD-191, Type 1
    805040B Nylon Synthetic Rubber or Elastomer 0.085 Black A-A-52080-C-3, FED-STD-191, Type 1
    805040W Nylon Synthetic Rubber or Elastomer 0.085 Natural A-A-52080-C-3, FED-STD-191, Type 1
    805058B Polyester Vinyl or Synthetic Resin 0.085 Black A-A-52081-E-2, FED-STD-191, Type II
