    首頁 > > ALPHA-Lacing Tape 接合带

    ALPHA-A-A-52081 A-A-52083 -73°C to +177°C Synthetic Rubber or Elastomer Lacing Tape 防热和抗腐蚀阻燃和机械磨损接合带
    看原圖
    		ALPHA-A-A-52081



    商品編號: ALPHA-A-A-52081

    ALPHA-A-A-52081 A-A-52083 -73°C to +177°C Synthetic Rubber or Elastomer Lacing Tape 防热和抗腐蚀阻燃和机械磨损接合带

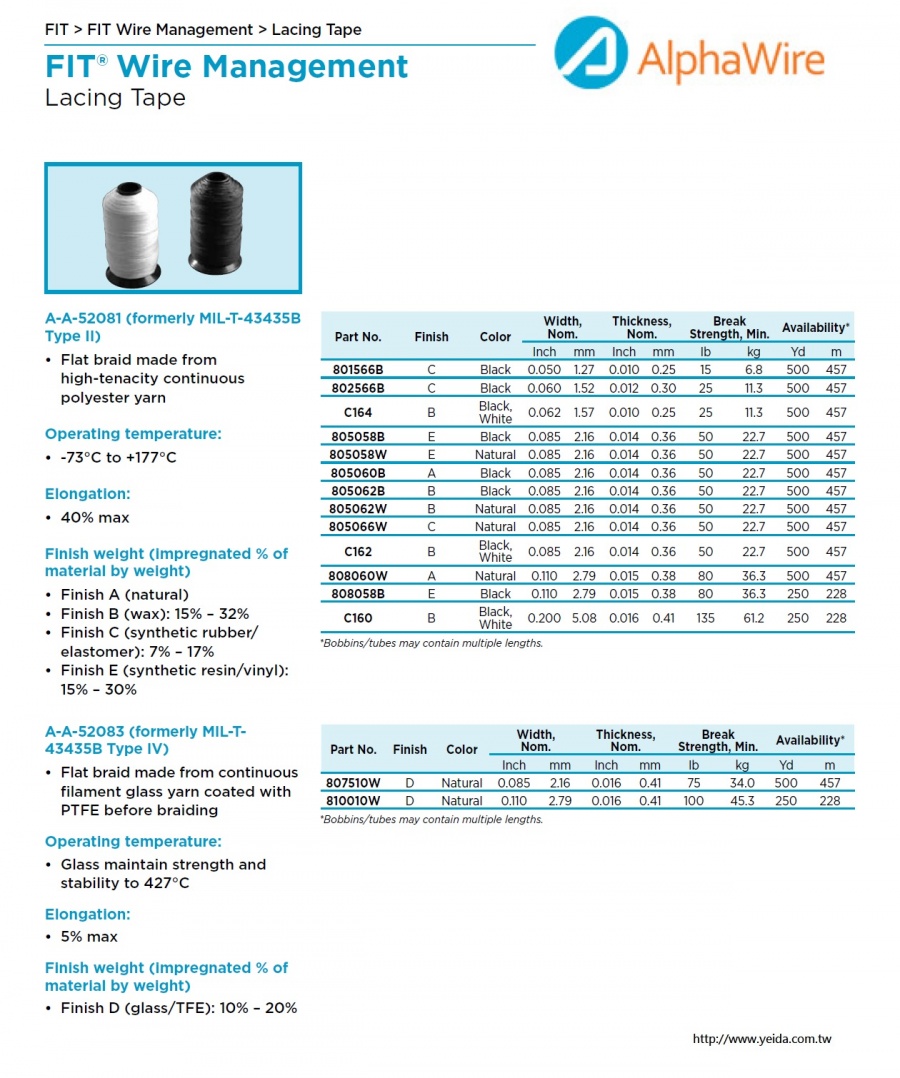

    FIT® Wire Management
    Lacing Tape


    A-A-52081 (formerly MIL-T-43435B
    Type II)
    • Flat braid made from
    high-tenacity continuous
    polyester yarn
    Operating temperature:
    • -73°C to +177°C
    Elongation:
    • 40% max
    Finish weight (impregnated % of
    material by weight)
    • Finish A (natural)
    • Finish B (wax): 15% – 32%
    • Finish C (synthetic rubber/
    elastomer): 7% – 17%
    • Finish E (synthetic resin/vinyl):
    15% – 30%



    ★★★★商品說明★★★★


    A-A-52083 (formerly MIL-T-43435B Type IV)


    • Flat braid made from continuous
    filament glass yarn coated with
    PTFE before braiding
    Operating temperature:
    • Glass maintain strength and
    stability to 427°C
    Elongation:
    • 5% max
    Finish weight (impregnated % of
    material by weight)
    • Finish D (glass/TFE): 10% – 20%

    Part # Material Coating Width Colors Applicable Specifications
    801530W Nylon None 0.05 Natural A-A-52808-A-5, FED-STD-191, Type 1
    801536B Nylon Wax 0.05 Black A-A-52080-B-5, FED-STD-191, Type 1
    801536W Nylon Wax 0.05 Natural A-A-52080-B-5, FED-STD-191, Type 1
    801566B Polyester Synthetic Rubber or Elastomer 0.05 Black A-A-52081-C-5, FED-STD-191, Type 1
    802534B Nylon Wax 0.06 Black A-A-52080-B-4, FED-STD-191, Type 1
    802534W Nylon Wax 0.06 Natural A-A-52080-B-4, FED-STD-191, Type 1
    802566B Polyester Synthetic Rubber or Elastomer 0.06 Black A-A-52081-C-4, FED-STD-191, Type II
    803215B Twisted Nylon Cord Wax 0.085 Black FED-STD-191, MIL-T-713EB, Type P
    803215W Twisted Nylon Cord Wax 0.085 Natural FED-STD-191, MIL-T-713EB, Type P
    803554 Aramid Synthetic Rubber or Elastomer 0.075 Natural A-A-52084-C-3, FED-STD-191, Type V
    804812W Twisted Nylon Cord None 0.11 Natural FED-STD-191, MIL-T-713EB, Type P
    804814B Twisted Nylon Cord Wax 0.11 Black FED-STD-191, MIL-T-713EB, Type P
    804814W Twisted Nylon Cord Wax 0.11 Natural FED-STD-191, MIL-T-713EB, Type P
    805032B Nylon Vinyl or Synthetic Resin 0.11 Black A-A-52080-E-2, FED-STD-191, Type 1
    805032W Nylon Vinyl or Synthetic Resin 0.11 Natural A-A-52080-E-2, FED-STD-191, Type 1
    805036B Nylon Wax 0.085 Black A-A-52080-B-3, FED-STD-191, Type 1
    805036W Nylon Wax 0.085 Natural A-A-52080-B-3, FED-STD-191, Type 1
    805040B Nylon Synthetic Rubber or Elastomer 0.085 Black A-A-52080-C-3, FED-STD-191, Type 1
    805040W Nylon Synthetic Rubber or Elastomer 0.085 Natural A-A-52080-C-3, FED-STD-191, Type 1
    805058B Polyester Vinyl or Synthetic Resin 0.085 Black A-A-52081-E-2, FED-STD-191, Type II
