    ALPHA-AF-155 -30 to 155 °C Fiberglass Acrylic Sleeving防热和抗腐蚀阻燃和机械磨损管材
    看原圖
    		ALPHA-AF-155



    商品編號: ALPHA-AF-155

    ALPHA-AF-155 -30 to 155 °C Fiberglass Acrylic Sleeving防热和抗腐蚀阻燃和机械磨损管材

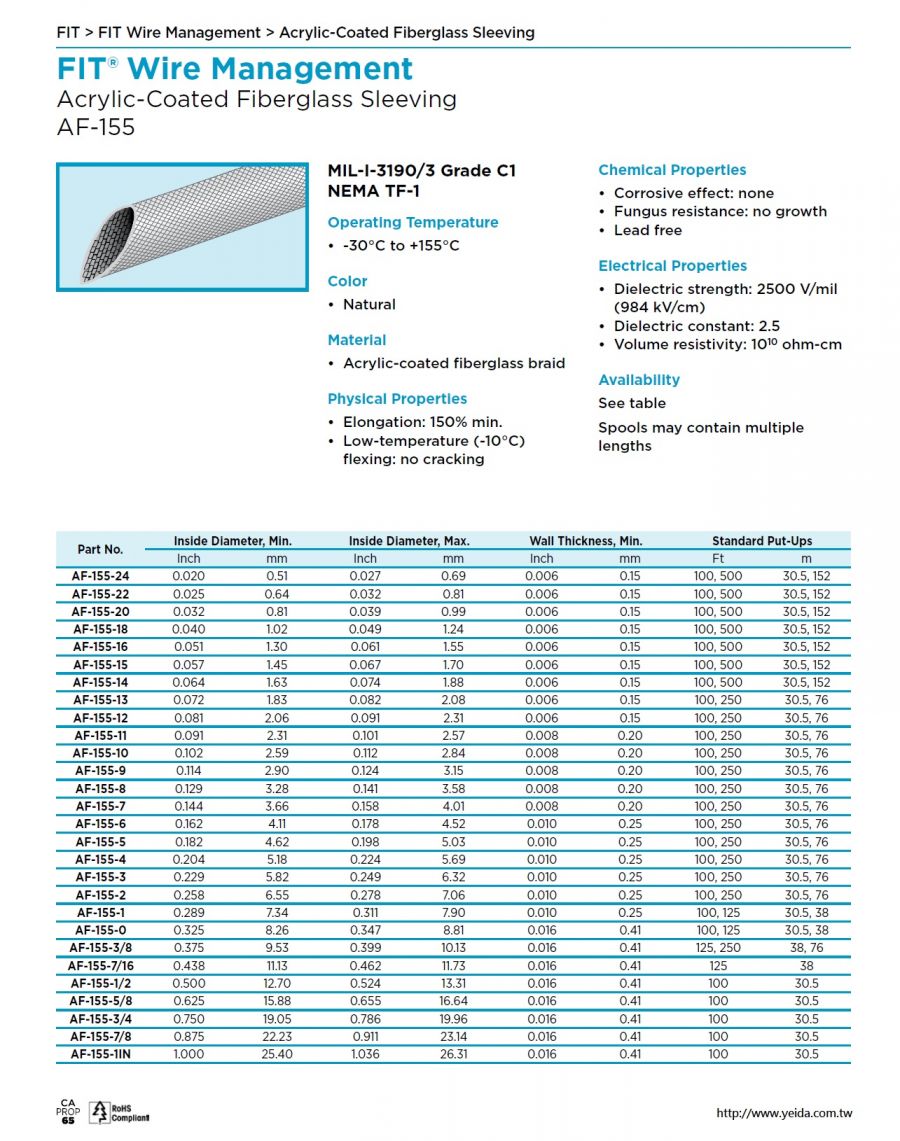

    FIT® Wire Management
    Acrylic-Coated Fiberglass Sleeving


    AF-155
    MIL-I-3190/3 Grade C1
    NEMA TF-1
    Operating Temperature
    • -30°C to +155°C
    Color
    • Natural
    Material
    • Acrylic-coated fiberglass braid Physical Properties
    • Elongation: 150% min.
    • Low-temperature (-10°C) flexing: no cracking
    Chemical Properties
    • Corrosive effect: none
    • Fungus resistance: no growth
    • Lead free
    Electrical Properties
    • Dielectric strength: 2500 V/mil(984 kV/cm)
    • Dielectric constant: 2.5
    • Volume resistivity: 1010 ohm-cm
    Availability
    See table
    Spools may contain multiple
    lengths
    Part No.



    Acrylic-Coated Fiberglass Sleeving
    AF-155

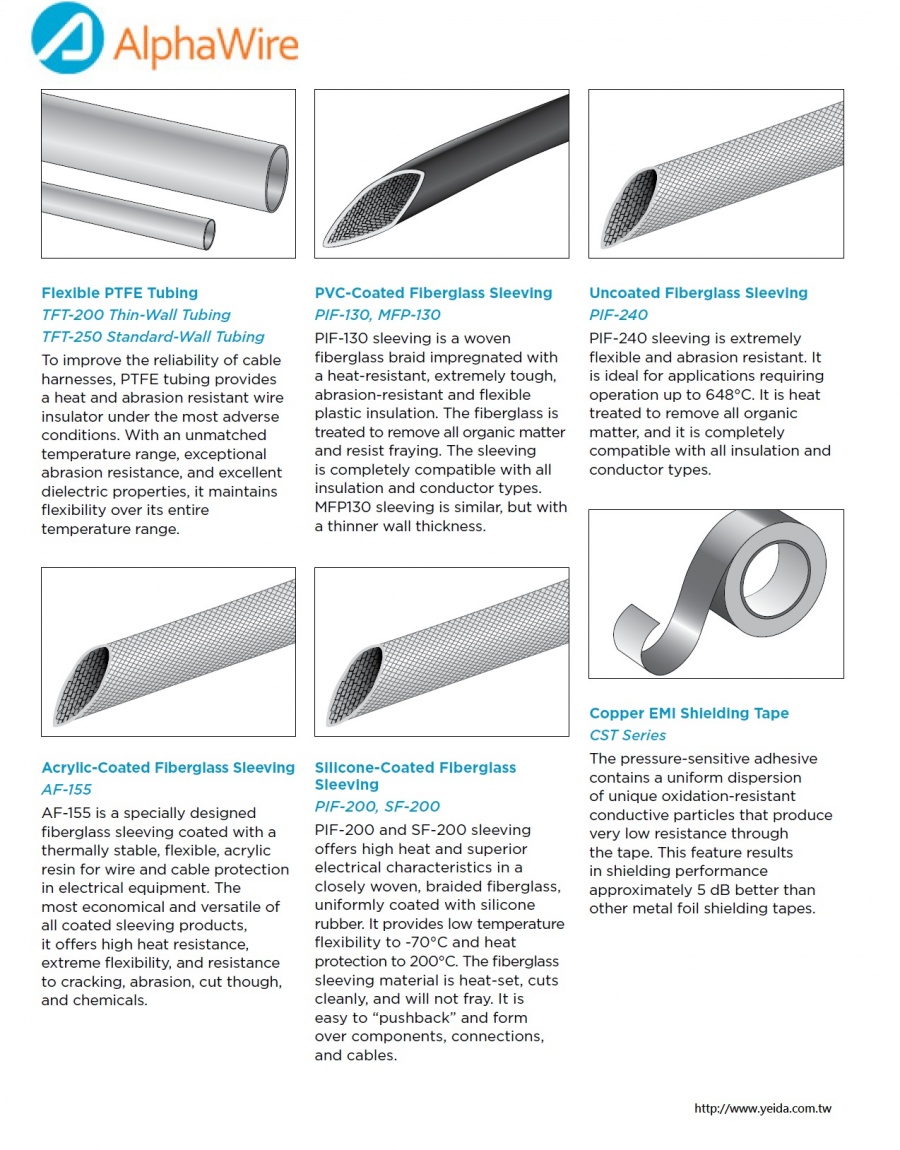

    AF-155 is a specially designed
    fiberglass sleeving coated with a
    thermally stable, flexible, acrylic
    resin for wire and cable protection
    in electrical equipment. The
    most economical and versatile of
    all coated sleeving products,
    it offers high heat resistance,
    extreme flexibility, and resistance
    to cracking, abrasion, cut though,
    and chemicals.
    Part # AWG / Shrink ratio Material C° Voltage #Elements Category Shielding Ratings
    AF1550 n/a fiberglass acrylic -30 to 155 n/a n/a Tubing/Accessories n/a ul af-155a grade a;mil-i-3190_3;nema tf-1;astm d 372;ul 746b;ul 1441
    AF1551 n/a fiberglass acrylic -30 to 155 n/a n/a Tubing/Accessories n/a ul af-155a grade a;mil-i-3190_3;nema tf-1;astm d 372;ul 746b;ul 1441
    AF1551/2 n/a fiberglass acrylic -30 to 155 n/a n/a Tubing/Accessories n/a ul af-155a grade a;mil-i-3190_3;nema tf-1;astm d 372;ul 746b;ul 1441
    AF15510 n/a fiberglass acrylic -30 to 155 n/a n/a Tubing/Accessories n/a ul af-155a grade a;mil-i-3190_3;nema tf-1;astm d 372;ul 746b;ul 1441
    AF15511 n/a fiberglass acrylic -30 to 155 n/a n/a Tubing/Accessories n/a ul af-155a grade a;mil-i-3190_3;nema tf-1;astm d 372;ul 746b;ul 1441
    AF15512 n/a fiberglass acrylic -30 to 155 n/a n/a Tubing/Accessories n/a ul af-155a grade a;mil-i-3190_3;nema tf-1;astm d 372;ul 746b;ul 1441
    AF15513 n/a fiberglass acrylic -30 to 155 n/a n/a Tubing/Accessories n/a ul af-155a grade a;mil-i-3190_3;nema tf-1;astm d 372;ul 746b;ul 1441
    AF15514 n/a fiberglass acrylic -30 to 155 n/a n/a Tubing/Accessories n/a ul af-155a grade a;mil-i-3190_3;nema tf-1;astm d 372;ul 746b;ul 1441
    AF15515 n/a fiberglass acrylic -30 to 155 n/a n/a Tubing/Accessories n/a ul af-155a grade a;mil-i-3190_3;nema tf-1;astm d 372;ul 746b;ul 1441
    AF15516 n/a fiberglass acrylic -30 to 155 n/a n/a Tubing/Accessories n/a ul af-155a grade a;mil-i-3190_3;nema tf-1;astm d 372;ul 746b;ul 1441
    AF15518 n/a fiberglass acrylic -30 to 155 n/a n/a Tubing/Accessories n/a ul af-155a grade a;mil-i-3190_3;nema tf-1;astm d 372;ul 746b;ul 1441
    AF1551IN n/a fiberglass acrylic -30 to 155 n/a n/a Tubing/Accessories n/a ul af-155a grade a;mil-i-3190_3;nema tf-1;astm d 372;ul 746b;ul 1441
    AF1552 n/a fiberglass acrylic -30 to 155 n/a n/a Tubing/Accessories n/a ul af-155a grade a;mil-i-3190_3;nema tf-1;astm d 372;ul 746b;ul 1441
    AF15520 n/a fiberglass acrylic -30 to 155 n/a n/a Tubing/Accessories n/a ul af-155a grade a;mil-i-3190_3;nema tf-1;astm d 372;ul 746b;ul 1441
    AF15522 n/a fiberglass acrylic -30 to 155 n/a n/a Tubing/Accessories n/a ul af-155a grade a;mil-i-3190_3;nema tf-1;astm d 372;ul 746b;ul 1441
    AF15524 n/a fiberglass acrylic -30 to 155 n/a n/a Tubing/Accessories n/a ul af-155a grade a;mil-i-3190_3;nema tf-1;astm d 372;ul 746b;ul 1441
    AF1553 n/a fiberglass acrylic -30 to 155 n/a n/a Tubing/Accessories n/a ul af-155a grade a;mil-i-3190_3;nema tf-1;astm d 372;ul 746b;ul 1441
    AF1553/4 n/a fiberglass acrylic -30 to 155 n/a n/a Tubing/Accessories n/a ul af-155a grade a;mil-i-3190_3;nema tf-1;astm d 372;ul 746b;ul 1441
    AF1553/8 n/a fiberglass acrylic -30 to 155 n/a n/a Tubing/Accessories n/a ul af-155a grade a;mil-i-3190_3;nema tf-1;astm d 372;ul 746b;ul 1441
    AF1554 n/a fiberglass acrylic -30 to 155 n/a n/a Tubing/Accessories n/a ul af-155a grade a;mil-i-3190_3;nema tf-1;astm d 372;ul 746b;ul 1441
    AF1555 n/a fiberglass acrylic -30 to 155 n/a n/a Tubing/Accessories n/a ul af-155a grade a;mil-i-3190_3;nema tf-1;astm d 372;ul 746b;ul 1441
    AF1555/8 n/a fiberglass acrylic -30 to 155 n/a n/a Tubing/Accessories n/a ul af-155a grade a;mil-i-3190_3;nema tf-1;astm d 372;ul 746b;ul 1441
    AF1556 n/a fiberglass acrylic -30 to 155 n/a n/a Tubing/Accessories n/a ul af-155a grade a;mil-i-3190_3;nema tf-1;astm d 372;ul 746b;ul 1441
    AF1557 n/a fiberglass acrylic -30 to 155 n/a n/a Tubing/Accessories n/a ul af-155a grade a;mil-i-3190_3;nema tf-1;astm d 372;ul 746b;ul 1441
    AF1557/16 n/a fiberglass acrylic -30 to 155 n/a n/a Tubing/Accessories n/a ul af-155a grade a;mil-i-3190_3;nema tf-1;astm d 372;ul 746b;ul 1441
    AF1557/8 n/a fiberglass acrylic -30 to 155 n/a n/a Tubing/Accessories n/a ul af-155a grade a;mil-i-3190_3;nema tf-1;astm d 372;ul 746b;ul 1441
    AF1558 n/a fiberglass acrylic -30 to 155 n/a n/a Tubing/Accessories n/a ul af-155a grade a;mil-i-3190_3;nema tf-1;astm d 372;ul 746b;ul 1441
    AF1559 n/a fiberglass acrylic -30 to 155 n/a n/a Tubing/Accessories n/a ul af-155a grade a;mil-i-3190_3;nema tf-1;astm d 372;ul 746b;ul 1441
