    ALPHA-GRP-110, GRP-120 (-30 to 155 °C) Expandable Braided Polyester Sleeving防热和抗腐蚀阻燃和机械磨损套管
    看原圖
    		ALPHA-GRP-110



    商品編號: ALPHA-GRP-110

    ALPHA-GRP-110, GRP-120 (-30 to 155 °C) Expandable Braided Polyester Sleeving防热和抗腐蚀阻燃和机械磨损套管

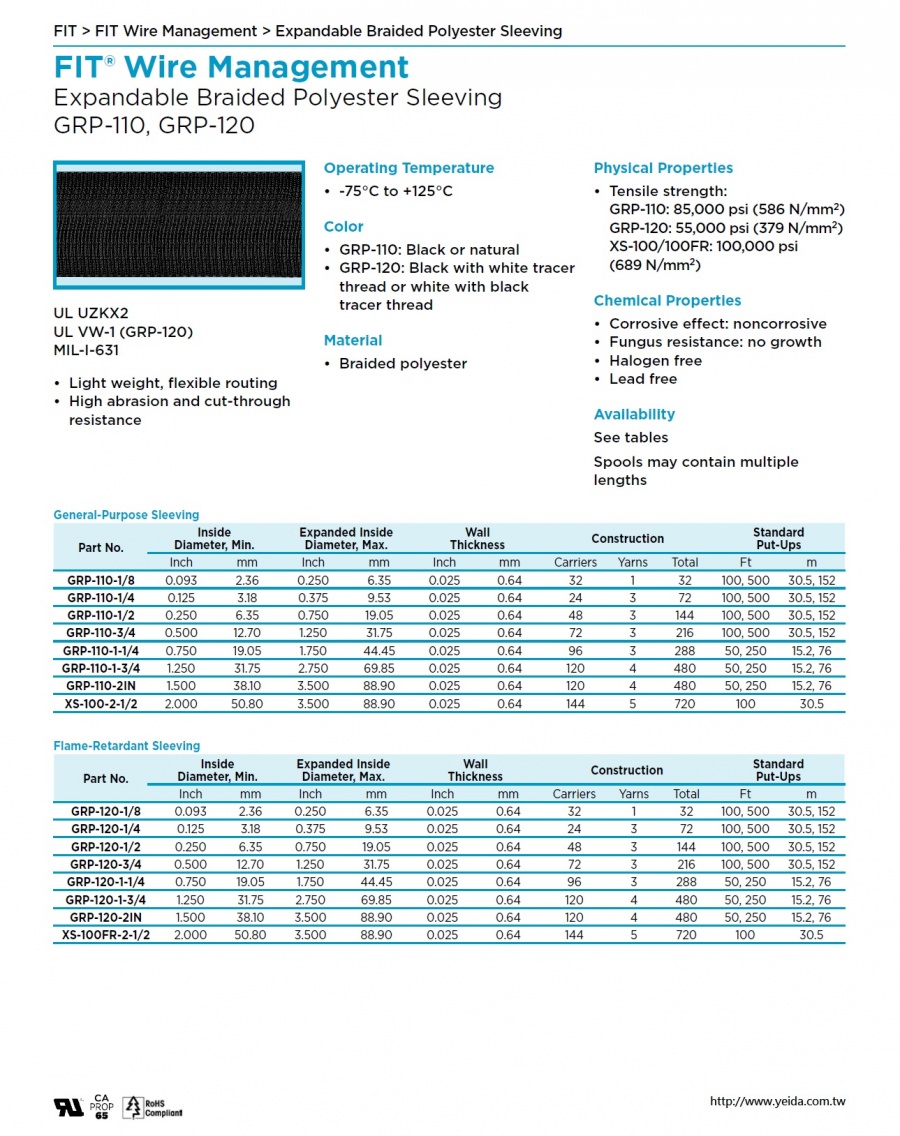

    FIT® Wire Management
    Expandable Braided Polyester Sleeving


    GRP-110, GRP-120
    UL UZKX2
    UL VW-1 (GRP-120)
    MIL-I-631
    • Light weight, flexible routing
    • High abrasion and cut-through resistance
    Operating Temperature
    • -75°C to +125°C
    Color
    • GRP-110: Black or natural
    • GRP-120: Black with white tracer
    thread or white with black tracer thread
    Material
    • Braided polyester
    Physical Properties
    • Tensile strength:
    GRP-110: 85,000 psi (586 N/mm2)
    GRP-120: 55,000 psi (379 N/mm2)
    XS-100/100FR: 100,000 psi (689 N/mm2)
    Chemical Properties
    • Corrosive effect: noncorrosive
    • Fungus resistance: no growth
    • Halogen free
    • Lead free
    Availability
    See tables
    Spools may contain multiple
    lengths


    ★★★★商品說明★★★★

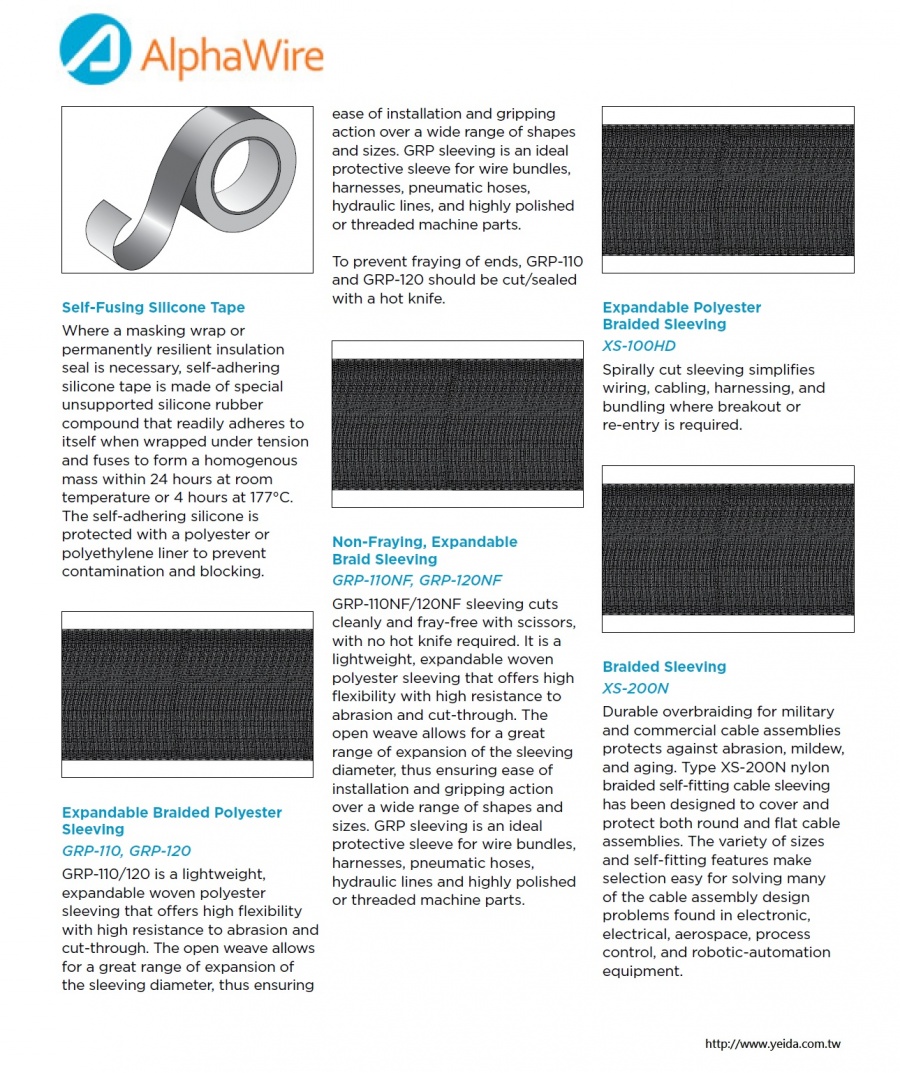

    Expandable Braided Polyester
    Sleeving
    GRP-110, GRP-120


    GRP-110/120 is a lightweight,
    expandable woven polyester
    sleeving that offers high flexibility
    with high resistance to abrasion and
    cut-through. The open weave allows
    for a great range of expansion of
    the sleeving diameter, thus ensuring
    Part # AWG / Shrink ratio Material C° Voltage #Elements Category Shielding Ratings
    GRP1101/2 n/a braided pe -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;mil-i-631
    GRP1101/4 n/a braided pe -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;mil-i-631
    GRP1101/8 n/a braided pe -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;mil-i-631
    GRP11011/4 n/a braided pe -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;mil-i-631
    GRP11013/4 n/a braided pe -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;mil-i-631
    GRP1102IN n/a braided pe -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;mil-i-631
    GRP1103/4 n/a braided pe -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;mil-i-631
    GRP110NF1/2 n/a braided pet -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;csa 5836 01;mil-i-631
    GRP110NF1/4 n/a braided pet -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;csa 5836 01;mil-i-631
    GRP110NF1/8 n/a braided pet -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;csa 5836 01;mil-i-631
    GRP110NF11/2 n/a braided pet -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;csa 5836 01;mil-i-631
    GRP110NF3/4 n/a braided pet -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;csa 5836 01;mil-i-631
    GRP1201/2 n/a braided pe -75 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;mil-i-631;ul vw-1
    GRP1201/4 n/a braided pe -75 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;mil-i-631;ul vw-1
    GRP1201/8 n/a braided pe -75 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;mil-i-631;ul vw-1
    GRP12011/4 n/a braided pe -75 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;mil-i-631;ul vw-1
    GRP12013/4 n/a braided pe -75 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;mil-i-631;ul vw-1
    GRP1202IN n/a braided pe -75 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;mil-i-631;ul vw-1
    GRP1203/4 n/a braided pe -75 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;mil-i-631;ul vw-1
    GRP120NF1/2 n/a braided pet -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;csa 5836 01;mil-i-631;ul vw-1
    GRP120NF1/4 n/a braided pet -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;csa 5836 01;mil-i-631;ul vw-1
    GRP120NF1/8 n/a braided pet -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;csa 5836 01;mil-i-631;ul vw-1
    GRP120NF11/2 n/a braided pet -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;csa 5836 01;mil-i-631;ul vw-1
    GRP120NF11/4 n/a braided pet -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;csa 5836 01;mil-i-631;ul vw-1
    GRP120NF3/4 n/a braided pet -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;csa 5836 01;mil-i-631;ul vw-1
