    ALPHA-GRP-110NF, GRP-120NF (-75°C to +125°C) Non-Fraying, Expandable Braided Polyester Sleeving防热和抗腐蚀阻燃和机械磨损可擴展的套管
    看原圖
    		ALPHA-GRP-110NF

    商品編號: ALPHA-GRP-110NF

    ALPHA-GRP-110NF, GRP-120NF (-75°C to +125°C) Non-Fraying, Expandable Braided Polyester Sleeving防热和抗腐蚀阻燃和机械磨损可擴展的套管

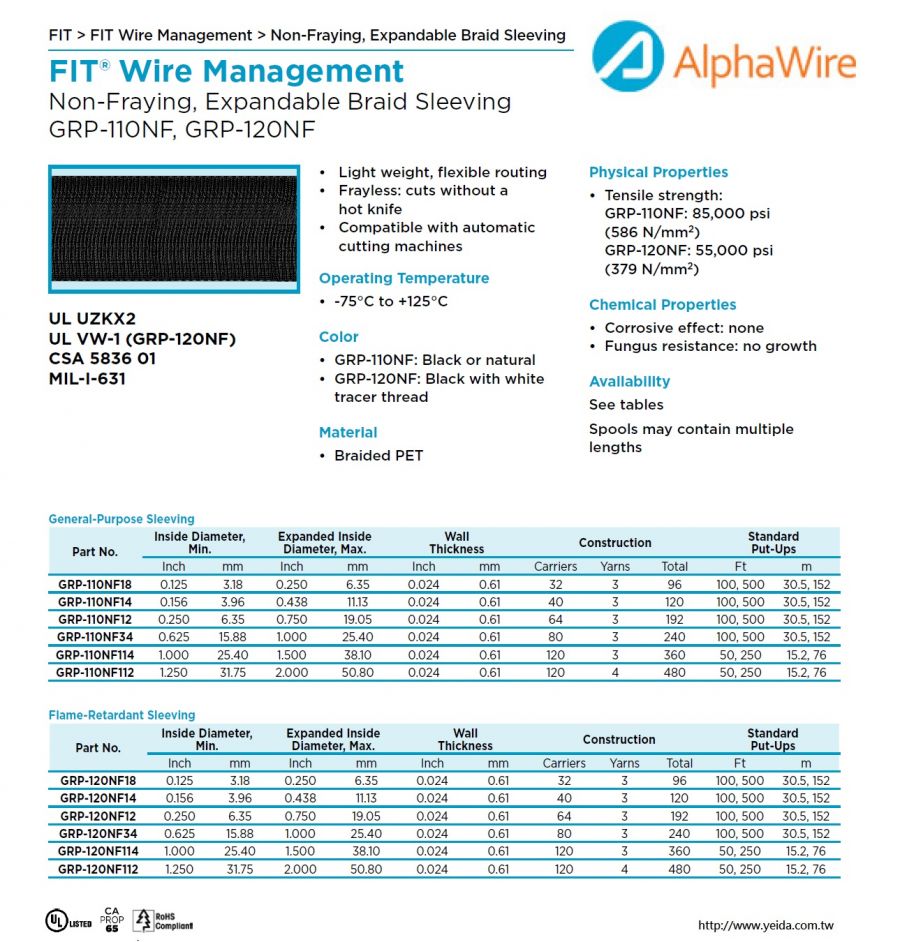

    FIT® Wire Management
    Non-Fraying, Expandable Braid Sleeving


    GRP-110NF, GRP-120NF
    UL UZKX2
    UL VW-1 (GRP-120NF)
    CSA 5836 01
    MIL-I-631
    • Light weight, flexible routing
    • Frayless: cuts without a hot knife
    • Compatible with automatic cutting machines
    Operating Temperature
    • -75°C to +125°C
    Color
    • GRP-110NF: Black or natural
    • GRP-120NF: Black with white tracer thread
    Material
    • Braided PET
    Physical Properties
    • Tensile strength:
    GRP-110NF: 85,000 psi (586 N/mm2)
    GRP-120NF: 55,000 psi (379 N/mm2)
    Chemical Properties
    • Corrosive effect: none
    • Fungus resistance: no growth
    Availability
    See tables
    Spools may contain multiple
    lengths



    Non-Fraying, Expandable
    Braid Sleeving
    GRP-110NF, GRP-120NF


    GRP-110NF/120NF sleeving cuts
    cleanly and fray-free with scissors,
    with no hot knife required. It is a
    lightweight, expandable woven
    polyester sleeving that offers high
    flexibility with high resistance to
    abrasion and cut-through. The
    open weave allows for a great
    range of expansion of the sleeving
    diameter, thus ensuring ease of
    installation and gripping action
    over a wide range of shapes and
    sizes. GRP sleeving is an ideal
    protective sleeve for wire bundles,
    harnesses, pneumatic hoses,
    hydraulic lines and highly polished
    or threaded machine parts.


    n/a
    Part # AWG / Shrink ratio Material C° Voltage #Elements Category Shielding Ratings
    GRP1101/2 n/a braided pe -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;mil-i-631
    GRP1101/4 n/a braided pe -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;mil-i-631
    GRP1101/8 n/a braided pe -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;mil-i-631
    GRP11011/4 n/a braided pe -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;mil-i-631
    GRP11013/4 n/a braided pe -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;mil-i-631
    GRP1102IN n/a braided pe -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;mil-i-631
    GRP1103/4 n/a braided pe -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;mil-i-631
    GRP110NF1/2 n/a braided pet -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;csa 5836 01;mil-i-631
    GRP110NF1/4 n/a braided pet -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;csa 5836 01;mil-i-631
    GRP110NF1/8 n/a braided pet -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;csa 5836 01;mil-i-631
    GRP110NF11/2 n/a braided pet -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;csa 5836 01;mil-i-631
    GRP110NF3/4 n/a braided pet -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;csa 5836 01;mil-i-631
    GRP1201/2 n/a braided pe -75 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;mil-i-631;ul vw-1
    GRP1201/4 n/a braided pe -75 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;mil-i-631;ul vw-1
    GRP1201/8 n/a braided pe -75 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;mil-i-631;ul vw-1
    GRP12011/4 n/a braided pe -75 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;mil-i-631;ul vw-1
    GRP12013/4 n/a braided pe -75 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;mil-i-631;ul vw-1
    GRP1202IN n/a braided pe -75 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;mil-i-631;ul vw-1
    GRP1203/4 n/a braided pe -75 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;mil-i-631;ul vw-1
    GRP120NF1/2 n/a braided pet -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;csa 5836 01;mil-i-631;ul vw-1
    GRP120NF1/4 n/a braided pet -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;csa 5836 01;mil-i-631;ul vw-1
    GRP120NF1/8 n/a braided pet -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;csa 5836 01;mil-i-631;ul vw-1
    GRP120NF11/2 n/a braided pet -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;csa 5836 01;mil-i-631;ul vw-1
    GRP120NF11/4 n/a braided pet -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;csa 5836 01;mil-i-631;ul vw-1
    GRP120NF3/4 n/a braided pet -70 to 125 n/a n/a Tubing/Accessories n/a ul uzkx2;csa 5836 01;mil-i-631;ul vw-1
