    ALPHA-PIF-240 -60°C to +648°C Natural Uncoated Fiberglass Sleeving 耐高溫和机械磨损玻璃纖維套管
    看原圖
    		ALPHA-PIF-240



    商品編號: ALPHA-PIF-240

    ALPHA-PIF-240 -60°C to +648°C Natural Uncoated Fiberglass Sleeving 耐高溫和机械磨损玻璃纖維套管

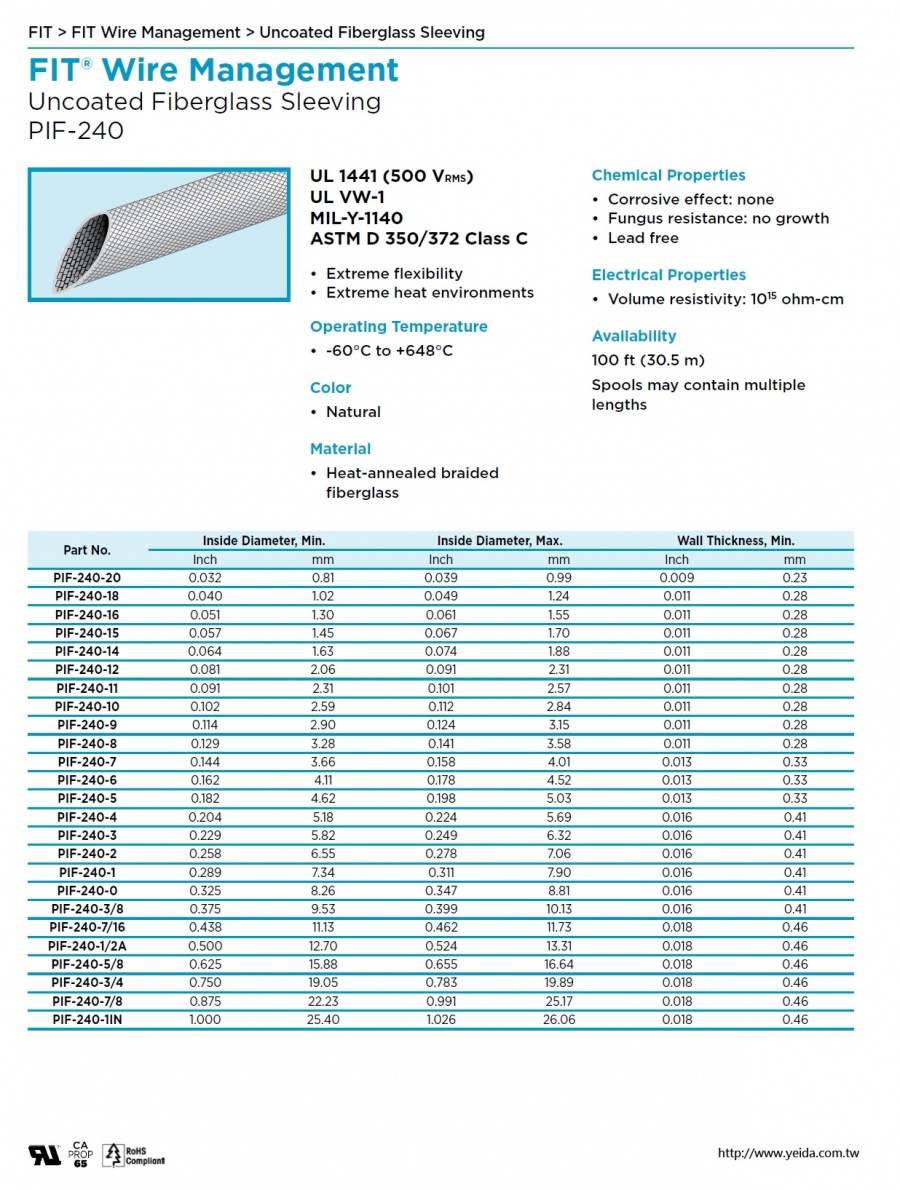

    FIT® Wire Management
    Uncoated Fiberglass Sleeving


    PIF-240
    UL 1441 (500 VRMS)
    UL VW-1
    MIL-Y-1140
    ASTM D 350/372 Class C
    • Extreme flexibility
    • Extreme heat environments
    Operating Temperature
    • -60°C to +648°C
    Color
    • Natural
    Material
    • Heat-annealed braided fiberglass
    Chemical Properties
    • Corrosive effect: none
    • Fungus resistance: no growth
    • Lead free
    Electrical Properties
    • Volume resistivity: 1015 ohm-cm
    Availability
    100 ft (30.5 m)
    Spools may contain multiple
    lengths



    ★★★★商品說明★★★★

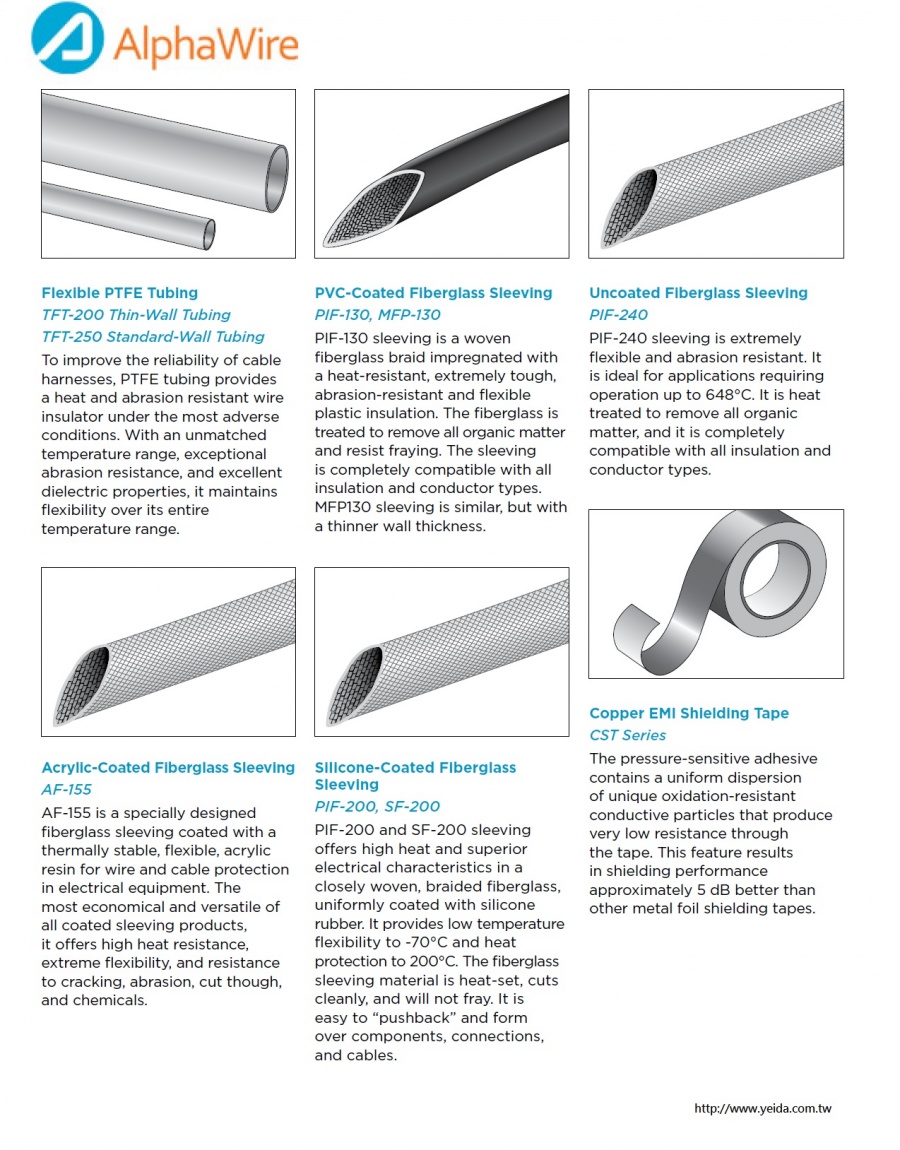

    Uncoated Fiberglass Sleeving PIF-240


    PIF-240 sleeving is extremely
    flexible and abrasion resistant. It
    is ideal for applications requiring
    operation up to 648°C. It is heat
    treated to remove all organic
    matter, and it is completely
    compatible with all insulation and
    conductor types.
    Part # AWG / Shrink ratio Material C° Voltage #Elements Category Shielding Ratings
    PIF1307/16 n/a fiberglass pvc -20 to 130 n/a n/a Tubing/Accessories n/a ul 1441;nema tf-1;mil-i-3190_2;ul vw-1
    PIF1307/8 n/a fiberglass pvc -20 to 130 n/a n/a Tubing/Accessories n/a mil-i-3190e;nema vs-1;ul 1441;tubingratings
    PIF1308 n/a fiberglass pvc -20 to 130 n/a n/a Tubing/Accessories n/a mil-i-3190e;nema vs-1;ul 1441;tubingratings
    PIF2000 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2001 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2001/2A n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20010 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20011 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20012 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20013 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20014 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20015 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20016 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20017 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20018 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2002 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20020 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20022 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20024 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2003 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2003/8 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2004 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2005 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2006 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2007 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2007/16 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2008 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2400 n/a fiberglass -60 to 616 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;ul vw-1
    PIF2401 n/a fiberglass -60 to 616 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;ul vw-1
    PIF2401/2A n/a fiberglass -60 to 616 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;ul vw-1
    PIF24010 n/a fiberglass -60 to 616 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;ul vw-1
    PIF24011 n/a fiberglass -60 to 616 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;ul vw-1
    PIF24012 n/a fiberglass -60 to 616 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;ul vw-1
    PIF24014 n/a fiberglass -60 to 616 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;ul vw-1
    PIF24015 n/a fiberglass -60 to 616 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;ul vw-1
