    ALPHA-XS-200N (-0°C to +250°C) Braided Sleeving防热和抗腐蚀阻燃和机械磨损可擴展的套管
    看原圖

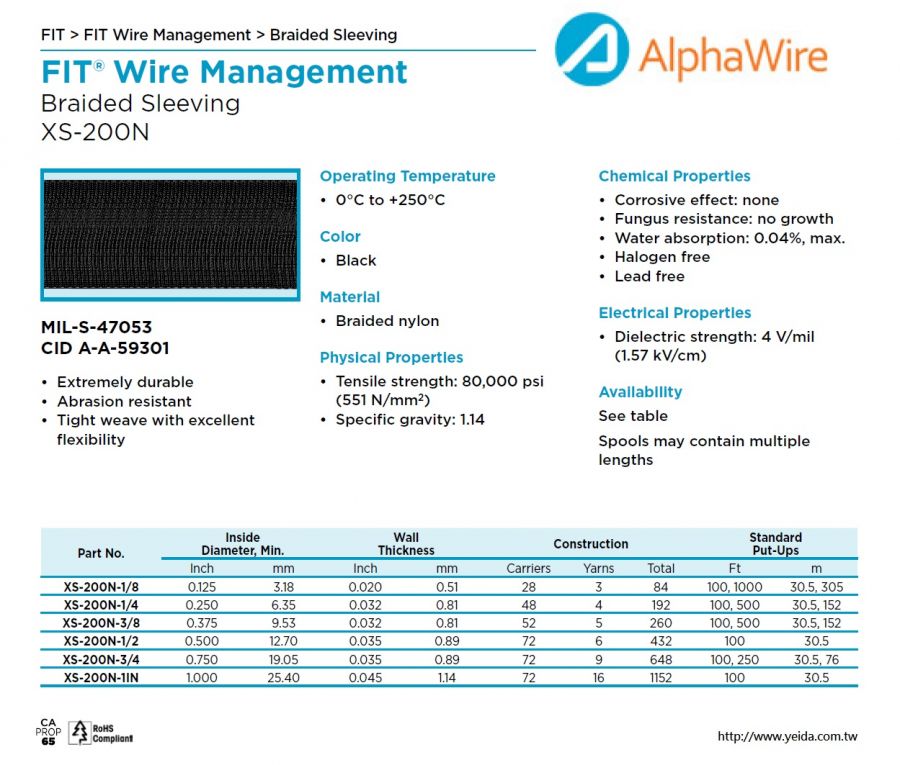

    		ALPHA-XS-200N



    商品編號: ALPHA-XS-200N

    ALPHA-XS-200N (-0°C to +250°C) Braided Sleeving防热和抗腐蚀阻燃和机械磨损可擴展的套管


    FIT® Wire Management
    Braided Sleeving


    XS-200N
    MIL-S-47053
    CID A-A-59301
    • Extremely durable
    • Abrasion resistant
    • Tight weave with excellent flexibility
    Operating Temperature
    • 0°C to +250°C
    Color
    • Black
    Material
    • Braided nylon
    Physical Properties
    • Tensile strength: 80,000 psi (551 N/mm2)
    • Specific gravity: 1.14
    Chemical Properties
    • Corrosive effect: none
    • Fungus resistance: no growth
    • Water absorption: 0.04%, max.
    • Halogen free
    • Lead free
    Electrical Properties
    • Dielectric strength: 4 V/mil
    (1.57 kV/cm)
    Availability
    See table
    Spools may contain multiple
    lengths




    Braided Sleeving
    XS-200N


    Durable overbraiding for military
    and commercial cable assemblies
    protects against abrasion, mildew,
    and aging. Type XS-200N nylon
    braided self-fitting cable sleeving
    has been designed to cover and
    protect both round and flat cable
    assemblies. The variety of sizes
    and self-fitting features make
    selection easy for solving many
    of the cable assembly design
    problems found in electronic,
    electrical, aerospace, process
    control, and robotic-automation
    equipment.

    Part # Material ID Expanded ID Temperature Colors Ratings
    SW51 PVC 0.16 0.25 -20 to 80 Black RoHS
    SW52 PVC 0.271 0.375 -20 to 80 Black RoHS
    SW53 PVC 0.376 0.5 -20 to 80 Black RoHS
    SW6 PE 0.84 1 -60 to 88 Natural A-A-59602 Type 1 Class 1, ASTM 1248-65T Type 1 Class A Grade 3, MIL-I-631D Type A Form U, MIL-P-21922, RoHS, UL UZKX2
    XFR21/2 Braided PE 2.5 　 -70 to 125 Black, White CSA, UL VW-1
    XHD11/2 Braided PE 1.5 　 -70 to 125 Black CSA, UL
    XHD1IN Braided PE 1 　 -70 to 125 Black CSA, UL
    XHD2IN Braided PE 2 　 -70 to 125 Black CSA, UL
    XHD3/8 Braided PE 0.375 　 -70 to 125 Black CSA, UL
    XHD5/8 Braided PE 0.625 　 -70 to 125 Black CSA, UL
    XS10021/2 Braided PE 2.5 　 -70 to 125 Black, Natural CSA, UL
    XS200N1/2 Braided Nylon 0.5 　 -45 to 120 Black MIL-C-572, MIL-I-47203, MIL-S-47053
    XS200N1/4 Braided Nylon 0.25 　 -45 to 120 Black MIL-C-572, MIL-I-47203, MIL-S-47053
    XS200N1/8 Braided Nylon 0.125 　 -45 to 120 Black MIL-C-572, MIL-I-47203, MIL-S-47053
    XS200N1IN Braided Nylon 1 　 -45 to 120 Black MIL-C-572, MIL-I-47203, MIL-S-47053
    XS200N3/4 Braided Nylon 0.75 　 -45 to 120 Black MIL-C-572, MIL-I-47203, MIL-S-47053
    XS200N3/8 Braided Nylon 0.375 　 -45 to 120 Black MIL-C-572, MIL-I-47203, MIL-S-47053
    XS300071 Braided Nylon 0.092 　 -45 to 120 Black CA Prop 65, ISO 6945, REACH Regulation (EC 1907/2006), RoHS
    XS300083 Braided Nylon 0.71 　 -45 to 120 Black CA Prop 65, ISO 6945, REACH Regulation (EC 1907/2006), RoHS
    XS300092 Braided Nylon 0.83 　 -45 to 120 Black CA Prop 65, ISO 6945, REACH Regulation (EC 1907/2006), RoHS
