    ALPHA-ZIP-GRP -75°C to +125°C Expandable Polyester Webbed Sleeving防热和抗腐蚀阻燃和机械磨损鏈式管材
    看原圖
    		ALPHA-ZIP-GRP



    商品編號: ALPHA-ZIP-GRP

    ALPHA-ZIP-GRP -75°C to +125°C Expandable Polyester Webbed Sleeving防热和抗腐蚀阻燃和机械磨损鏈式管材

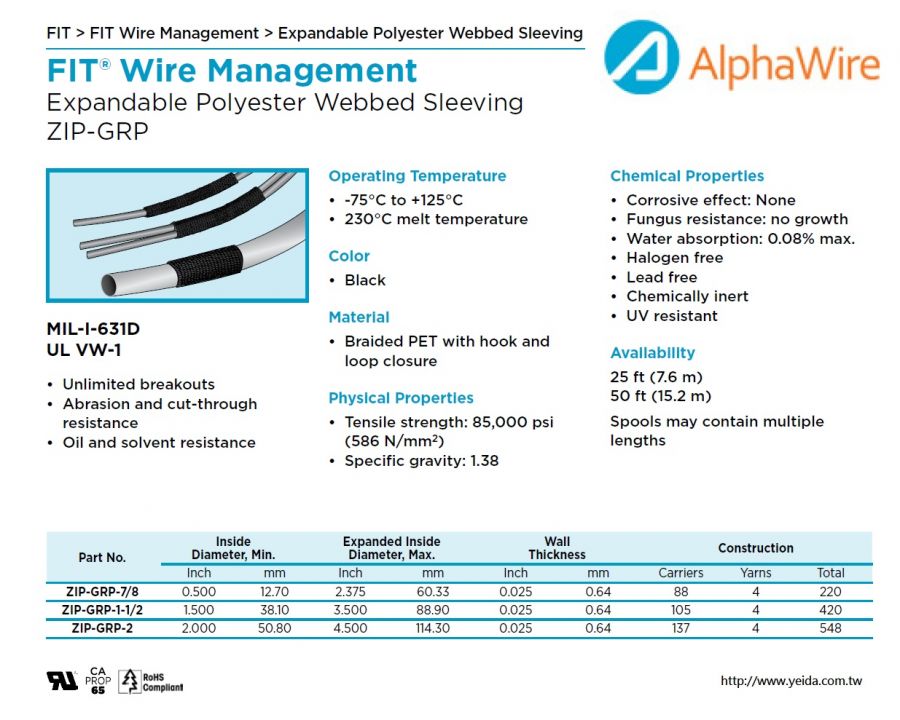

    FIT® Wire Management
    Expandable Polyester Webbed Sleeving


    ZIP-GRP
    MIL-I-631D
    UL VW-1
    • Unlimited breakouts
    • Abrasion and cut-through resistance
    • Oil and solvent resistance
    Operating Temperature
    • -75°C to +125°C
    • 230°C melt temperature
    Color
    • Black
    Material
    • Braided PET with hook and loop closure
    Physical Properties
    • Tensile strength: 85,000 psi (586 N/mm2)
    • Specific gravity: 1.38
    Chemical Properties
    • Corrosive effect: None
    • Fungus resistance: no growth
    • Water absorption: 0.08% max.
    • Halogen free
    • Lead free
    • Chemically inert
    • UV resistant
    Availability
    25 ft (7.6 m)
    50 ft (15.2 m)
    Spools may contain multiple
    lengths

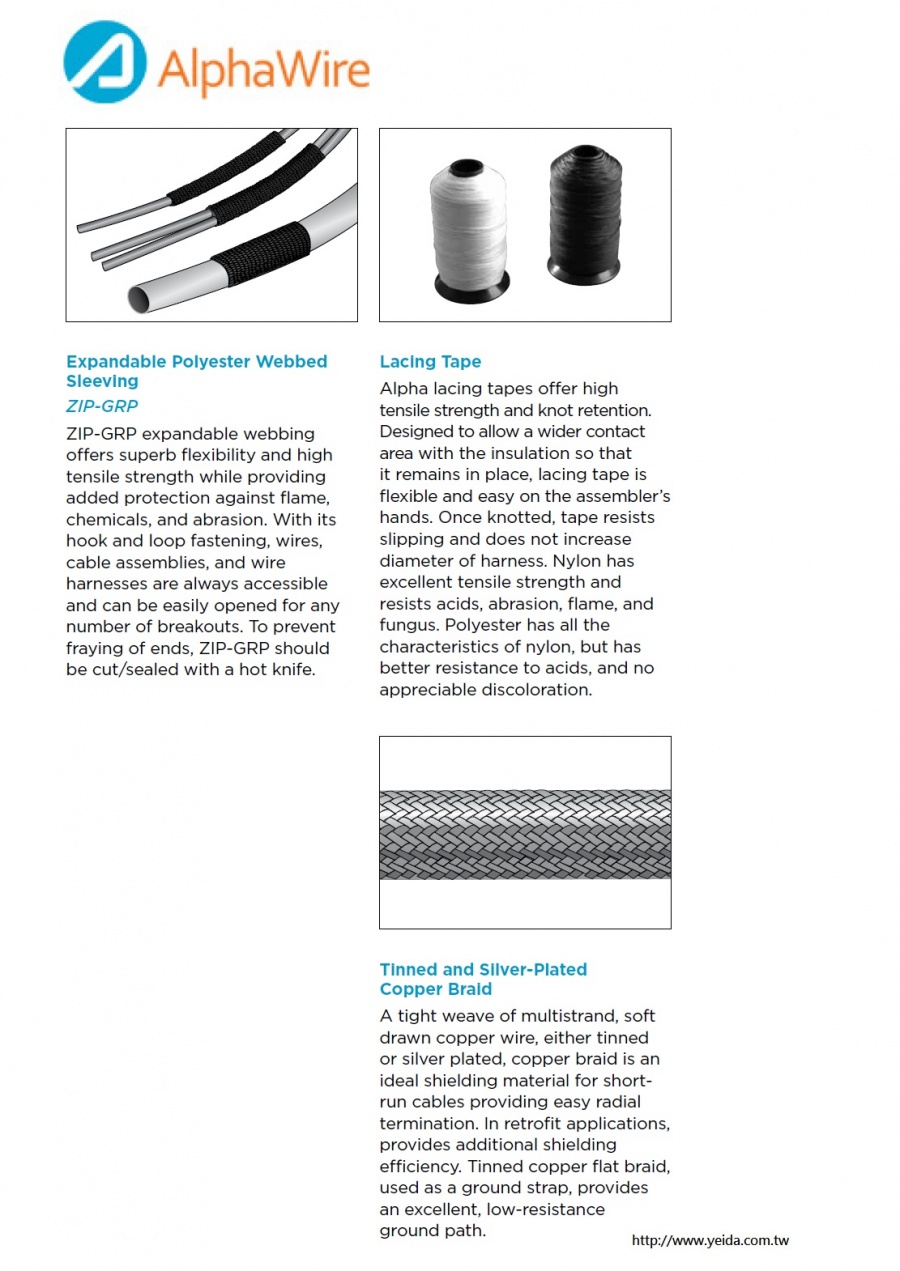

    Expandable Polyester Webbed Sleeving
    ZIP-GRP


    ZIP-GRP expandable webbing
    offers superb flexibility and high
    tensile strength while providing
    added protection against flame,
    chemicals, and abrasion. With its
    hook and loop fastening, wires,
    cable assemblies, and wire
    harnesses are always accessible
    and can be easily opened for any
    number of breakouts. To prevent
    fraying of ends, ZIP-GRP should
    be cut/sealed with a hot knife.

    Part # Material ID Expanded ID Temperature Colors Ratings
    XS300100 Braided Nylon 1 　 -45 to 120 Black CA Prop 65, ISO 6945, REACH Regulation (EC 1907/2006), RoHS
    XS300113 Braided Nylon 1.13 　 -45 to 120 Black CA Prop 65, ISO 6945, REACH Regulation (EC 1907/2006), RoHS
    XS300125 Braided Nylon 1.25 　 -45 to 120 Black CA Prop 65, ISO 6945, REACH Regulation (EC 1907/2006), RoHS
    XS300134 Braided Nylon 1.34 　 -45 to 120 Black CA Prop 65, ISO 6945, REACH Regulation (EC 1907/2006), RoHS
    XS300159 Braided Nylon 1.59 　 -45 to 120 Black CA Prop 65, ISO 6945, REACH Regulation (EC 1907/2006), RoHS
    XS300175 Braided Nylon 1.75 　 -45 to 120 Black CA Prop 65, ISO 6945, REACH Regulation (EC 1907/2006), RoHS
    XS300207 Braided Nylon 2.07 　 -45 to 120 Black CA Prop 65, ISO 6945, REACH Regulation (EC 1907/2006), RoHS
    XS300238 Braided Nylon 2.38 　 -45 to 120 Black CA Prop 65, ISO 6945, REACH Regulation (EC 1907/2006), RoHS
    XS300254 Braided Nylon 2.54 　 -45 to 120 Black CA Prop 65, ISO 6945, REACH Regulation (EC 1907/2006), RoHS
    XS300286 Braided Nylon 2.86 　 -45 to 120 Black CA Prop 65, ISO 6945, REACH Regulation (EC 1907/2006), RoHS
    XS300334 Braided Nylon 3.34 　 -45 to 120 Black CA Prop 65, ISO 6945, REACH Regulation (EC 1907/2006), RoHS
    XS300366 Braided Nylon 3.66 　 -45 to 120 Black CA Prop 65, ISO 6945, REACH Regulation (EC 1907/2006), RoHS
    ZIPGRP11/2 Polyester 1 2 -70 to 125 Black CA Prop 65, CSA 5836 01, REACH Regulation (EC 1907/2006), RoHS, UL UZKX2, UL VW-1
    ZIPGRP2IN Polyester 1.5 2.125 -70 to 125 Black CA Prop 65, CSA 5836 01, REACH Regulation (EC 1907/2006), RoHS, UL UZKX2, UL VW-1
    ZIPGRP7/8 Polyester 0.75 1 -70 to 125 Black CA Prop 65, CSA 5836 01, REACH Regulation (EC 1907/2006), RoHS, UL UZKX2, UL VW-1
