    首頁 > > ALPHA-Tubing 管道

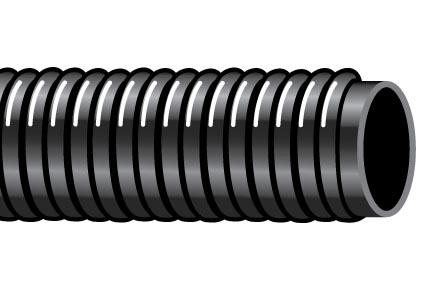

    ALPHA-FNT-1/2 Flexible Liquid-Tight PVC Tubing FNT Tubing柔性 耐热、耐油、耐磨性能 FNT管道
    看原圖
    		ALPHA-FNT-1-2



    商品編號: ALPHA-FNT-1-2

    ALPHA-FNT-1/2 Flexible Liquid-Tight PVC Tubing FNT Tubing柔性 耐热、耐油、耐磨性能 FNT管道

    Part # Material ID Wall Thickness Temperature Colors Ratings
    FNT-1/2 PVC 0.622 　 -18 to 50 Black CSA C22.2 No. 227.3-05, UL 1696

    　

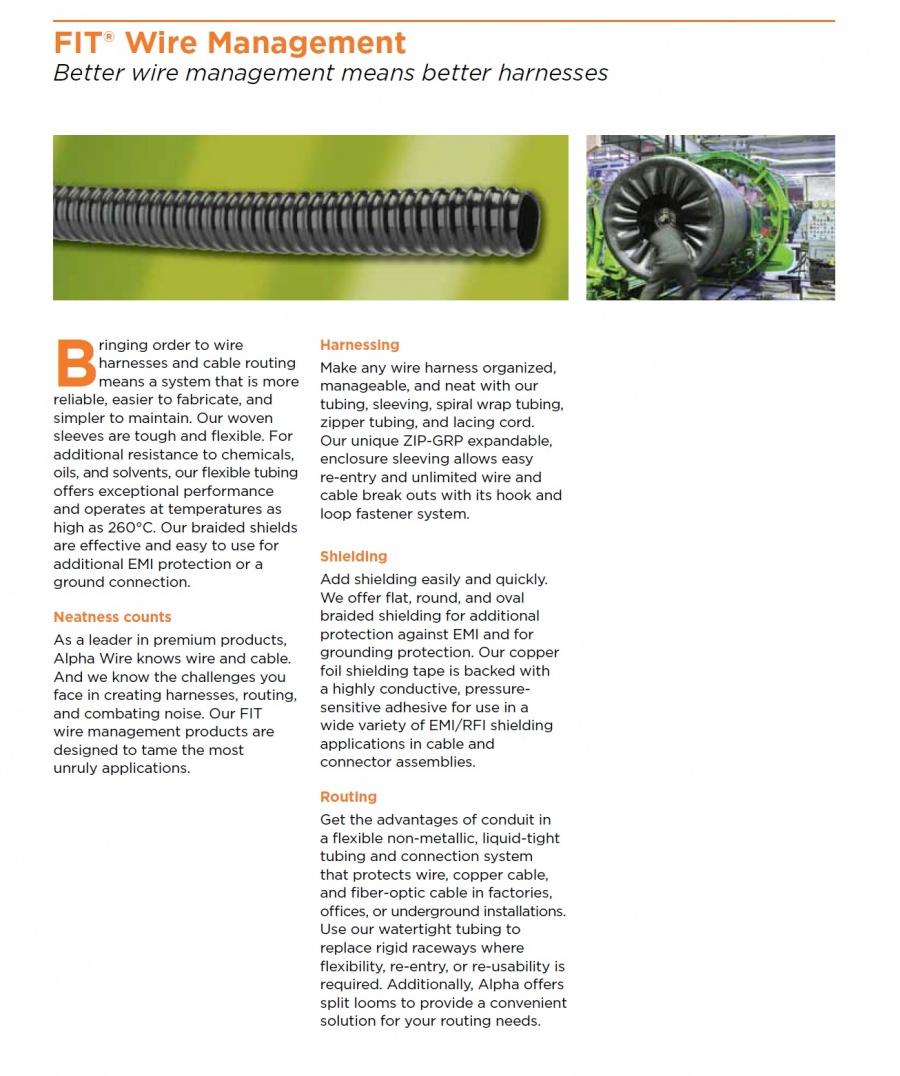

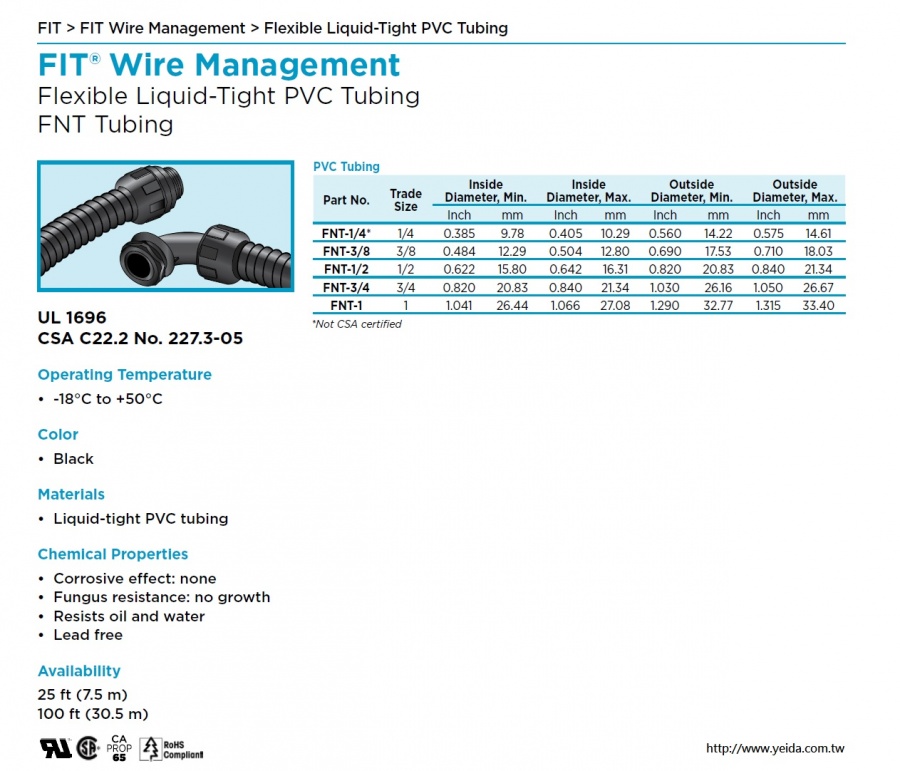

    FIT® Wire Management
    Flexible Liquid-Tight PVC Tubing


    FNT Tubing
    UL 1696
    CSA C22.2 No. 227.3-05


    Operating Temperature
    • -18°C to +50°C


    Color
    • Black
    　

    Materials
    • Liquid-tight PVC tubing
    Chemical Properties
    • Corrosive effect: none
    • Fungus resistance: no growth
    • Resists oil and water
    • Lead free
    　

    Availability
    25 ft (7.5 m)
    100 ft (30.5 m)

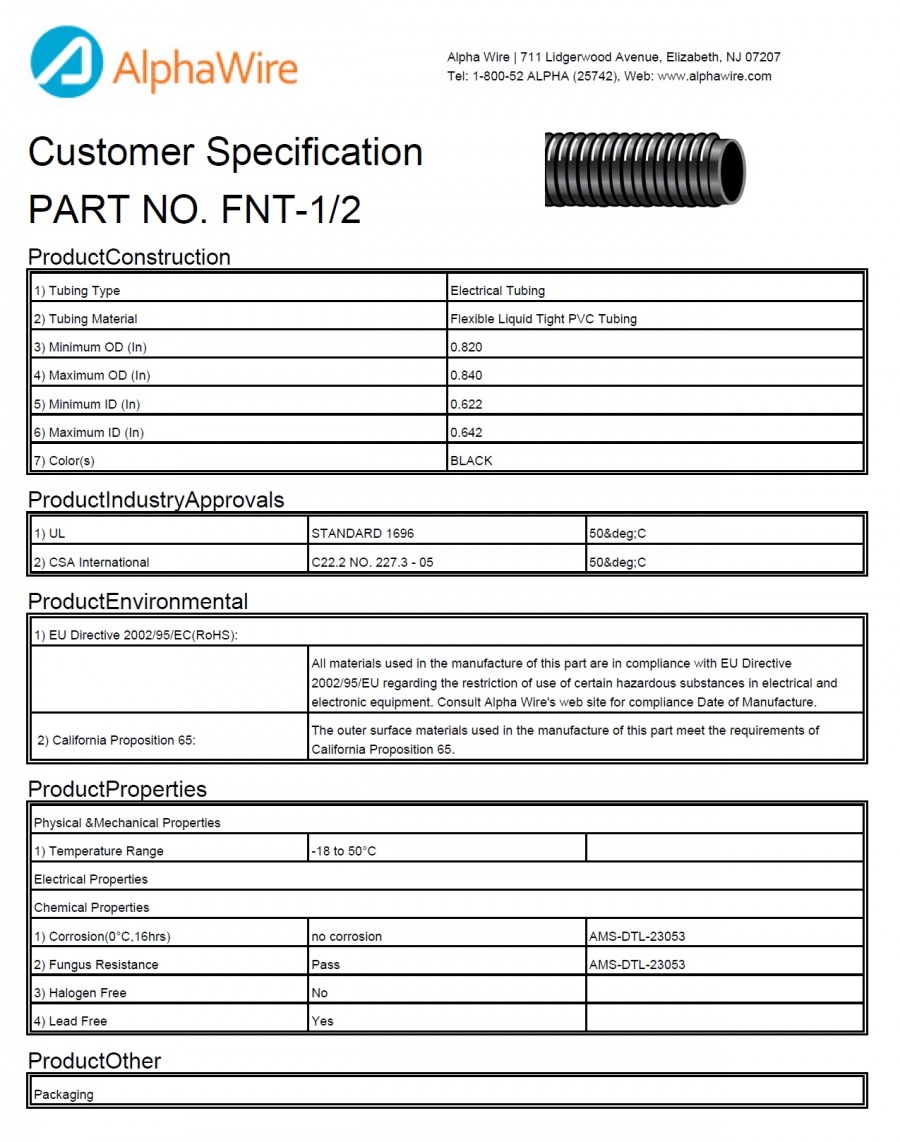

    ProductConstruction
    1) Tubing Type Electrical Tubing
    2) Tubing Material Flexible Liquid Tight PVC Tubing
    3) Minimum OD (In) 0.820
    4) Maximum OD (In) 0.840
    5) Minimum ID (In) 0.622
    6) Maximum ID (In) 0.642
    7) Color(s) BLACK
    ProductIndustryApprovals
    1) UL STANDARD 1696 50°C
    2) CSA International C22.2 NO. 227.3 - 05 50°C
    ProductEnvironmental
    1) EU Directive 2002/95/EC(RoHS):
    　 All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
    2) California Proposition 65: The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.
    ProductProperties
    Physical & Mechanical Properties
    1) Temperature Range -18 to 50°C 　
    Electrical Properties
    Chemical Properties
    1) Corrosion(0°C,16hrs) no corrosion AMS-DTL-23053
    2) Fungus Resistance Pass AMS-DTL-23053
    3) Halogen Free No 　
    4) Lead Free Yes 　
    ProductOther
    Packaging
    100 FT, 25 FT

    Alpha套管产品尺寸齐全，具有抗燃烧、耐高温、防磨损和腐蚀，能满足您电线和电缆的布线要求。

    符合性证明
    敬启者：
    Alpha Wire 部件号：FNT-1/2
    FNT-1/2，符合RoHS标准，以 2004/10/1 的生产为开始
    兹通过本文件证明上述 Alpha 部件号的产品系根据欧洲议会和欧洲理事会2003年1月27日第2002/95/EC号关于在电气电子设备中限制使用某些有害物质的指令（即RoHS指令）而制造。关于所述指令的具体定义和范围，请参见所述指令。对该产品的RoHS符合性不需任何豁免。
    危险物质 最大控制值
    铅 按重量计算不得超过0.1% (1000 ppm)
    汞 按重量计算不得超过0.1% (1000 ppm)
    镉 按重量计算不得超过0.01% (100 ppm)
    六价镉 按重量计算不得超过0.1% (1000 ppm)
    聚溴联苯 (PBB) 按重量计算不得超过0.1% (1000 ppm)
    聚溴二苯醚 (PBDE) 　
    台卡二苯醚 按重量计算不得超过0.1% (1000 ppm)
    Alpha Wire 公司已阅读本文件，并谨在此声明本文件所含信息及披露的数据在本文件发布时均准 确无误。本文件所含信息仅作为一般指南，适用于产品本身或产品组成部分的安全处理、贮存及其它操作。本文件不应被视为任何保证或质量规范。法规信息仅供参考。对于法律、法规的适用性，由产品用户根据各自的产品用途自行确定。
    Alpha Wire 公司授权代表签字：
    技术及质保部总监 Dave Watson
    　 Part # Material ID Wall Thickness Temperature Colors Ratings
    FNT-1 PVC 1.041 　 -18 to 50 Black CSA C22.2 No. 227.3-05, UL 1696
    FNT-1/2 PVC 0.622 　 -18 to 50 Black CSA C22.2 No. 227.3-05, UL 1696
    FNT-1/4 PVC 0.385 　 -18 to 50 Black UL 1696
    FNT-3/4 PVC 0.82 　 -18 to 50 Black CSA C22.2 No. 227.3-05, UL 1696
    FNT-3/8 PVC 0.484 　 -18 to 50 Black CSA C22.2 No. 227.3-05, UL 1696
    PVC105-0 PVC 0.33 0.02 -20 to 105 Black, Clear C, Form U, Grade C, MIL-I-631D, Subform Ua, Type F, UL 198, UL 224
    PVC-105-1 PVC 0.294 0.02 -20 to 105 Black, Clear C, Form U, Grade C, MIL-I-631D, Subform Ua, Type F, UL 198, UL 224
    PVC-105-1/2A PVC 0.5 0.025 -20 to 105 Black, Clear C, CSA 198, Form U, Grade C, MIL-I-631D, Subform Ua, Type F, UL 224
    PVC-105-10 PVC 0.106 0.016 -20 to 105 Black, Clear C, Form U, Grade C, MIL-I-631D, Subform Ua, Type F, UL 198, UL 224
    PVC-105-11 PVC 0.095 0.016 -20 to 105 Black, Clear C, Form U, Grade C, MIL-I-631D, Subform Ua, Type F, UL 198, UL 224
    PVC-105-1-1/2 PVC 1.5 0.045 -20 to 105 Black, Clear C, Form U, Grade C, MIL-I-631D, Subform Ua, Type F, UL 198, UL 224
    PVC-105-1-1/4 PVC 1.25 0.04 -20 to 105 Black, Clear C, Form U, Grade C, MIL-I-631D, Subform Ua, Type F, UL 198, UL 224
    PVC-105-1-1/8 PVC 1.125 0.035 -20 to 105 Black, Clear C, CSA 198, Form U, Grade C, MIL-I-631D, Subform Ua, Type F, UL 224
    PVC-105-12 PVC 0.085 0.016 -20 to 105 Black, Clear C, Form U, Grade C, MIL-I-631D, Subform Ua, Type F, UL 198, UL 224
    PVC-105-13 PVC 0.076 0.016 -20 to 105 Black, Clear C, Form U, Grade C, MIL-I-631D, Subform Ua, Type F, UL 198, UL 224
    PVC-105-14 PVC 0.066 0.016 -20 to 105 Black, Clear C, Form U, Grade C, MIL-I-631D, Subform Ua, Type F, UL 198, UL 224
    PVC-105-15 PVC 0.059 0.016 -20 to 105 Black, Clear C, Form U, Grade C, MIL-I-631D, Subform Ua, Type F, UL 198, UL 224
    PVC-105-16 PVC 0.053 0.016 -20 to 105 Black, Clear C, Form U, Grade C, MIL-I-631D, Subform Ua, Type F, UL 198, UL 224
    PVC-105-17 PVC 0.047 0.016 -20 to 105 Black, Clear C, Form U, Grade C, MIL-I-631D, Subform Ua, Type F, UL 198, UL 224
    PVC-105-18 PVC 0.042 0.016 -20 to 105 Black, Clear C, Form U, Grade C, MIL-I-631D, Subform Ua, Type F, UL 198, UL 224
