    首頁 > > ALPHA-Tubing 管道

    ALPHA-PVC-105 Multipurpose PVC Tubing 耐热、耐油、耐磨性能
    看原圖
    		ALPHA-PVC-105



    商品編號: ALPHA-PVC-105

    ALPHA-PVC-105 Multipurpose PVC Tubing 耐热、耐油、耐磨性能

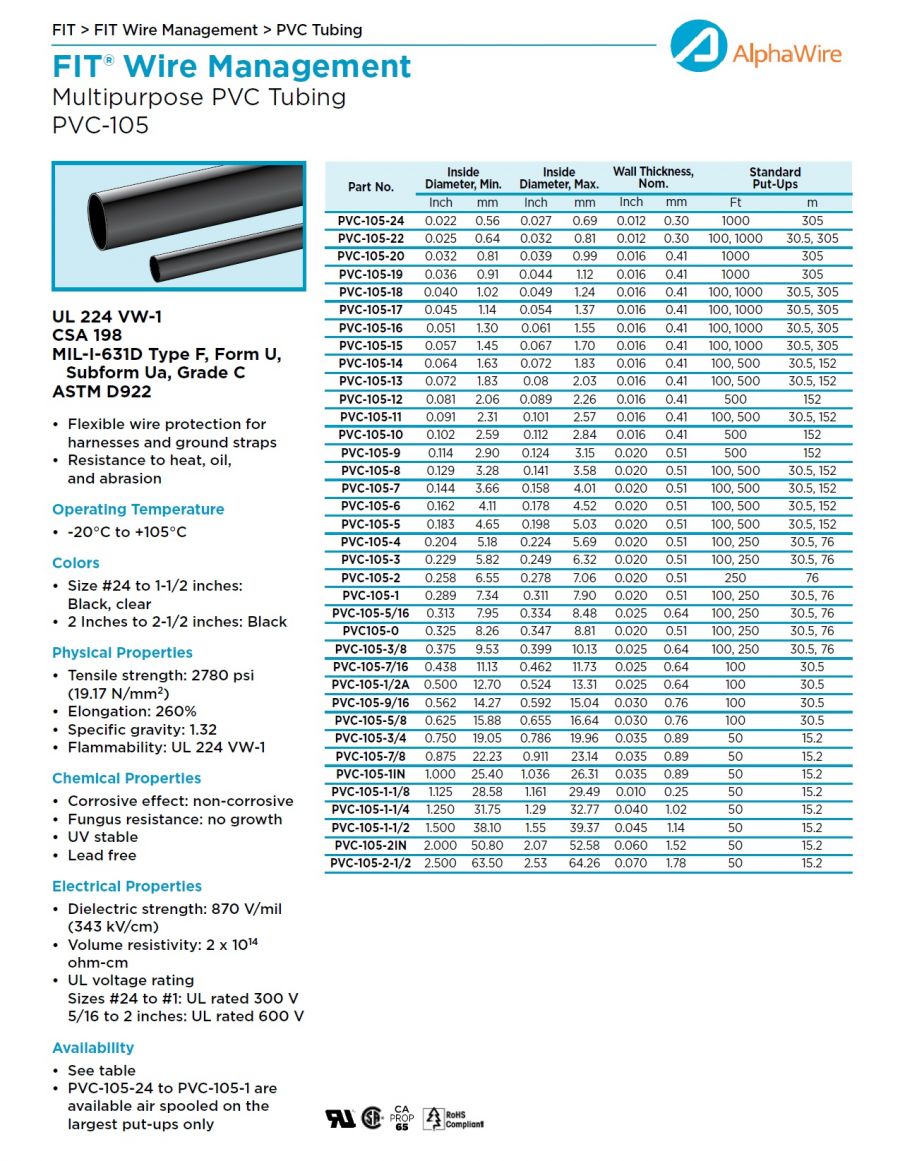

    Multipurpose PVC Tubing
    PVC-105

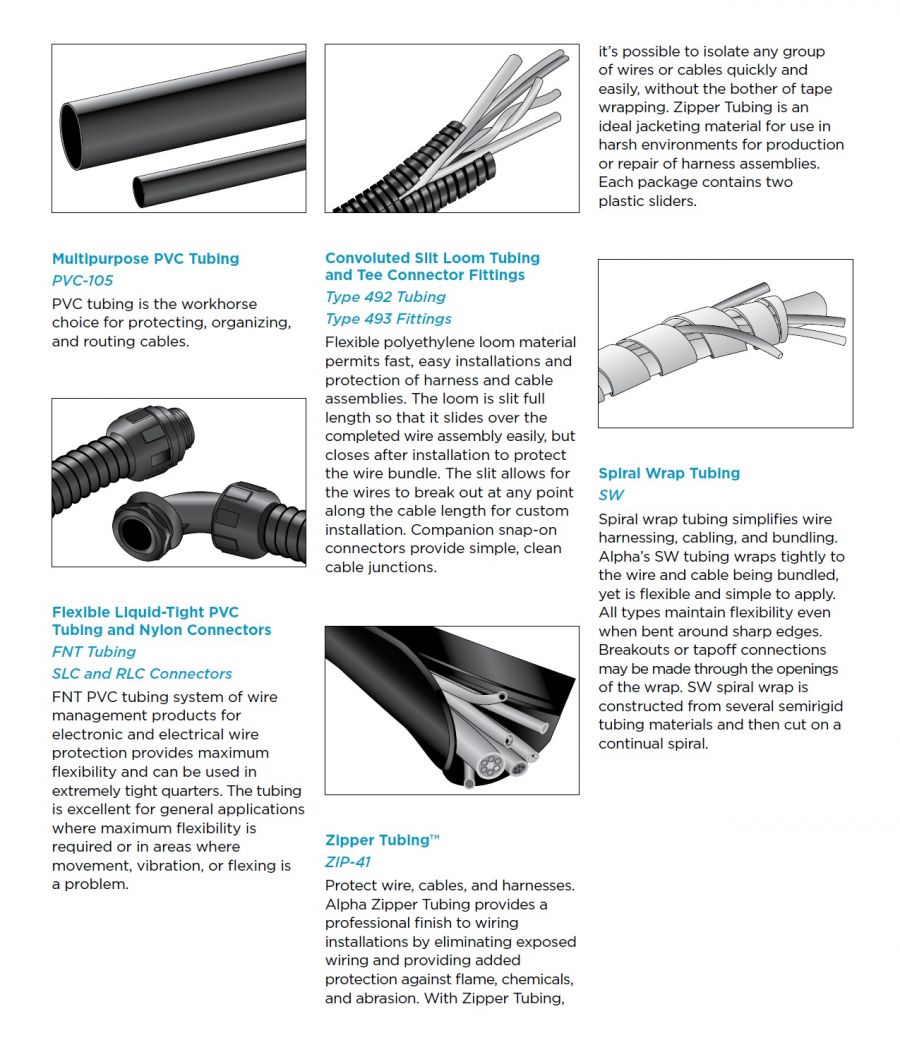

    PVC tubing is the workhorse
    choice for protecting, organizing,
    and routing cables



    FIT® Wire Management
    Multipurpose PVC Tubing
    PVC-105
    UL 224 VW-1
    CSA 198
    MIL-I-631D Type F, Form U,
    Subform Ua, Grade C
    ASTM D922
    • Flexible wire protection for
    harnesses and ground straps
    • Resistance to heat, oil,
    and abrasion
    　

    Operating Temperature
    • -20°C to +105°C
    　

    Colors
    • Size #24 to 1-1/2 inches:
    Black, clear
    • 2 Inches to 2-1/2 inches: Black
    　

    Physical Properties
    • Tensile strength: 2780 psi
    (19.17 N/mm2)
    • Elongation: 260%
    • Specific gravity: 1.32
    • Flammability: UL 224 VW-1
    　

    Chemical Properties
    • Corrosive effect: non-corrosive
    • Fungus resistance: no growth
    • UV stable
    • Lead free
    　

    Electrical Properties
    • Dielectric strength: 870 V/mil
    (343 kV/cm)
    • Volume resistivity: 2 x 1014
    ohm-cm
    • UL voltage rating
    Sizes #24 to #1: UL rated 300 V
    5/16 to 2 inches: UL rated 600 V
    　

    Availability
    • See table
    • PVC-105-24 to PVC-105-1 are
    available air spooled on the
    largest put-ups only



    　 Part #

    　

    		 Material

    　

    		 ID

    　

    		 Wall Thickness　 Temperature Colors　
    PVC-105-19 PVC 0.038 0.016 -20 to 105 Black, Clear C, Form U, Grade C, MIL-I-631D, Subform Ua, Type F, UL 198, UL 224
    PVC-105-1IN PVC 1 0.035 -20 to 105 Black, Clear
    PVC-105-2 PVC 0.263 0.02 -20 to 105 Black, Clear
    PVC-105-20 PVC 0.034 0.016 -20 to 105 Black, Clear
    PVC-105-2-1/2 PVC 2.5 0.07 -20 to 105 Black
    PVC-105-22 PVC 0.027 0.012 -20 to 105 Black, Clear
    PVC-105-24 PVC 0.022 0.012 -20 to 105 Black, Clear
    PVC-105-2IN PVC 2 0.06 -20 to 105 Black
    PVC-105-3 PVC 0.234 0.02 -20 to 105 Black, Clear
    PVC-105-3/4 PVC 0.75 0.035 -20 to 105 Black, Clear
    PVC-105-3/8 PVC 0.375 0.025 -20 to 105 Black, Clear
    PVC-105-4 PVC 0.208 0.02 -20 to 105 Black, Clear
    PVC-105-5 PVC 0.186 0.02 -20 to 105 Black, Clear
    PVC-105-5/16 PVC 0.312 0.025 -20 to 105 Black, Clear
    PVC-105-5/8 PVC 0.625 0.03 -20 to 105 Black, Clear
    PVC-105-6 PVC 0.166 0.02 -20 to 105 Black, Clear
    PVC-105-7 PVC 0.148 0.02 -20 to 105 Black, Clear
    PVC-105-7/16 PVC 0.438 0.025 -20 to 105 Black, Clear
    PVC-105-7/8 PVC 0.875 0.035 -20 to 105 Black, Clear
    PVC-105-8 PVC 0.133 0.02 -20 to 105 Black, Clear
