    首頁 > > ALPHA-Tubing 管道

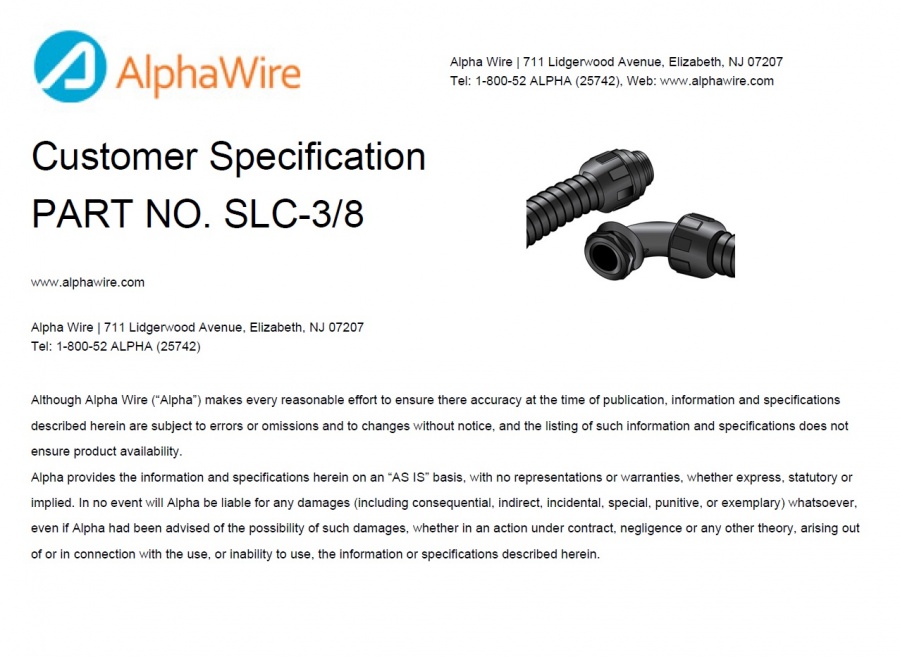

    ALPHA-SLC-3/8 +125°C Liquid-Tight Nylon connector 耐热、耐油、耐磨性能 SLC or RLC管道
    看原圖
    		ALPHA-SLC-3-8



    商品編號: ALPHA-SLC-3-8

    ALPHA-SLC-3/8 +125°C Liquid-Tight Nylon connector 耐热、耐油、耐磨性能 SLC or RLC管道


    Liquid-Tight Nylon Connectors
    SLC or RLC


    Operating Temperature
    • +125°C
    Color
    • Black
    Materials
    • Nylon connector
    • Supplied with o-ring and steel locking nut
    Properties
    • Resists salt water, weak acids,
         gasoline, alcohol, oil, grease, and common solvents
    • Flammability rating: UL 94V-2
    Availability
    10-piece packages
    100-piece packages



    部件号 Material ID Wall Thickness Temperature Colors Ratings
    SLC-3/8 Nylon 　 　 　 Black CSA, UL

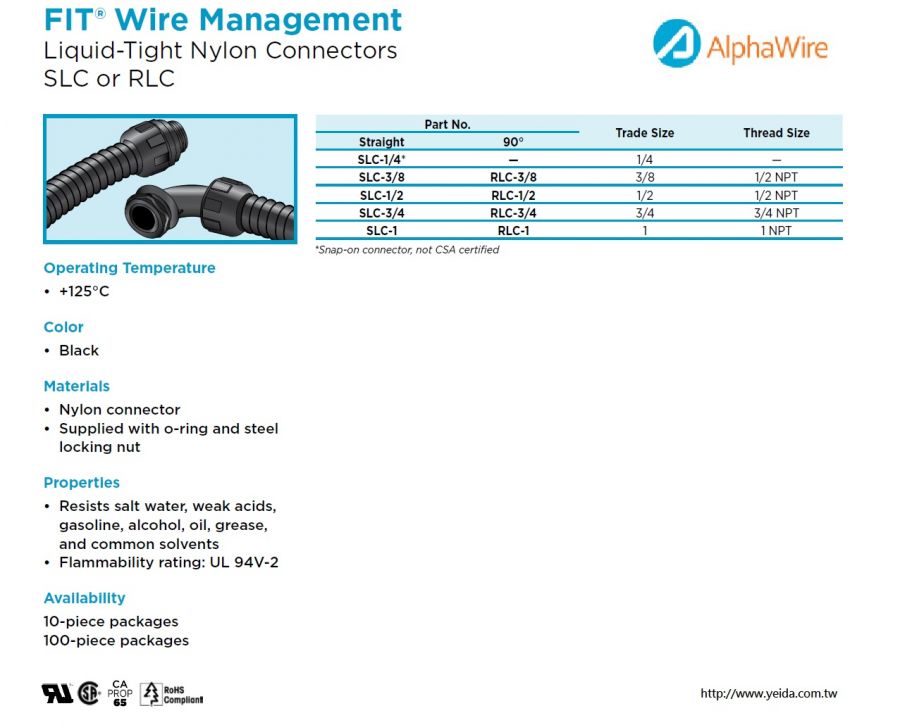

    FIT® Wire Management
    Liquid-Tight Nylon Connectors
    SLC or RLC
    　

    Operating Temperature
    • +125°C
    Color
    • Black
    Materials
    • Nylon connector
    • Supplied with o-ring and steel
    locking nut
    Properties
    • Resists salt water, weak acids,
    gasoline, alcohol, oil, grease,
    and common solvents
    • Flammability rating: UL 94V-2
    Availability
    10-piece packages
    100-piece packages

    Part # AWG / Shrink ratio Material C° Voltage #Elements Category Shielding Ratings
    SLC-1 n/a nylon n/a n/a n/a Tubing/Accessories n/a ul;csa
    SLC-1/2 n/a nylon n/a n/a n/a Tubing/Accessories n/a ul;csa
    SLC-1/4 n/a nylon n/a n/a n/a Tubing/Accessories n/a ul
    SLC-3/4 n/a nylon n/a n/a n/a Tubing/Accessories n/a ul;csa
    SLC-3/8 n/a nylon n/a n/a n/a Tubing/Accessories n/a ul;csa
