    ALPHA-SW -20°C to +105°C Spiral Wrap Tubing防热和抗腐蚀阻燃和机械磨损螺旋纏繞管道
    看原圖
    		ALPHA-SW



    商品編號: ALPHA-SW

    ALPHA-SW -20°C to +105°C Spiral Wrap Tubing防热和抗腐蚀阻燃和机械磨损螺旋纏繞管道

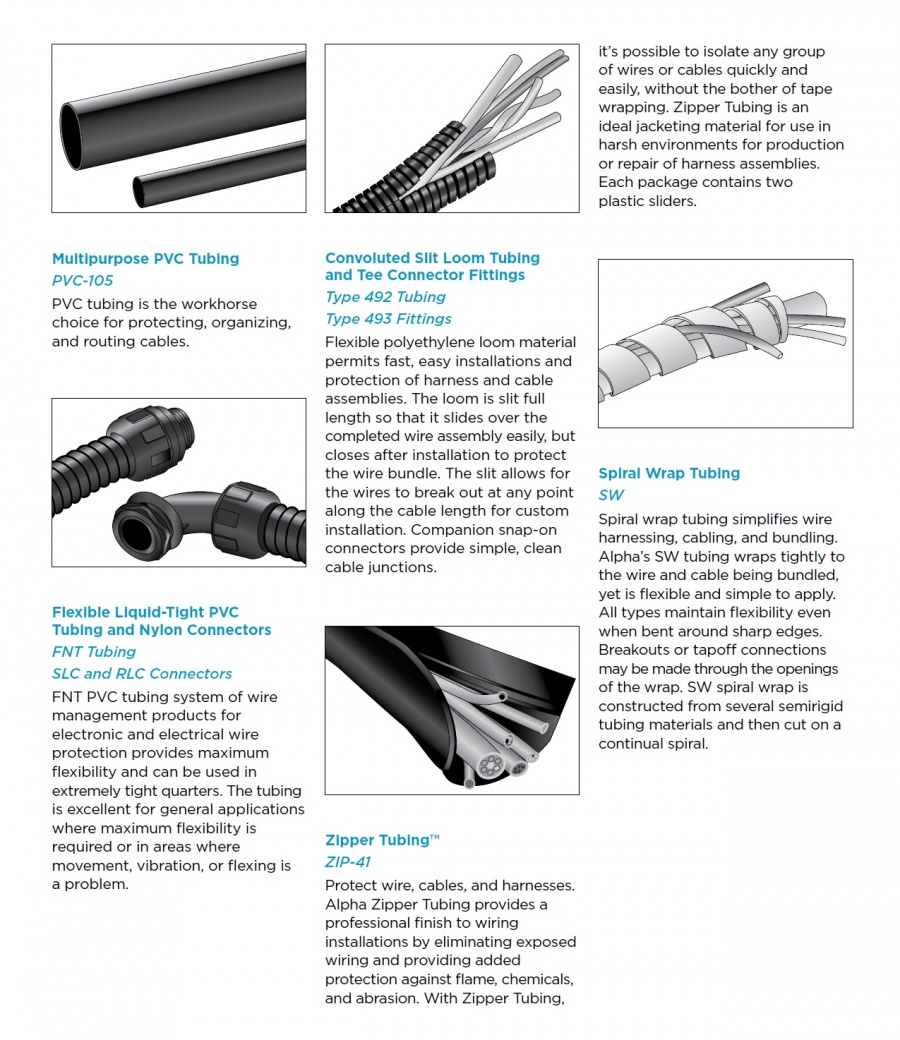

    Spiral Wrap Tubing
    SW
    Spiral wrap tubing simplifies wire
    harnessing, cabling, and bundling.
    Alpha’s SW tubing wraps tightly to
    the wire and cable being bundled,
    yet is flexible and simple to apply.
    All types maintain flexibility even
    when bent around sharp edges.
    Breakouts or tapoff connections
    may be made through the openings
    of the wrap. SW spiral wrap is
    constructed from several semirigid
    tubing materials and then cut on a
    continual spiral.

    n/a

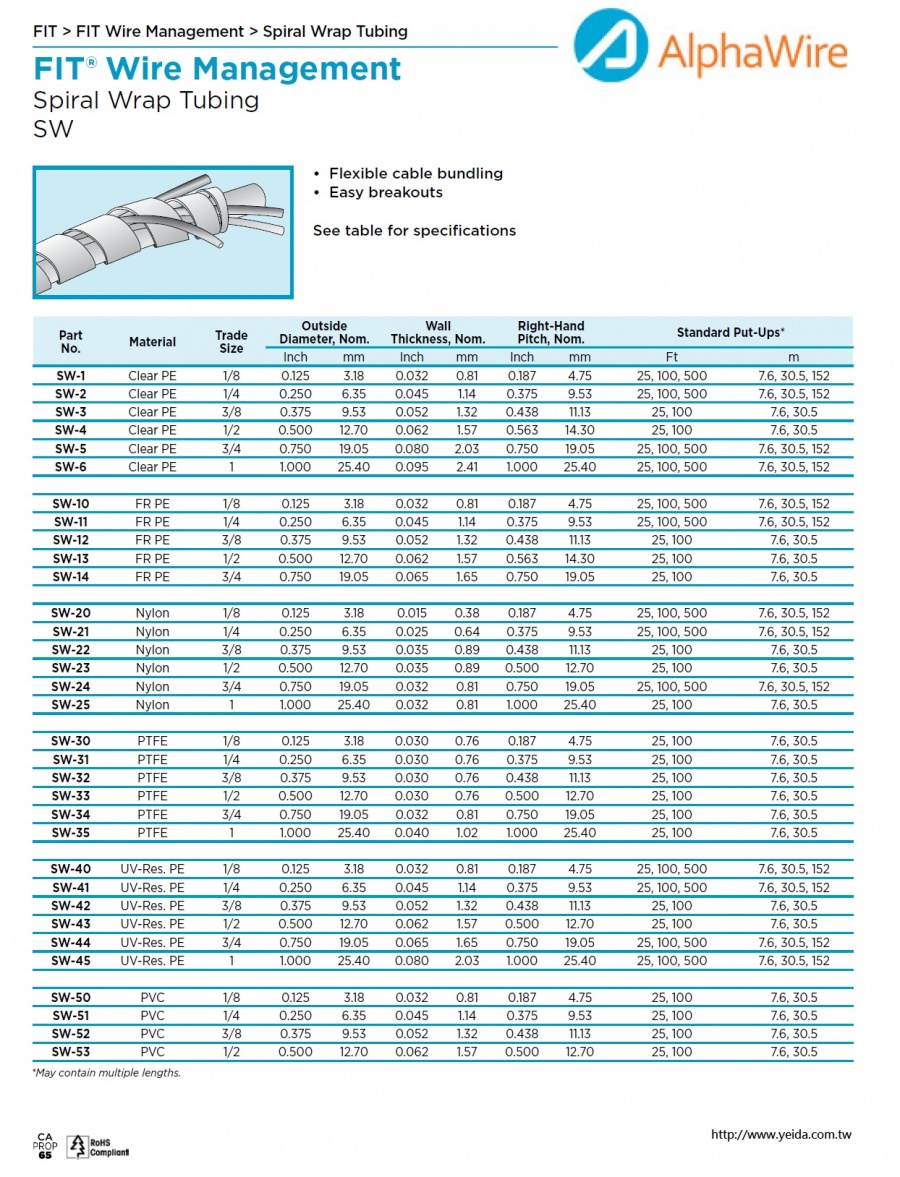

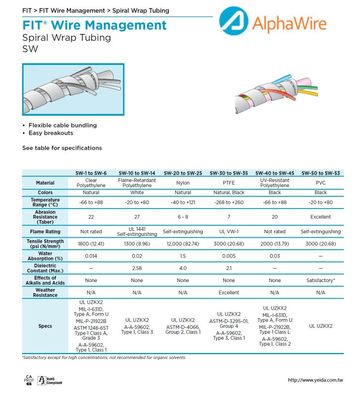

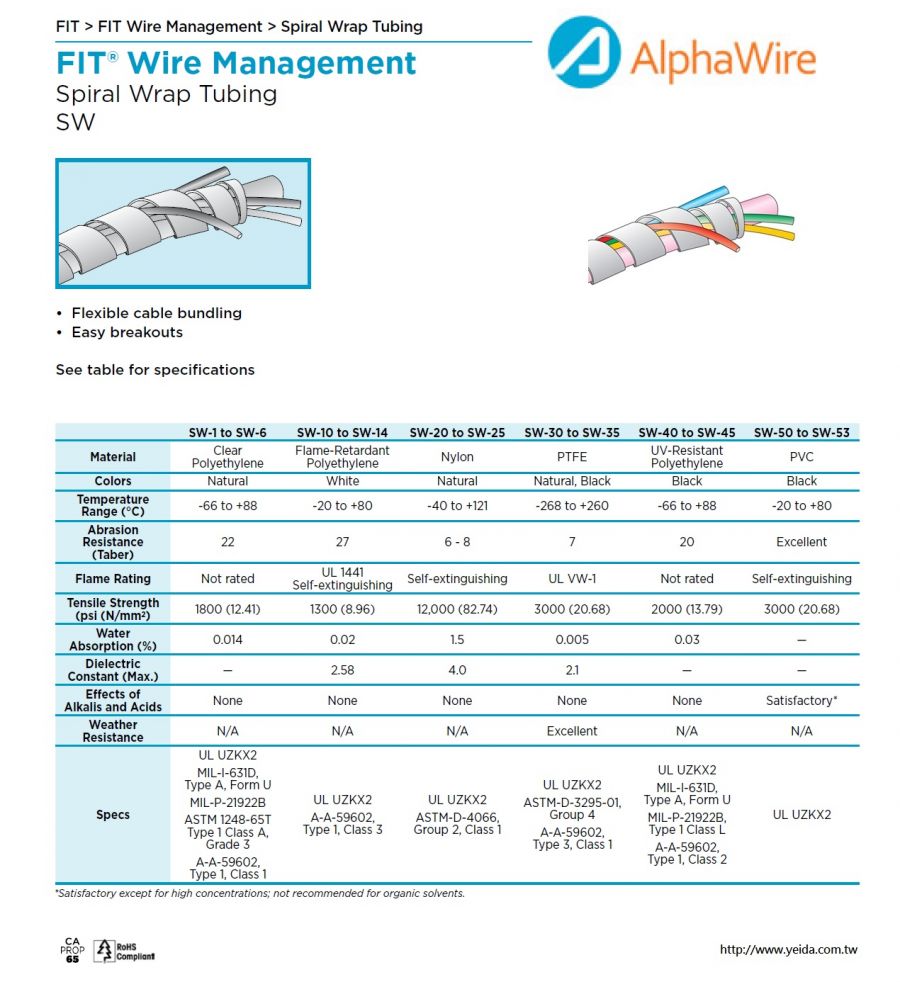

    Part # AWG / Shrink ratio Material C° Voltage #Elements Category Shielding Ratings
    SW1 n/a pe -60 to 88 n/a n/a Tubing/Accessories n/a ul uzkx2;mil_i_631d type a form u;mil_p_21922;astm 1248_65t type 1 class a grade 3;a_a_59602 type 1 class 1;rohs
    SW10 n/a pe -20 to 80 n/a n/a Tubing/Accessories n/a ul 1441;ul uzkx2;a_a_59602 type 1 class 3;rohs
    SW11 n/a pe -20 to 80 n/a n/a Tubing/Accessories n/a ul 1441;ul uzkx2;a_a_59602 type 1 class 3;rohs
    SW12 n/a pe -20 to 80 n/a n/a Tubing/Accessories n/a ul 1441;ul uzkx2;a_a_59602 type 1 class 3;rohs
    SW13 n/a pe -20 to 80 n/a n/a Tubing/Accessories n/a ul 1441;ul uzkx2;a_a_59602 type 1 class 3;rohs
    SW14 n/a pe -20 to 80 n/a n/a Tubing/Accessories n/a ul 1441;ul uzkx2;a_a_59602 type 1 class 3;rohs
    SW2 n/a pe -60 to 88 n/a n/a Tubing/Accessories n/a rohs;ul uzkx2;mil_i_631d type a form u;mil_p_21922;astm 1248_65t type 1 class a grade 3;a_a_59602 type 1 class 1
    SW20 n/a nylon -40 to 121 n/a n/a Tubing/Accessories n/a astm_d_4066 group 2 class 1;ul uzkx2;rohs
    SW21 n/a nylon -40 to 121 n/a n/a Tubing/Accessories n/a ul uzkx2;astm_d_4066 group 2 class 1;rohs
    SW22 n/a nylon -40 to 121 n/a n/a Tubing/Accessories n/a ul uzkx2;astm_d_4066 group 2 class 1;rohs
    SW23 n/a nylon -40 to 121 n/a n/a Tubing/Accessories n/a ul uzkx2;astm_d_4066 group 2 class 1;rohs
    SW24 n/a nylon -40 to 121 n/a n/a Tubing/Accessories n/a ul uzkx2;astm_d_4066 group 2 class 1;rohs
    SW25 n/a nylon -40 to 121 n/a n/a Tubing/Accessories n/a ul uzkx2;astm_d_4066 group 2 class 1;rohs
    SW3 n/a pe -60 to 88 n/a n/a Tubing/Accessories n/a a_a_59602 type 1 class 1;astm 1248_65t type 1 class a grade 3;mil_p_21922;mil_i_631d type a form u;ul uzkx2;rohs
    SW30 n/a ptfe -70 to 250 n/a n/a Tubing/Accessories n/a ul vw-1;ul uzkx2;astm_d_3295_01 group 4;rohs
    SW31 n/a ptfe -70 to 250 n/a n/a Tubing/Accessories n/a ul vw-1;ul uzkx2;astm_d_3295_01 group 4;rohs
    SW32 n/a ptfe -70 to 250 n/a n/a Tubing/Accessories n/a ul vw-1;ul uzkx2;astm_d_3295_01 group 4;rohs
    SW33 n/a ptfe -70 to 250 n/a n/a Tubing/Accessories n/a ul vw-1;ul uzkx2;astm_d_3295_01 group 4;rohs
    SW34 n/a ptfe -70 to 250 n/a n/a Tubing/Accessories n/a ul vw-1;ul uzkx2;astm_d_3295_01 group 4;rohs
    SW35 n/a ptfe -70 to 250 n/a n/a Tubing/Accessories n/a ul vw-1;ul uzkx2;astm_d_3295_01 group 4;rohs
    SW4 n/a pe -60 to 88 n/a n/a Tubing/Accessories n/a a_a_59602 type 1 class 1;astm 1248_65t type 1 class a grade 3;mil_p_21922;mil_i_631d type a form u;ul uzkx2;rohs
    SW40 n/a pe -60 to 88 n/a n/a Tubing/Accessories n/a ul uzkx2;mil_p_21922b type 1 class l;mil_i_631d type a form u;a_a_59602 type 1 class 2;rohs
    SW41 n/a pe -60 to 88 n/a n/a Tubing/Accessories n/a ul uzkx2;mil_i_631d type a form u;mil_p_21922b type 1 class l;a_a_59602 type 1 class 2;rohs
    SW42 n/a pe -60 to 88 n/a n/a Tubing/Accessories n/a ul uzkx2;mil_i_631d type a form u;mil_p_21922b type 1 class l;a_a_59602 type 1 class 2;rohs
    SW43 n/a pe -60 to 88 n/a n/a Tubing/Accessories n/a ul uzkx2;mil_i_631d type a form u;mil_p_21922b type 1 class l;a_a_59602 type 1 class 2;rohs
    SW44 n/a pe -60 to 88 n/a n/a Tubing/Accessories n/a ul uzkx2;mil_i_631d type a form u;mil_p_21922b type 1 class l;a_a_59602 type 1 class 2;rohs
    SW45 n/a pe -60 to 88 n/a n/a Tubing/Accessories n/a ul uzkx2;mil_i_631d type a form u;mil_p_21922b type 1 class l;a_a_59602 type 1 class 2;rohs
    SW5 n/a pe -60 to 88 n/a n/a Tubing/Accessories n/a a_a_59602 type 1 class 1;astm 1248_65t type 1 class a grade 3;mil_p_21922;mil_i_631d type a form u;ul uzkx2;rohs
    SW50 n/a pvc -20 to 80 n/a n/a Tubing/Accessories n/a rohs
    SW51 n/a pvc -20 to 80 n/a n/a Tubing/Accessories n/a rohs
    SW52 n/a pvc -20 to 80 n/a n/a Tubing/Accessories n/a rohs
    SW53 n/a pvc -20 to 80 n/a n/a Tubing/Accessories n/a rohs
    SW6 n/a pe -60 to 88 n/a n/a Tubing/Accessories n/a a_a_59602 type 1 class 1;astm 1248_65t type 1 class a grade 3;mil_p_21922;mil_i_631d type a form u;ul uzkx2;rohs
