    ALPHA-TFT-200 -75°C to +260°C Natural Flexible PTFE Thin-Wall Tubing防热和抗腐蚀阻燃和机械磨损鏈式管材
    看原圖
    		ALPHA-TFT-200




    商品編號: ALPHA-TFT-200

    ALPHA-TFT-200 -75°C to +260°C Natural Flexible PTFE Thin-Wall Tubing防热和抗腐蚀阻燃和机械磨损鏈式管材

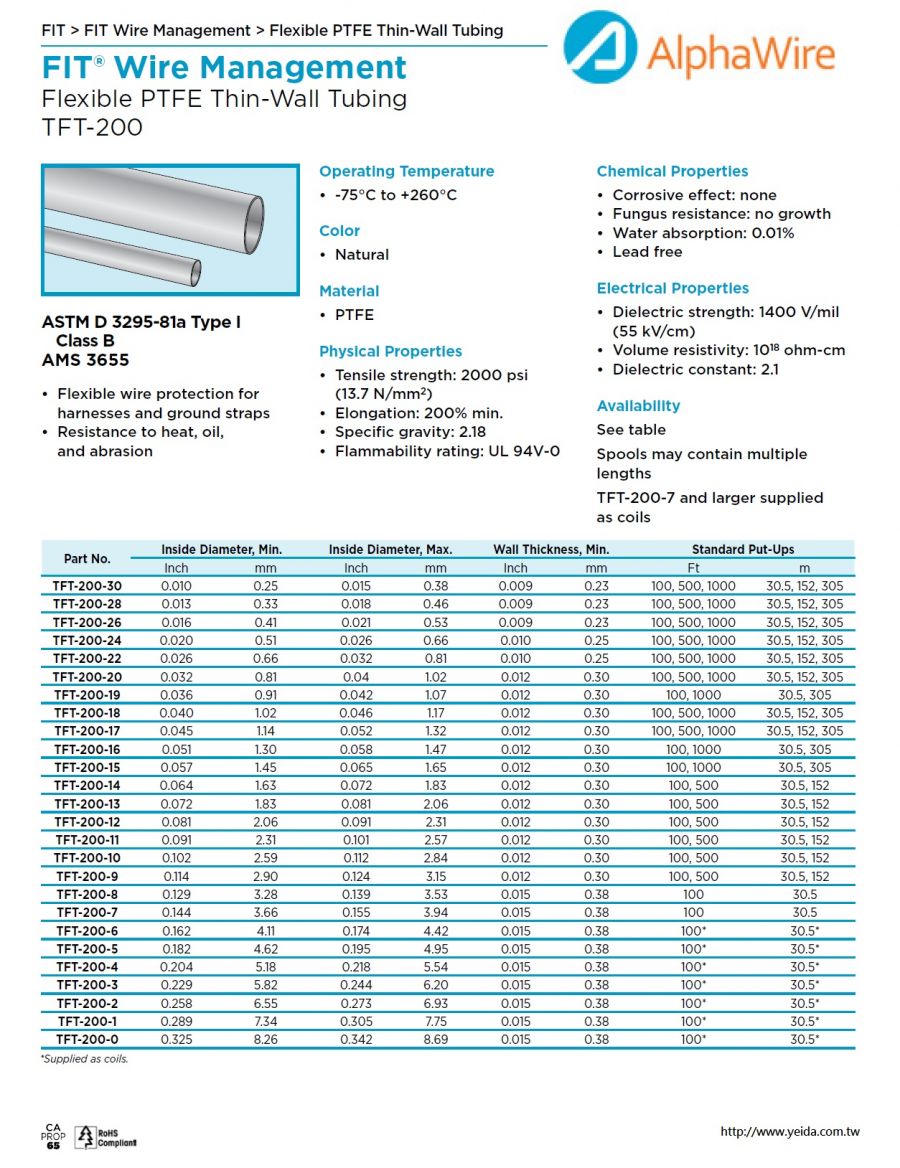

    FIT® Wire Management Flexible PTFE Thin-Wall Tubing
    TFT-200


    ASTM D 3295-81a Type I
    Class B
    AMS 3655
    • Flexible wire protection for harnesses and ground straps
    • Resistance to heat, oil, and abrasion
    Operating Temperature
    • -75°C to +260°C
    Color
    • Natural
    Material
    • PTFE
    Physical Properties
    • Tensile strength: 2000 psi (13.7 N/mm2)
    • Elongation: 200% min.
    • Specific gravity: 2.18
    • Flammability rating: UL 94V-0 Chemical Properties
    • Corrosive effect: none
    • Fungus resistance: no growth
    • Water absorption: 0.01%
    • Lead free
    Electrical Properties
    • Dielectric strength: 1400 V/mil (55 kV/cm)
    • Volume resistivity: 1018 ohm-cm
    • Dielectric constant: 2.1
    Availability
    See table
    Spools may contain multiple lengths
    TFT-200-7 and larger supplied as coils

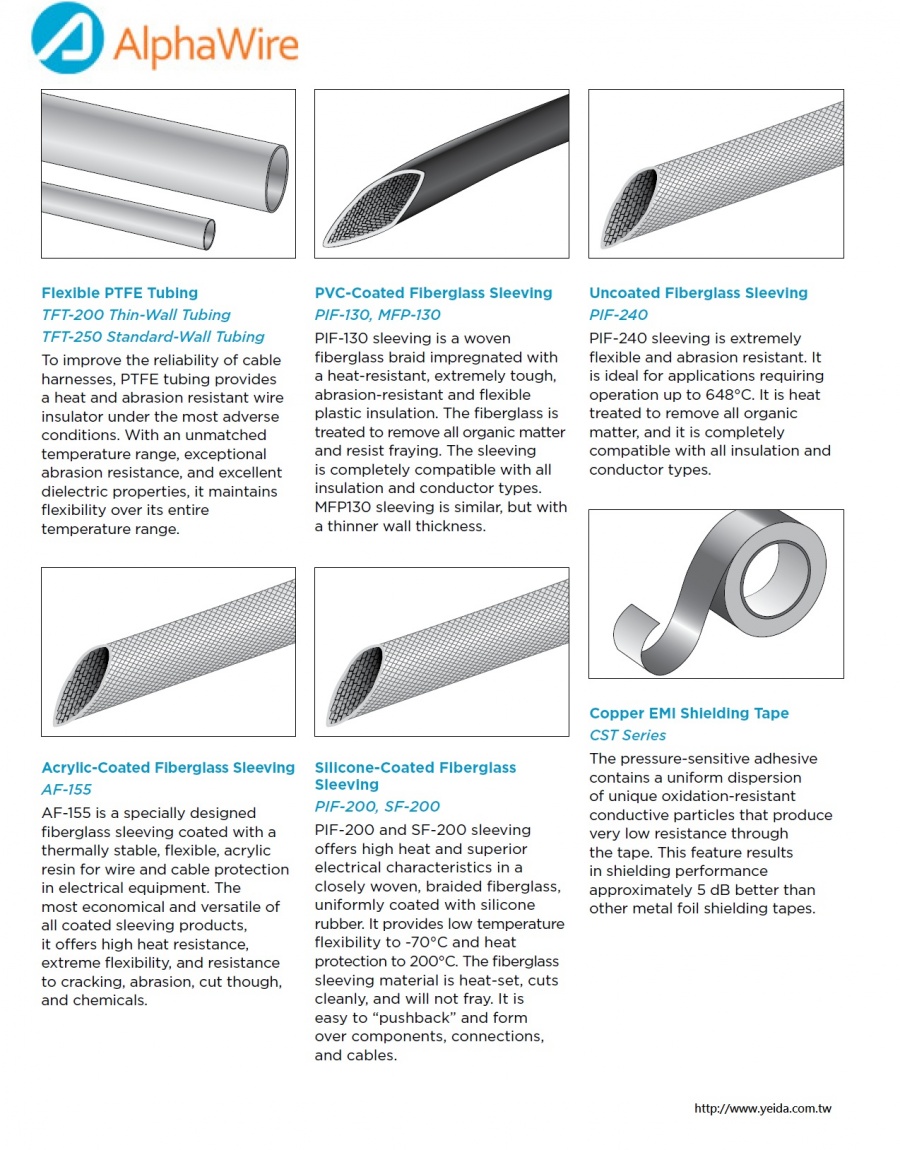

    Flexible PTFE Tubing
    TFT-200 Thin-Wall Tubing
    TFT-250 Standard-Wall Tubing


    To improve the reliability of cable
    harnesses, PTFE tubing provides
    a heat and abrasion resistant wire
    insulator under the most adverse
    conditions. With an unmatched
    temperature range, exceptional
    abrasion resistance, and excellent
    dielectric properties, it maintains
    flexibility over its entire
    temperature range.

    1.5:1

    Part # AWG / Shrink ratio Material C° Voltage #Elements Category Shielding Ratings
    FIT-500-8 1.5:1 ptfe -75 to 260 n/a n/a Tubing/Accessories no ams dtl-23053_12 class 3;ca prop 65;rohs
    TFT-200-0 n/a ptfe -65 to 260 n/a n/a Tubing/Accessories n/a astm d 3295
    TFT-200-1 n/a ptfe -65 to 260 n/a n/a Tubing/Accessories n/a astm d 3295
    TFT-200-10 n/a ptfe -65 to 260 n/a n/a Tubing/Accessories n/a astm d 3295
    TFT-200-11 n/a ptfe -65 to 260 n/a n/a Tubing/Accessories n/a astm d 3295
    TFT-200-12 n/a ptfe -65 to 260 n/a n/a Tubing/Accessories n/a astm d 3295
    TFT-200-13 n/a ptfe -65 to 260 n/a n/a Tubing/Accessories n/a astm d 3295
    TFT-200-14 n/a ptfe -65 to 260 n/a n/a Tubing/Accessories n/a astm d 3295
    TFT-200-15 n/a ptfe -65 to 260 n/a n/a Tubing/Accessories n/a astm d 3295
    TFT-200-16 n/a ptfe -65 to 260 n/a n/a Tubing/Accessories n/a astm d 3295
    TFT-200-17 n/a ptfe -65 to 260 n/a n/a Tubing/Accessories n/a astm d 3295
    TFT-200-18 n/a ptfe -65 to 260 n/a n/a Tubing/Accessories n/a astm d 3295
    TFT-200-19 n/a ptfe -65 to 260 n/a n/a Tubing/Accessories n/a astm d 3295
    TFT-200-2 n/a ptfe -65 to 260 n/a n/a Tubing/Accessories n/a astm d 3295
    TFT-200-20 n/a ptfe -65 to 260 n/a n/a Tubing/Accessories n/a astm d 3295
    TFT-200-22 n/a ptfe -65 to 260 n/a n/a Tubing/Accessories n/a astm d 3295
    TFT-200-24 n/a ptfe -65 to 260 n/a n/a Tubing/Accessories n/a astm d 3295
    TFT-200-26 n/a ptfe -65 to 260 n/a n/a Tubing/Accessories n/a astm d 3295
    TFT-200-28 n/a ptfe -65 to 260 n/a n/a Tubing/Accessories n/a astm d 3295
    TFT-200-3 n/a ptfe -65 to 260 n/a n/a Tubing/Accessories n/a astm d 3295
    TFT-200-30 n/a ptfe -65 to 260 n/a n/a Tubing/Accessories n/a astm d 3295
    TFT-200-4 n/a ptfe -65 to 260 n/a n/a Tubing/Accessories n/a astm d 3295
    TFT-200-5 n/a ptfe -65 to 260 n/a n/a Tubing/Accessories n/a astm d 3295
    TFT-200-6 n/a ptfe -65 to 260 n/a n/a Tubing/Accessories n/a astm d 3295
    TFT-200-7 n/a ptfe -65 to 260 n/a n/a Tubing/Accessories n/a astm d 3295
    TFT-200-8 n/a ptfe -65 to 260 n/a n/a Tubing/Accessories n/a astm d 3295
    TFT-200-9 n/a ptfe -65 to 260 n/a n/a Tubing/Accessories n/a astm d 3295
