    首頁 > > ALPHA-Tubing 管道

    ALPHA-TFT-250 -75°C to +260°C Natural Flexible PTFE Thin-Wall Tubing防热和抗腐蚀阻燃和机械磨损鏈式管材
    看原圖

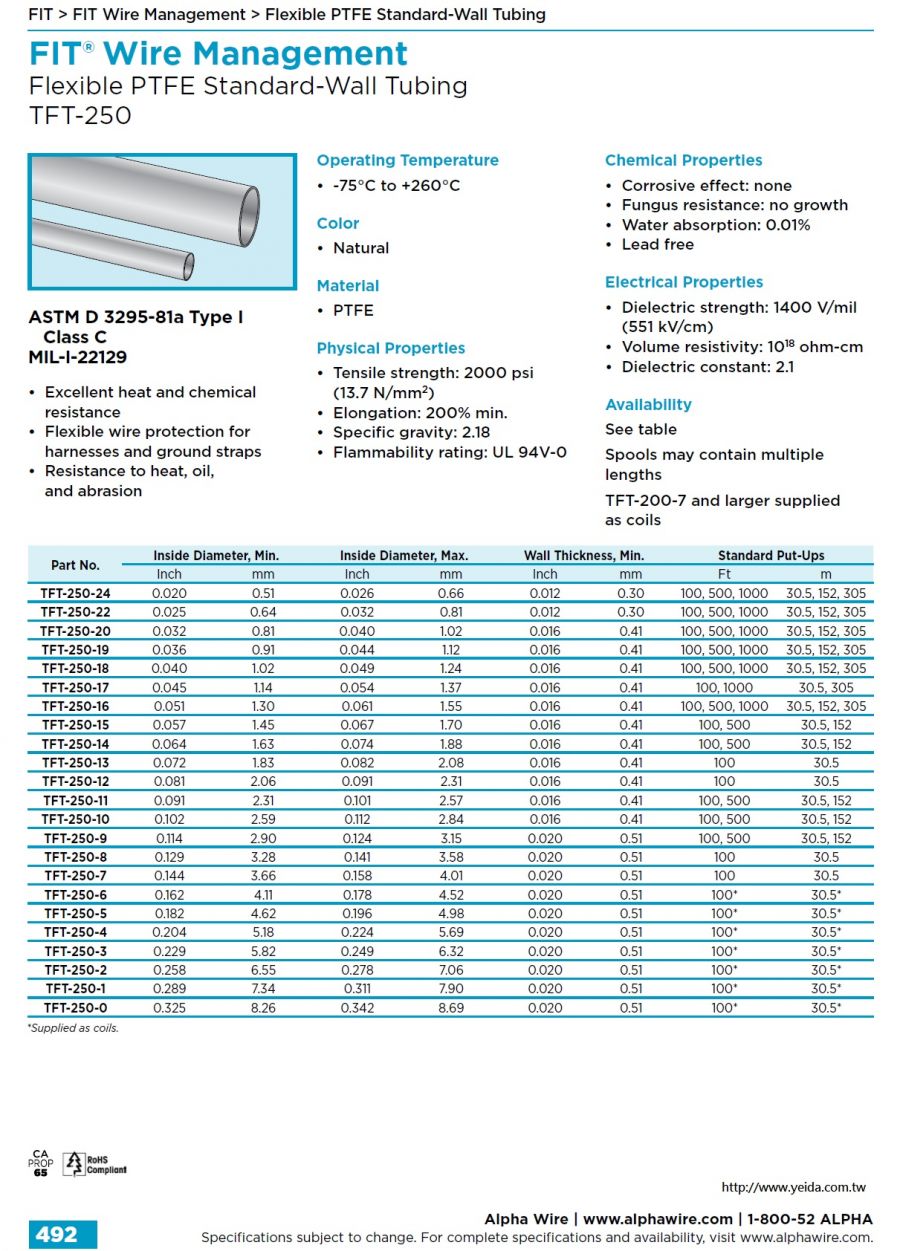

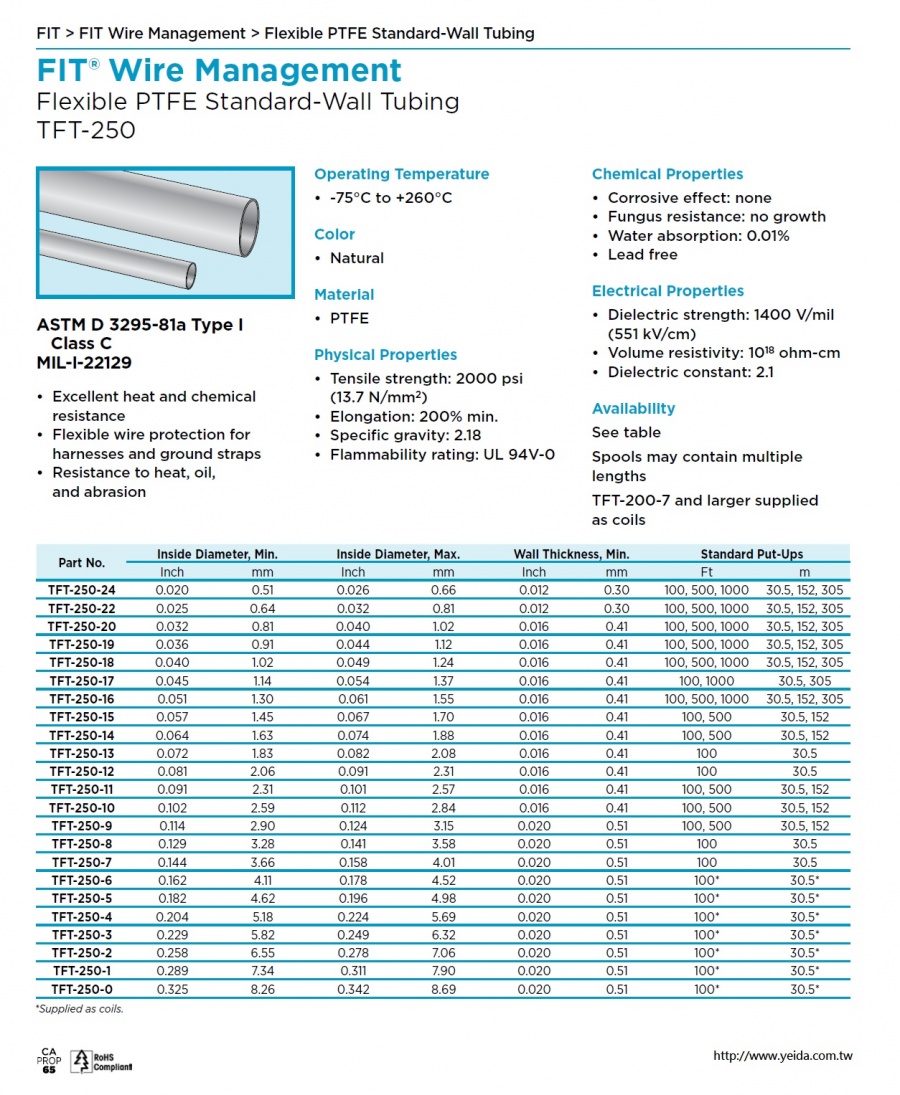

    		ALPHA-TFT-250


    商品編號: ALPHA-TFT-250

    ALPHA-TFT-250 -75°C to +260°C Natural Flexible PTFE Thin-Wall Tubing防热和抗腐蚀阻燃和机械磨损鏈式管材

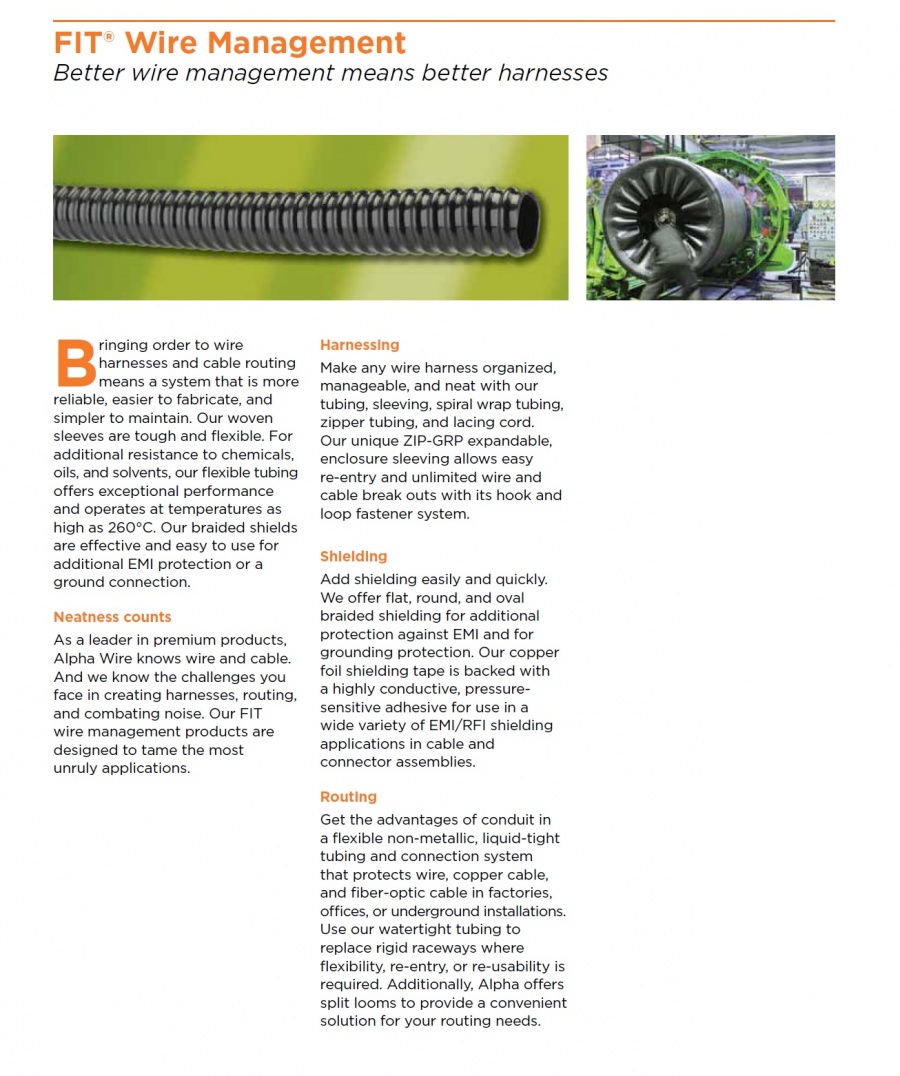

    FIT® Wire Management
    Flexible PTFE Standard-Wall Tubing
    TFT-250
    　

    ASTM D 3295-81a Type I
    Class C
    MIL-I-22129
    • Excellent heat and chemical resistance
    • Flexible wire protection for harnesses and ground straps
    • Resistance to heat, oil, and abrasion
    Operating Temperature
    • -75°C to +260°C
    Color
    • Natural
    Material
    • PTFE
    Physical Properties
    • Tensile strength: 2000 psi (13.7 N/mm2)
    • Elongation: 200% min.
    • Specific gravity: 2.18
    • Flammability rating: UL 94V-0 Chemical Properties
    • Corrosive effect: none
    • Fungus resistance: no growth
    • Water absorption: 0.01%
    • Lead free
    Electrical Properties
    • Dielectric strength: 1400 V/mil (551 kV/cm)
    • Volume resistivity: 1018 ohm-cm
    • Dielectric constant: 2.1
    Availability
    See table
    Spools may contain multiple lengths
    TFT-200-7 and larger supplied as coils

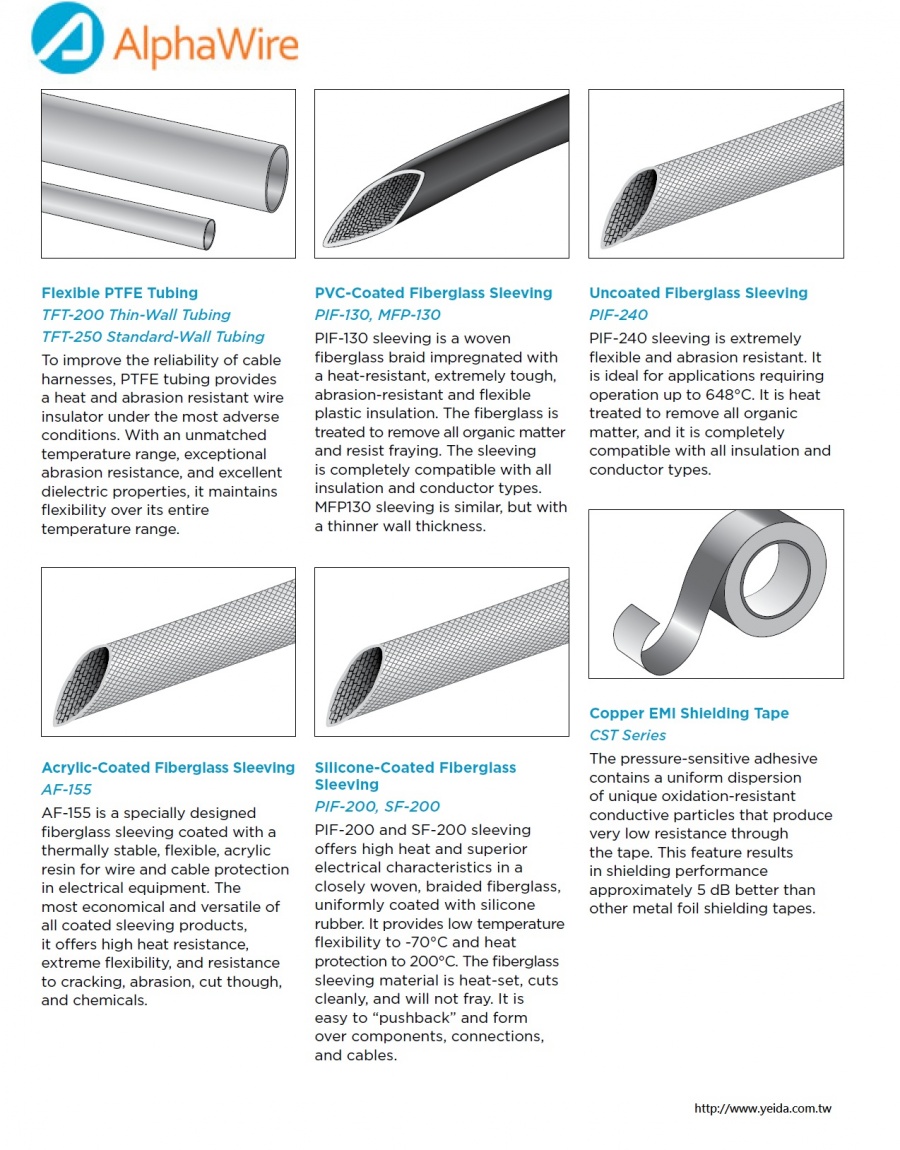

    Flexible PTFE Tubing
    TFT-200 Thin-Wall Tubing
    TFT-250 Standard-Wall Tubing


    To improve the reliability of cable
    harnesses, PTFE tubing provides
    a heat and abrasion resistant wire
    insulator under the most adverse
    conditions. With an unmatched
    temperature range, exceptional
    abrasion resistance, and excellent
    dielectric properties, it maintains
    flexibility over its entire
    temperature range.



    Part # AWG / Shrink ratio Material C° Voltage #Elements Category Shielding Ratings
    TFT-200-8 n/a ptfe -65 to 260 n/a n/a Tubing/Accessories n/a astm d 3295
    TFT-200-9 n/a ptfe -65 to 260 n/a n/a Tubing/Accessories n/a astm d 3295
    TFT-250-0 n/a ptfe -75 to 260 n/a n/a Tubing/Accessories n/a astm d 3295 type i;class c;reach regulation;mil-i-22129
    TFT-250-1 n/a ptfe -75 to 260 n/a n/a Tubing/Accessories n/a astm d 3295 type i;class c;reach regulation;mil-i-22129
    TFT-250-10 n/a ptfe -75 to 260 n/a n/a Tubing/Accessories n/a astm d 3295 type i;class c;reach regulation;mil-i-22129
    TFT-250-11 n/a ptfe -75 to 260 n/a n/a Tubing/Accessories n/a astm d 3295 type i;class c;reach regulation;mil-i-22129
    TFT-250-12 n/a ptfe -75 to 260 n/a n/a Tubing/Accessories n/a astm d 3295 type i;class c;reach regulation;mil-i-22129
    TFT-250-13 n/a ptfe -75 to 260 n/a n/a Tubing/Accessories n/a astm d 3295 type i;class c;reach regulation;mil-i-22129
    TFT-250-14 n/a ptfe -75 to 260 n/a n/a Tubing/Accessories n/a astm d 3295 type i;class c;reach regulation;mil-i-22129
    TFT-250-15 n/a ptfe -75 to 260 n/a n/a Tubing/Accessories n/a astm d 3295 type i;class c;reach regulation;mil-i-22129
