    ALPHA-ZIP-41 -20°C to +105°C PVC zipper tubing Loc-Trac® 防热和抗腐蚀阻燃和机械磨损鏈式管材
    看原圖
    		ALPHA-ZIP-41



    商品編號: ALPHA-ZIP-41

    ALPHA-ZIP-41 -20°C to +105°C PVC zipper tubing Loc-Trac® 防热和抗腐蚀阻燃和机械磨损鏈式管材

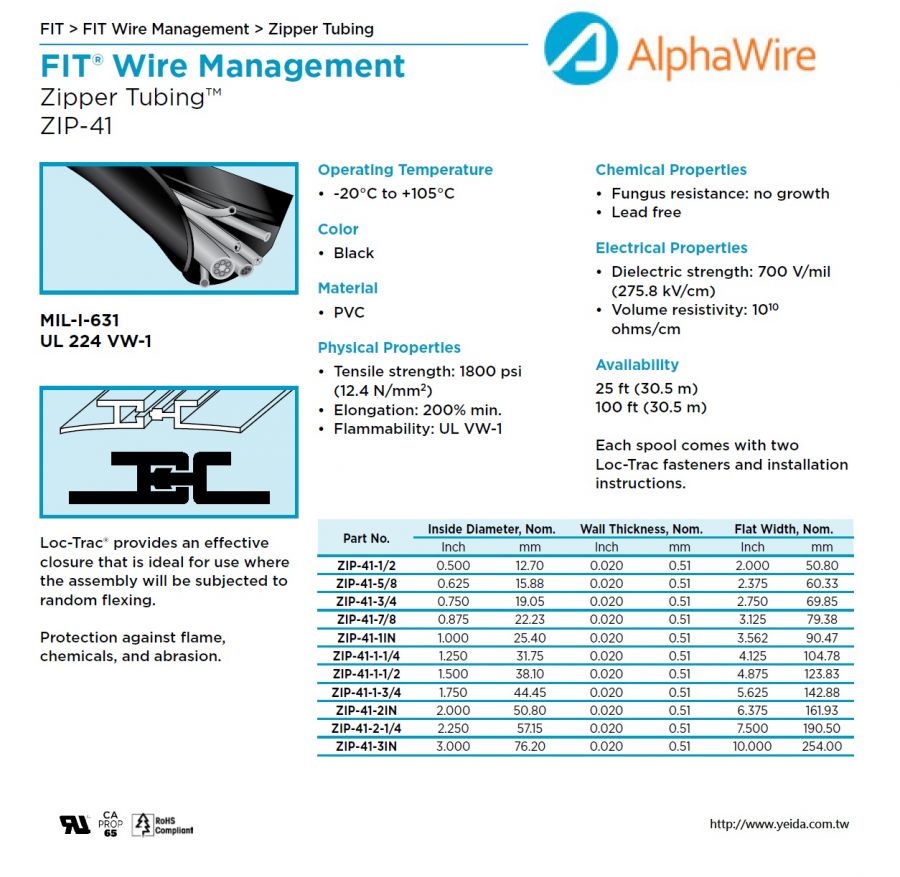

    FIT® Wire Management
    Zipper Tubing™
    ZIP-41
    　

    MIL-I-631
    UL 224 VW-1
    　

    Loc-Trac® provides an effective closure that is ideal for use where
    the assembly will be subjected to random flexing.
    Protection against flame, chemicals, and abrasion.
    Operating Temperature
    • -20°C to +105°C
    Color
    • Black
    Material
    • PVC
    Physical Properties
    • Tensile strength: 1800 psi
    (12.4 N/mm2)
    • Elongation: 200% min.
    • Flammability: UL VW-1
    Chemical Properties
    • Fungus resistance: no growth
    • Lead free
    Electrical Properties
    • Dielectric strength: 700 V/mil
    (275.8 kV/cm)
    • Volume resistivity: 1010
    ohms/cm
    Availability
    25 ft (30.5 m)
    100 ft (30.5 m)
    Each spool comes with two Loc-Trac fasteners and installation instructions.



    n/a
