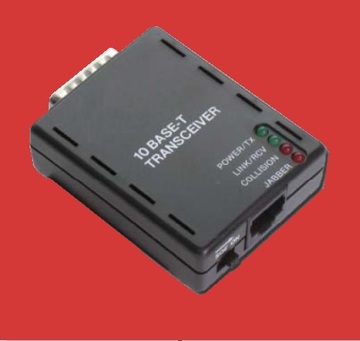

YD-10B5TTP 乙太網絡10Base-T轉10Base-5轉換器, Ethernet 10Base-T(RJ45) / 10Base-5(DB15) Transceiver
乙太網絡10B-T Transceiver |
■敘述
10Base-5轉10Base-T轉換器是在一種混合的介面環境裡被用於Ethernet 給有效的實施介面轉換。 這台袖珍的轉換器直接連接乙太網的PC 工作站和其他乙太網設備。 使用POWER/TX,
LINK/RCV, COLLISION, and JABBER 4 LED指示燈號顯示信號傳輸的過程中的狀況。轉換器不需要外接電源,並且包括用一個開關設定SQE測試的應用起作用及SQE功能的啟動或者關閉。 |
■特色
Interface:
Cable length:
Temperature:
Humidity:
Standard:
EMI:
Technique:
LAN Expansion:
Dimensions:
Topology:
Protocol:
PCB Material:
|
1xDB-15 Male to 10 Base-5
1xRJ-45 Jack to 10 Base-T
50 m max. per Transceiver cable
100 m max. per UTP segment
0 to 55 degree (standard operating)
10 to 90% (non-condensing)
IEEE 802.3 10Base-5,T
Meets FCC Class A Subpart B of Part15 Requirement
Baseband
Thinnet up to 30 stations
0.73" x 2.41" x1.92"
star
CSMA/CD
FR4 94-V0
|
|
■規格
|
■型號
P/N |
Description |
YD-10B5TTP |
Ethernet 10Base-T Transceiver |
|
