    首頁 > > 10Base數據網路光電轉換器 Data/Ethernet/Fiber Converter

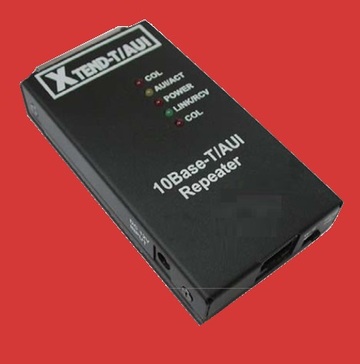

    YD-10BTT5R 乙太網絡10B-T / AUI Repeater Ethernet 10Base-T/AUI Repeater
    看原圖
    		YD-10BTT5R

    乙太網絡10B-T / AUI Repeater
    ■敘述

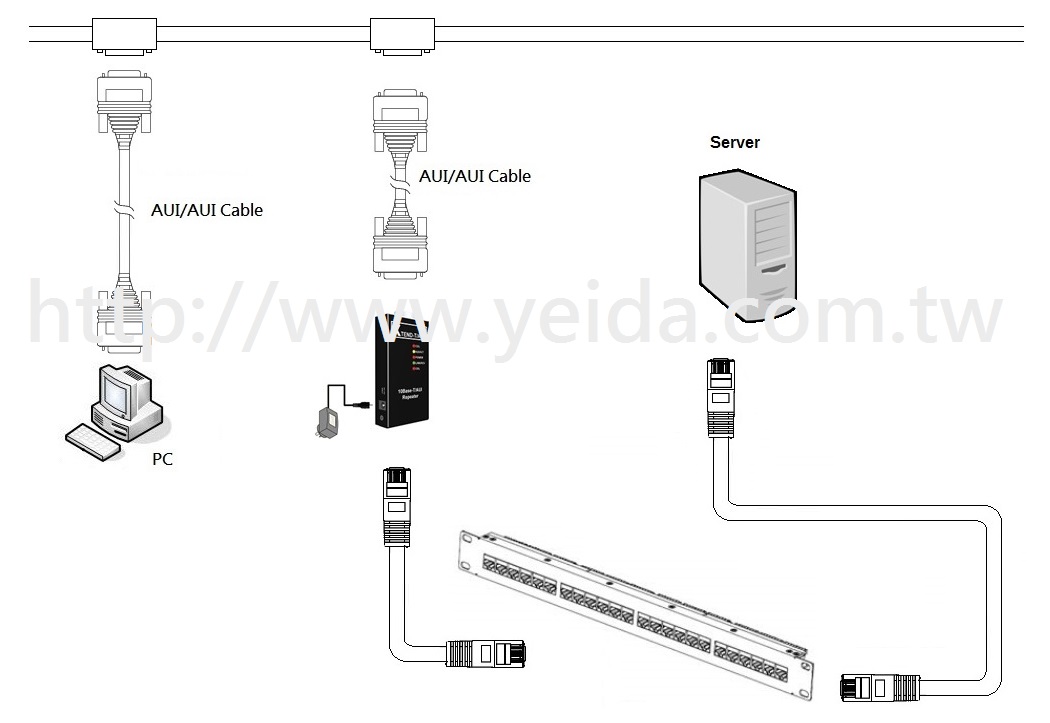

    Ethernet 10Base-T/AUI Repeater to connect your existing Thick Ethernet Network environment to a 10Base-T UTP network. The converter repeats signals from the Thick Ethernet to a suitable from for transmission over UTP wires to the 10Base-T HUB or similar HUB.
    ■特色
    　
    Interface:

    Cable length:

    LEDs:
    Temperature:
    Humidity:
    Standard:
    EMI:
    Technique:
    Dimensions:
    　    		 1xDB-15 female to 10 Base-T/AUI
    1xRJ-45 Jack to 10 Base-T
    500 m max. per Thick Ethernet
    100 m max. per UTP cables
    POWER, COL, LINK, TP/RCV 0 to 55 (standard operating)
    10 to 90% (non-condensing)
    IEEE 802.3 10Base-T/AUI Ethernet
    Meets FCC Class A Subpart B of Part15 Requirement
    Baseband
    4.2" x 2.2"x 0.8"
    　
    ■規格
    ．4 LEDs for Link, Collision, TP Receive.
    ．Power indicates light to troubleshooting & network maintenance.
    ．Includes external 12V DC/500 mA power adapter.
    ．Converts existing Thick Ethernet to a 10Base-T network.
    ．Conforms to IEEE 802.3 10 Base-T standards.
    　
    ■型號
    　
    P/N Description
    YD-10BTT5R Ethernet 10Base-T/AUI Repeater
