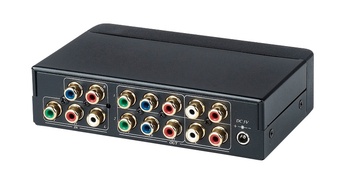

商品型號: YD02A
1進2出分量視頻&立體音頻分配放大器
商品規格:
- 一組 YPbPr (YUV) 影像輸入,二組 YPbPr 影像輸出
- 影像頻寬高達 400MHz
- 一組 RCA 立體聲輸入,二組 RCA 立體聲輸出
- 解析度支援480i、480p、576i、576p、720p、1080i、1080p
- 可堆疊功能
產品型號 |
YD02A |
支援解析度 |
480i,480p,576i,576p,720p,1080i,1080p. |
影像頻寬 |
400MHz |
輸入影像 |
RCA x 3:Y (75Ω,1.0 Vp-p),Pb Pr (75Ω,0.7 Vp-p) |
輸出影像 |
RCA x 6:Y (75Ω,1.0 Vp-p),Pb Pr (75Ω,0.7 Vp-p) |
聲音頻寬 |
DC-20KHz |
類比聲音輸入 |
RCA x 2 (10KΩ) |
類比聲音輸出 |
RCA x 4 (10KΩ) |
電源變壓器 |
DC 5V 500mA |
最大耗電流 |
300mA |
環境規格 |
工作溫度:0~55℃,儲存溫度:-20~85℃,相對濕度:最高95% |
尺寸 mm |
145 x 97 x 37 |
重量 g |
305 |
|
|
Product ID: YD02A
1 Input 2 Output Component Video Distribution Amplifier with Stereo Audio
Specifications:
YD02A is component video with analog stereo audio distribution amplifiers for AV signals. They can accept a component signal input from a DVD, projector and the output is amplified to allow connection of multi display monitors. All of them could be stackable for large displays.
Features:
- 1 x Input: component video and left, right audio.
- 2 x Output: component video and left, right audio.
- Support 480i, 480p, 576i, 576p, 720p, 1080i, 1080p.
- Video Bandwidth up to 400Mhz.
- Cascade connection several units for larger displays with great picture quality.
|
|
