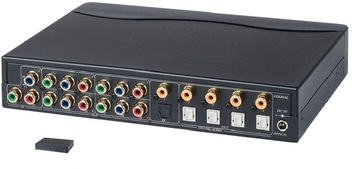

YSCT-YD04D 1進4出分量視頻&數字音頻分配放大器 1 Input 4 Output Component Video Distribution Amplifier with Digital/Optical Audio

YSCT-YD04D

商品型號: YD04D

1進4出分量視頻&數字音頻分配放大器

商品規格:

一組 YPbPr (YUV) 影像輸入，四組 YPbPr 影像輸出
影像頻寬高達 400MHz
一組數位聲音輸入，四組數位聲音輸出
解析度支援480i、480p、576i、576p、720p、1080i、1080p
可堆疊功能

產品型號	YD04D
支援解析度	480i，480p，576i，576p，720p，1080i，1080p.
影像頻寬	400MHz
輸入影像	RCA x 3：Y (75Ω，1.0 Vp-p)，Pb Pr (75Ω，0.7 Vp-p)
輸出影像	RCA x 12：Y (75Ω，1.0 Vp-p)，Pb Pr (75Ω，0.7 Vp-p)
聲音頻寬	DC-20KHz
電源變壓器	DC 5V 500mA
最大耗電流	300mA
環境規格	工作溫度：0～55℃，儲存溫度：-20～85℃，相對濕度：最高95%
尺寸 mm	225 x 167 x 40
重量　 g	825

Product ID: YD04D

1 Input 4 Output Component Video Distribution Amplifier with Digital/Optical Audio

Specifications:

YD04D is component video with Digital/Optical audio distribution amplifiers for AV signals. They can accept a component signal input from a DVD, projector and the output is amplified to allow connection of multi display monitors. All of them could be stackable for large displays.

Features:

1 x Input: component video.
4 x Output: component video.
Digital Audio: Coax or Optical option.
Support 480i, 480p, 576i, 576p, 720p, 1080i, 1080p.
Video Bandwidth up to 400Mhz.
Cascade connection several units for larger displays with great picture quality.

ITEM NO.	YD04D
Input Resolution	480i, 480p, 576i, 576p, 720p, 1080i, 1080p.
Video Bandwidth	400Mhz
Video Input (RCA)	Y (75Ω, 1.0Vp-p), PbPr (75Ω, 0.7Vp-p)
Video Output (RCA)	4 x Y (75Ω, 1.0Vp-p), PbPr (75Ω, 0.7Vp-p)
Audio Bandwidth	DC-20Khz
Audio Input	x
Audio Output	x
Digital Audio Input	Coaxial (RCA 75Ω) x 1, Optical x 1
Digital Audio Output	Coaxial (RCA 75Ω) x 4, Optical x 4
Power Supply	5V DC 500mA Regulated (External)
Power Consumption	300mA (Max)
Temperature	Operation: -10℃~45℃, Storage: -30℃~70℃
DIMENSIONS W x H x D mm	225x167x40
