YSCT-YE01D 無源分量視頻&數字音頻/IR紅外線雙絞線延長器 Component Video (YPbPr) & Digital Audio/IR CAT5 Extender

產品搜尋

分　類：
關鍵字：

首頁 > 宜大-CCTV/CATV寬頻.照明安全監控及電源管理.網通等器材 > YSCT-雙絞線同軸電纜影像聲音傳輸器材設備 > YSCT- 色差影音傳輸系列 Component Video & Audio Transmission

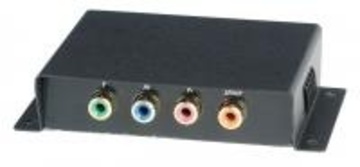

YSCT-YE01D 無源分量視頻&數字音頻/IR紅外線雙絞線延長器 Component Video (YPbPr) & Digital Audio/IR CAT5 Extender

YSCT-YE01D

商品型號: YE01D

無源分量視頻&數字音頻/IR紅外線雙絞線延長器

商品規格:

YE01D為被動式色差影像及數位同軸聲音之延伸套件
影像解析度最高可達 1080p
採用網路線傳輸色差影像傳輸距離最遠可達300公尺，數位聲音達180公尺
可利用開關切換數位音源與IR 紅外線之訊號傳輸

產品型號	YE01D
影像輸入端子	RCA x 3：Y (75Ω，1.0 Vp-p)，Pb Pr (75Ω，0.7 Vp-p)
聲音輸入	RCA x1
IR Pass through	2 芯插拔端子
支援解析度	480i /480p/720p/1080i/1080p
影像頻寬	Video: 60Mz, 3dB roll off, Digital Audio: 25MHz, 1dB roll off
傳輸介面	RJ45 x 1
電源變壓器	X
傳輸距離	Video:1080p at 50m, 480i at 300m SPDIF:180M
線材規格	CAT 5 網路線 (AWG24)
環境規格	工作溫度：0～55℃，儲存溫度：-20～85℃，相對濕度：最高95%
尺寸 mm	110 x 82 x 26
重量 g	200

Product ID: YE01D

Component Video (YPbPr) & Digital Audio/IR CAT5 Extender

Specifications:

The Component Video & Digital BALUN is designed for component video signal (Y, Pb, Pr) and one digital audio or IR signal be transmitted via cost effective one CAT5 UTP cable. Used in pairs, the Component Video/Digital Audio BALUN supports 480i/480p/720p/1080i/1080p video formats for hi-definition (HDTV) video application. Application for control rooms, multimedia rooms, communications centers, convention facilities, classroom video corporate projection system.

Features:

Designed for Component video and Digital Audio or IR pass through over one CAT5 UTP cable.
Passive device, no power need.
Up to 300 meters for video and 180 meters for Digital audio.
Support up to HDTV. ( 480i /480p/720p/1080i/1080p)
Perfect for DVD, VCR, DVR, TV, Satellite receivers, monitors, home theatre and other equipments supporting component video

ITEM NO.	YE01D
VIDEO INPUT (RCA Connector)	Green color for Y, Blue color for Pb, Red color for Pr,
Audio Input	RCA connector x1
IR Pass through	2 pin removable terminal
Support	480i /480p/720p/1080i/1080p
Bandwidth	Video: 60Mz, 3dB roll off, Digital Audio: 25MHz, 1dB roll off
Maximum Input	1.0Vp-p , 75 Ohms
Insert Loss video	1dB for 0.1Mhz. Gradually increasing to 3.0dB over the frequency range
Return Loss video	Greater than 15dB over the frequency range
Common Mode Rejection video	- 55db max.
Power	X
Distance	Video:1080p at 50m,480i at 300m SPDIF:180M
CABLE FOR RJ-45	Twisted Pair CAT 5 (AWG24)
Temperature	Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%
Dimensions W x H x D mm	7013344
Weight g	300
