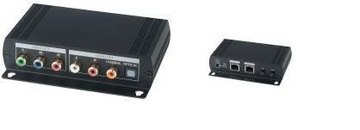

YSCT-YE02DALR 分量視頻+立體/數字音頻雙絞線延長接收器–具串接功能 Component Video with Stereo Audio CAT5 Receiver – Chainable function

YSCT-YE02DALR

商品型號: YE02DALR

分量視頻+立體/數字音頻雙絞線延長接收器–具串接功能

商品規格:

YE02DALR為配合YE02DALT所組成主動色差影像及聲音傳輸套件的接收端
採用網路線傳輸，同時傳輸影像與聲音，傳輸距離最遠可達300公尺
一組RJ45串接輸出，可供串接下一台YE02DALR，具備LPCM 44.1K / 48K 16bit立體聲解碼能力，數位及類比可同時輸出
支援杜比數位(AC3)與DTS數位輸出(直通)

產品型號	YE02DALR
最高支援解析度	1080p
影像頻寬	150MHz (-3dB)
影像輸出	RCA x 3：Y (75Ω，1.0 Vp-p)，Pb Pr (75Ω，0.7 Vp-p)
類比聲音輸出	RCA x 2 (10KΩ)，3 Vp-p (Max)
數位聲音輸出	Coaxial RCA x 1 (75Ω)，Optical x 1
連線端子	RJ45 x 1
環路輸出端子	RJ45 x 1
最遠傳輸距離	300公尺
電源變壓器	DC 5V 2A
最大消耗電流	800mA
尺寸 mm	125 x 95 x 30
重量 g	265

Product ID: YE02DALR

Component Video with Stereo Audio CAT5 Receiver – Chainable function

Specifications:

YE02DAL is designed for Component Video +Stereo Audio, Digital Audio signal over cost effective CAT5 cable to instead of Component Video and Audio cable. YE02DAL receiver built in chainable output to cascade the other receiver for working range over 300 meters. It is optimum video performance under long cable run and perfect for multiple monitor display.

This AV Extender is the smart, fast and cost-effective, eliminates costly and bulky Component Video and Audio cable and the most efficient way to move multimedia content from player to display. Used in pairs, the Component Video & Audio Extender is used in shopping malls, public address systems, airports, train & bus station, boardrooms, trade shows, computer based training application.

Features:

Work with YE02DALT as receiver for extra remote component Video display equipment.
It could be daisy chained for another YE02DALR to extended working range over 300 meters and multiple displays.
Built in equalization, gain adjustment.
Supports up to 1080p.
Built in LPCM 44.1K / 48K 16Bit stereo audio decode function, digital & analog audio could be output simultaneously.
Support Dolby Digital (AC3) & DTS digital output. (pass through).

ITEM NO.	YE02DALr
Resolution	Up to 1080p
Video Bandwidth	150Mhz-3dB
Video Output	Y/Pb/Pr RCA x 1 (Y 1V p-p 75Ω．Pb 0.7V p-p 75Ω．Pr 0.7V p-p 75Ω)
Audio Output	Analog audio output: L-R stereo audio RCA x 1( 3Vp-p Max.10KΩ) Digital Audio output: Optical x1, RCA coax x 1
Link Connector	1 x RJ45
Loop output Connector	1 x RJ45
Max Distance	Up to 300M (1000 feet)
Power Supply	5V DC 2000mA Regulated (External)
Power Consumption	600mA (Max)
Dimensions (mm)	125 x 95 x 30
Weight (g)	280
