商品型號: YE02DALS
分量視頻+立體/數字音頻雙絞線延長接收器–(內置YPbPr偏移調整)
商品規格:
- YE02DALS為配合YE02DALT所組成主動色差影像及聲音傳輸套件的接收端
- 採用網路線傳輸,同時傳輸影像與聲音,傳輸距離最遠可達300公尺
- 一組RJ45串接輸出,可供串接下一台YE02DALR/YE02DALS,具備LPCM 44.1K / 48K 16bit立體聲解碼能力,數位及類比可同時輸出
- 支援杜比數位(AC3)與DTS數位輸出(直通)
- 具備YPbPr偏移調整,加強長距離傳輸之影像品質

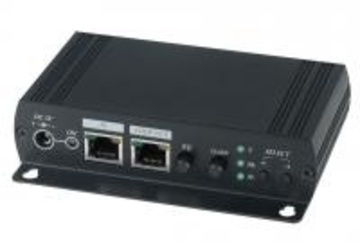

Product ID: YE02DALS
Component Video & Stereo/Digital Audio CAT5 Receiver– Built in Skew Corrector
Specifications:
YE02DAL is designed for Component Video +Stereo Audio, Digital Audio signal over cost effective CAT5 cable to instead of Component Video and Audio cable. YE02DALS receiver built in chainable output to cascade the other receiver for working range over 300 meters. It is optimum video performance under long cable run and perfect for multiple monitor display.
This AV Extender is the smart, fast and cost-effective, eliminates costly and bulky Component Video and Audio cable and the most efficient way to move multimedia content from player to display. Used in pairs, the Component Video & Audio Extender is used in shopping malls, public address systems, airports, train & bus station, boardrooms, trade shows, computer based training application.
Features:
- Work with YE02DALT CAT5 VGA transmitter as a high quality receiver.
- Built in RGB skew adjustment for the optimum video performance under long cable run.
- It could be daisy chained for another YE02DALS to extended working range over 300 meters and multiple displays.
- Support analog stereo audio and digital audio.
- Digital transmission on analog stereo audio for sound undistorted. (Dolby Digital,AC3, DTS passed through)
- Supports hi resolution up to 1080p.
- Long range transmission up to 300 meters (Max.)
- Built in LPCM 44.1K / 48K 16Bit stereo audio decode function, digital & analog audio could be output simultaneously.
- Support Dolby Digital (AC3) & DTS digital output. (pass through).
|
|
|
