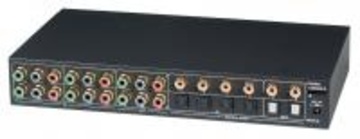

YSCT-YS04MD 4進2出分量視頻&數字音頻矩陣切換器 4 Input 2 Output Component Video Switcher With Digital Audio

YSCT-YS04MD

商品型號: YS04MD

4進2出分量視頻&數字音頻矩陣切換器

商品規格:

具有 4 組色差及數位聲音輸入及 2 組輸出
2 組輸出可獨立設定對應不同輸入
具有自動掃瞄功能 (Auto Scan)，在無信號輸入時自動選擇下一個有信號之輸入
具有自動跳台功能 (Auto Jump)，在有新影像輸入時自動選擇到該輸入
影像解析度最高支援至 1080p
可調整 LED 顯示亮度，不會影響或干擾使用投影機時的影片觀看
可由面板按鍵或 IR 遙控器操作
可加裝 USB、RS-232 或 RS-485 遠端遙控套件，由遠端 PC 遙控(套件為選購品)

產品型號	YS04MD
解析度	1080p (Max)
影像頻寬	0-500MHz (-3dB)
影像輸入	RCA x 12：Y (75Ω，1.0 Vp-p)，Pb Pr (75Ω，0.7 Vp-p)
影像輸出	RCA x 6：Y (75Ω，1.0 Vp-p)，Pb Pr (75Ω，0.7 Vp-p)
聲音頻寬	0-100KHz (-3dB)
數位聲音輸入	Coaxial RCA x 4 (75Ω)，Optical x 4
數位聲音輸出	Coaxial RCA x 2 (75Ω)，Optical x 2
消耗電流	500mA (Max)
電源變壓器	DC5V 1A
尺寸 mm	253 × 145 × 40
重量 g	870

Product ID: YS04MD

4 Input 2 Output Component Video Switcher With Digital Audio

Specifications:

Our component video switcher allows four different component video and digital audio sources to share two video displays. Manage multiple video sources manually or remotely with this convenient unit.

Features:

HDTV Compatible at 720p/1080i/1080p.
Connect up to 4 A/V sources to two display monitors.
4 set component video and digital audio input.
2 set component video and digital audio output.
Each display can view any input independently.
Built in auto scan switching input function, to automatically select the next one with the signal of the input.
Built in auto jump function, to automatically select the new video input.
LED display shows which input is selected for each of the 2 outputs.
Built in setup memory function.
Built in 2 sets of 2 buttons for channel change.
Easy to use front panel control of switching or using the included remote control.
The switcher box is the ideal for all of devices, offering both high-definition video and audio switching capability.
PC Remote control option: USB、RS-232 or RS-485 terminal devices. (Order separately).

ITEM	YS04MD
Resolution	1080p (Max)
Video Bandwidth	0-500MHz (-3dB)
Video Input / Output	Y 75Ω 1Vp-p, Pb 75Ω 0.7Vp-p, Pr 75Ω 0.7Vp-p
Video Connector	RCA
Audio Bandwidth	0-100Khz (-3dB)
Audio Input / Output	10KΩ, 3Vp-p (Max)
Audio Connector	Coax: 75Ω, RCA Optical: Toslink
Power Supply	5V DC 1000mA Regulated (External)
Power Consumption	500mA (Max)
Dimensions	253×145×40 (mm)
Shipping Weight	870 g
