    首頁 > > YSCT-VGA傳輸系列 VGA Transmission

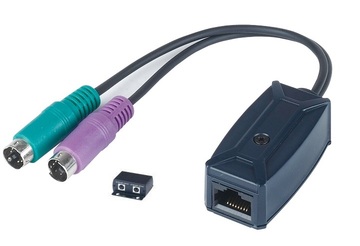

    KM01 鍵盤、鼠標雙絞線延長器- PS/2接口 Keyboard Mouse CAT5 Extender
    看原圖
    		代碼 YSCT-KM01

    CAT5 Keyboard Mouse Extender (鍵盤 & 滑鼠傳輸器) PS/2 Interface Max 100M
    商品型號: KM01

    鍵盤、鼠標雙絞線延長器- PS/2接口

    商品規格:
    • 使用一條網路線延長PS/2鍵盤和滑鼠
    • 電腦端KM01R：PS/2轉RJ45，鍵盤滑鼠端KM01T：RJ45轉PS/2
    • 不需使用外加電源
    • 傳輸距離最遠可達100公尺
    　
    產品型號 KM01T KM01R
    頻寬 DC to 1MHz
    傳輸訊號 滑鼠數據/時脈，鍵盤數據/時脈，VCC，接地
    連接線材 CAT 5 網路線 (24AWG)
    最遠傳輸距離 100 公尺
    RJ45 腳位定義 鍵盤：Pin 1，Pin 2，滑鼠：Pin 7，Pin 8
    環境規格 工作溫度：0～55℃，儲存溫度：-20～85℃，相對濕度：最高95%
    輸入/輸出介面 PS/2 x 2 PS/2 x 2
    傳輸介面 RJ45 x 1 RJ45 x 1
    尺寸 mm 67 x 70 x 27 53 x 25 x 20.7 + 170 mm 線
    重量 g 110 35
    Product ID: KM01

    Keyboard Mouse CAT5 Extender
    It is designed for standard PS/2 keyboard and mouse to be connected to a PC up to 100 meters over CAT5 UTP able. Used in pairs and easy connection. Applications for classroom projector systems, , boardroom systems, collaborative PC systems and medical information systems.

    Specifications:
    • Input: PS/2 keyboard/mouse
    • Bandwidth: DC to 1Mhz
    • Link Signals Mouse data, mouse clock, keyboard data, keyboard clock, VCC, ground
    • Distance:106 meters (Max.)
    • Cable: CAT5 cable
      • RJ45 Pin Configuration
      • Keyboard: pin 1, pin 2
      • Mouse: pin 7, pin8
    • Color Code Keyboard: Purple, Mouse: Green
    • Temperature Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%
      • Dimensions W x H x D mm KM01T：43*67*27, KM01R:69x25x22
      • Weight:KM01T：100g, KM01R：35g
    Features:
    • Send PS/2 Keyboard and mouse via one CAT5 UTP cable.
    • Including transmitter : Dual 6 pin mini DIN male for keyboard/mouse side to RJ45 and Receiver: Dual 6 pin mini DIN female with 6” lead for PC side to RJ45
    • Passive, no power required.
    • Transmission range up to 100 meters.
