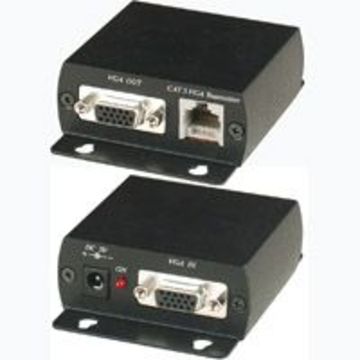

CAT5 VGA VGA 1進2出視頻雙絞線延長分配器 CAT5 VGA 1 INPUT 2 OUTPUT LONG RANGE DISTRIBUTOR

代碼 YSCT-VD102

商品型號: VD102

VGA 1進2出視頻雙絞線延長分配器

商品規格:

一組近端輸出，另一組遠端經網路線延伸距離輸出
最遠傳輸距離可達300公尺
接收器可調對比及亮度
VGA最高解析度可達1600 x 1200 @ 85 Hz
1套VE02含1個發射器VE02T及1個接收器VE01R
可另選購接收器：VE02DALS (解決長距離傳輸影像偏移問題)

產品型號	VE02T
最高支援解析度	1600 x 1200 @ 85 Hz
最遠傳輸距離	300公尺
影像頻寬	150MHz
影像輸入訊號	RGB 類比 (75Ω，0.7Vp-p)，同步信號，水平/垂直分離 (TTL)
水平頻率	30 ~ 95KHz
垂直頻率	50 ~ 180Hz
影像輸入/輸出介面	DB15 x 2
傳輸介面	RJ45 x 1
最大消耗電流	350mA
電源變壓器	DC 5V 1A
環境規格	工作溫度：0 ~ 55℃，儲存溫度：-20 ~ 85℃，相對濕度：最高 95%
尺寸 mm	67 x 73 x 27
重量　g	140

Product ID: VD102

CAT5 VGA 1 INPUT 2 OUTPUT LONG RANGE DISTRIBUTOR

Specifications:

VE02 is designed for long range VGA distribution over cost effective CAT5 UTP cable. One or multi video input to multi output, with one VGA LOOP output (VGA cable) for local side, others are RJ45 output (CAT5 UTP cable) at remote side. All of them built in amplifiers for long- range VGA signal transmission up to 300 meters when work with VE01-R VGA receiver at remote side. Ideal for classrooms video distribution, lecture halls, retail kiosks, video information displays, overhead projector systems, PC-training systems, and tradeshows PC demo systems.

Features:

Each set including one piece VD102-T transmitter and one piece TTA111VGA-R receiver.
Dual output: 1 VGA loop output for local, plus 1 CAT5 RJ45 output for remote side.
Built in contrast, brightness adjustment at Receiver.
Supports up to 1600x1200 @85Hz.
Use CAT5 cable instead of VGA cable.
Long range transmission up to 300 meters (Max.).
Power supply included.

ITEM NO.	VE02
Support Resolution	Up to 1600 x 1200 @ 85 Hz
Transmission Distance	Up to 1000 ft. (300 m)
Video Amplifier Bandwidth	150MHz
Video Input Signals	RGB Analog (75Ω, 0.7Vp-p)
Video Input Signals	Sync Signal H/V Separated (TTL)
Horizontal Frequency Range	30-95KHz
Vertical Frequency Range	50-180Hz
VGA Connector	15-pin Mini D-Sub (High Density)
Link Connector	1 x RJ-45
Power Supply	VD102-T, VD105-T, TTA111VGA-R: 5V DC 1Amp (External)
Power Consumption	VD102-T: 500mA (Max) , VD105-T: 500mA (Max), TTA111VGA-R: 400mA (Max)
Temperature	Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%
Dimensions W x H x D mm	VD102-T: 67x27x73, VD105-T: 125mm x 95mm x 30mm TTA111VGA-R: 67x27x110 mm
Weight g	VD102-T: 200 g, VD105-T: 270g ,TTA111VGA-R:200g
