商品編號: SY-Attenuators

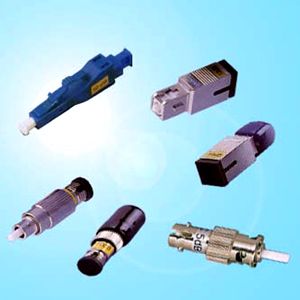

SC, FC, ST, LC, MTRJ, MU, Fiber Attenuators 光纖衰減器
SC,FC,ST,LC,MTRJ,MU
Products Description:
The attenuators are built in with wavelength independent optical filters and feature high power endurance and low PDL. These products are suitable for high speed transmission.
|
Parameter
|
Condition
|
Single
|
Multi
|
Mode
|
Mode
|
Attenuation
|
PC
|
1~20dB
|
1~20dB
|
Value
|
APC
|
1~20dB
|
|
Return Loss
|
PC
|
45dB
|
45dB
|
UPC
|
55dB
|
-
|
APC
|
65dB
|
-
|
Attenuation
|
-
|
1~9dB@ +0.5
|
Accuracy
|
10~20dB@ +1.0
|
|
21~30dB@ +1.5
|
Operating
|
-
|
-40 ~+75
|
Temperature
|
PDL
|
-
|
0.1dB
|
Wavelength
|
-
|
1310nm or 1550nm
|
|
 |
|
