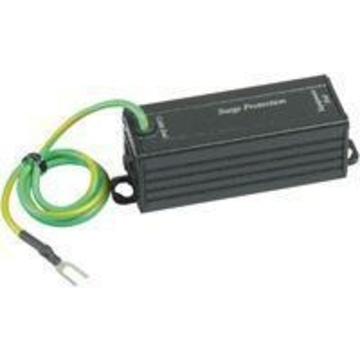

    YSCT-SP006P 以太網絡電湧保護器 PoE Surge Protector
    看原圖
    		YSCT-SP006P

    商品型號: SP006P

    以太網絡電湧保護器

    商品規格:
    • 為PoE應用（乙太網路供電）的保護
    • RJ45插座轉RJ45插座
    • 電源和訊號保護
    • 10/100 Base-T相容
    • 相容802.3af
    • 支援Mid-Span及End-Span
    　
    產品型號 SP006P
    Surge 保護時間 1 ns
    最大 Surge 電壓 4 KV
    Surge 壽命 300 surges of 100Amps
    同軸電覽阻抗 10,000 MΩ
    Surge 阻抗 Approx. 0Ω
    帶通頻寬 0~1 GHZ
    插入損耗 < 0.2 dB
    回波銷耗 (75Ω) 16dB
    輸入/輸出連接介面 RJ45 x 2
    尺寸 mm 88.8 x 25.4 x 25.4
    重量 g 80
    Product ID: SP006P

    PoE Surge Protector

    Specifications:

    SP006P designed to protect Power-Over-Ethernet (POE) data/communication lines in local and wide area networks up to 100 Base-T transmission speeds.

    Features:
    • Performs a different function than grounding requirements.
    • Protects equipment from high voltage surges from nearby lightning strikes.
    • RJ45 Jack to RJ45 Jack
    • Power and signal line protection.
    • 10/100 Base-T CAT5/CAT5e compatible.
    • 802.3af POE (Power over Ethernet) compatible.
    • Application for POE (Power over Ethernet) protection.
    　
    Item No. SP006P
    Surge Protection Attack Time 1 nanoseconds
    Maximum Surge Voltage 4 KV
    Surge Life 300 surges of 100Amps
    Normal Resistance Across Coax 10,000 MΩ
    Surge Resistance Approx. 0Ω
    BAND PASS 0~1 GHZ
    Insertion Loss Less than 0.2 dB
    Return Loss (75 ohms) 16dB
    Connectors RJ45
    Dimensions mm 85x25.4x25.4 mm
    WEIGHT g 80
