1.材質:銅、鋁、鋅、不鏽鋼合金...等2.顏色:金屬本色或其他業主指定烤漆顏色
3.連線或離線:連線型採 Rs-485, TCP/IP 通信格式
4.感應規格:mifare, temic or other radio frequency
1. Material: copper, aluminum, zinc, stainless steel, alloy ... etc.
2. Color: Metallic original color or BY ORDER
3. Online: Rs-485,TCP/IP or Stander Alone
4. Chip Sensor Specifications: mifare, temic or other radio frequency
² Features
Stand-alone & Wireless system door lock: WISPRO® intelligent lock have two type : one is stand-alone type, it is requires no wiring, adopts the RF card of USA TEMIC® company or RF card of PHILIPS® company to perform control function and unlocking function, is completely independent and stand-alone, is controlled by program resident in the lock and activated by cards which are coded by issuing computer. All of these make installation and maintenance becomes simple and easy.
The other one is on-line type. The manager can manage & maintain the system though the wire, and get the immediately respond from door lock. If you have over fifty room need manage efficiently and discount manpower cost. We suggest you choice the on-line system strongly. For example, if you own a hotel have 300 rooms, and one day your floor manager lost his key card, what will you do? If you choice the on-line system, you won’t worry about it. Because you just need to log in any computer where you find and send the “delete” or “freeze” conman, the lost key card will no function immediately until you give it another author right. But, if you choice the stand-alone type, you have more procedures to do. First, you need go to the front desk and log in computer. Then give a command “delete card” write in a card call “command card”, then take this “command card” go to every room and induction the stand-alone lock. When you induction all of 300 rooms. Congratulations! You finish the “ delete card” job finally. Now, I believe you can understand which type fit you. Rooms number over 50 in one building, choice stand-alone. The room number over 50, or separate to several aria, choice on-line system.
Adopt TEMIC® contactless RF card or MIFARE ONE® contactless RF card as keycard to enhance the security, reliability and convenience. The high performance integrate circuit with self-check function, automatically redress information mistake, inductive window automatically identify RF card, and run with super low consumption, the static consumption is low to 12 uA.
Lock hardware is made of strong steel, to create impact resistant ability. High security lockset with a hardened steel deadbolt, an anti-pick latch and 2 pieces of anti-friction latches.
High quality stain stainless steel escutcheon reinforced by a steel plate for added security, High quality electrophoretic paint is used for solid brass handles. The handle feels smooth and reliable, and will always return firmly to the horizontal position. Combined with innovative technology to produce modular, double panel structure, the integration of precision metal casting manufacturing process, the elegant classic panel and handle style. No one screws exposed on front and rear panels of the locks, anti-destructive stronger and last longer; The perfect combination of the panel and trim to show the art of copper alloy with aesthetics and flexibility.
Easy to use: The lock is operated by handles from both the inside and the outside of the door. Outside handle is fixed while in locking state; the handle can be turned only in unlocking state. The Inside handle can be turned always. When ingress, the guest insert the keycard then the lock unlocked, turn the outside handle to open the door; when egress, the guest turn the inside handle directly to open the door.
"Panic release”: Deadbolt and latch are automatically retracted by inside handle for easy egress.
Superb reliability and Low running cost: Low power consumption (the batteries can last for 12 months), high reliability and low maintenance help to keep the running costs low.
Mechanical key: The separate emergency mechanical structure will allow the unlocking by the mechanical key in emergency. And in addition, we designed a sensor hidden behind the front covers for security reason.
Keycards are limited by lock’s clock, when the guest’s lodging is out of the deadline, the keycard will be invalid, so the guest has to take the card to renew.
Keycards are grouped into several levels to make the access authority clear. There are Master Card, Building Card, Floor Card, Waiter Card, and Guest Card. Hotel managers can modify the authority of each card according to actual need at any moment.
l Master Card: can unlock all of the locks belong to the system without time’s limited, even the deadbolt locks.
l Building Card: Can unlock the locks belong to corresponding building; cannot unlock the deadbolted locks, with time’s limited.
l Floor Card: Can unlock the locks belong to corresponding floor; cannot unlock the dead bolted locks, with time’s limited.
l Waiter Card: Can unlock the locks belong to corresponding floor in specifying time slice; cannot unlock the dead bolted locks, with time’s limited.
l Guest Card: For the guest to open the room he/she lodges in within the specifying period of time.
Normal- open state can be set for meeting.
Avoid waiter’s incautious disturb: If the guest turns out the deadbolt inside the room, when insert keycard (except Master Card) the LED will flash in red and green alternately to remind the waiter that someone is inside the room.
Report the loss of keycard: Even if your keycard is lost, you can keep quiet, the lost keycard can be invalidated by simple card operations on the lock.(just guest card)
The lock memorizes the latest more than 250 access records to be checked for case, guarantee the security management.
The elegant printed card help accent the distinction of the hotel.
User-friendly and Compatible software: Specially utilize a WINDOWS® software platform to design the management software make use easy. Offers software interfaces (DLL) to make the lock management software can be connected to other hotel management system.
Multi-purpose card can be developed from the keycard, to support lock system, power system, safe, lift, hotel consumption system, and so on.
² Performance Index
Applicable card: TEMIC® contactless RF card or MIFARE ONE® contactless RF card.
Power supply: 4 standard AAA alkaline batteries or 6 VDC power supply.
Battery life: About 12 months in normal state, depending on both usage and climatic conditions.
Low voltage warning: When power’s voltage is less 4.5V, there will be warning when unlock. the lock can still be unlocked about 100 times before the batteries are replaced.
Static consumption: 12uA.
Dynamic consumption: 200mA.
Open time: The lock will be locked again automatically 7 seconds after unlocking.
Reliability of card operation: No accident for 1000 times of continuous card operation.
Emergency unlocking: The door can be opened by Master Card or Mechanical key even if the deadbolt works.
Installation request: To be installed on the door, with the thickness between 36mm and 70mm, and if the door surface is decorated, the distance between the decorative edge and the edge of the door must be over 110mm.

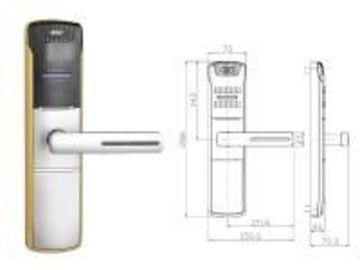

Panel size : 286mm( Height) ×70mm (Width) ×26mm (Thickness).
Mortise size: 204mm( Height) ×106mm (Width) ×23mm (Thickness).
Weight: 4.0Kg.
Handle orientation: left hand push to open, right hand push to open; left hand pull to open, right hand pull to open. |
|
|
