ALPHA6822 EcoWire Plus Awg24 mPPE REACH ROHS CE Halogen-Free 300V -40-110C 可充分回收利用的超薄環保电子連接线

ALPHA-6822

商品編號: ALPHA6822, google, yahoo, msn

ALPHA-6822 EcoWire Plus Awg24 mPPE REACH ROHS CE Halogen-Free 300V -40-110C Hook up wire 低煙無鹵可充分回收利用的超薄環保电子連接线

部件号	Voltage	AWG	Stranding	Insulation Thickness	Insulation Diameter	Insulation Material	Applicable Specifications
6831	300V	10	19/23	0.017	0.147	mPPE	CE - CE Conformance, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, Suitable for ISO 6722

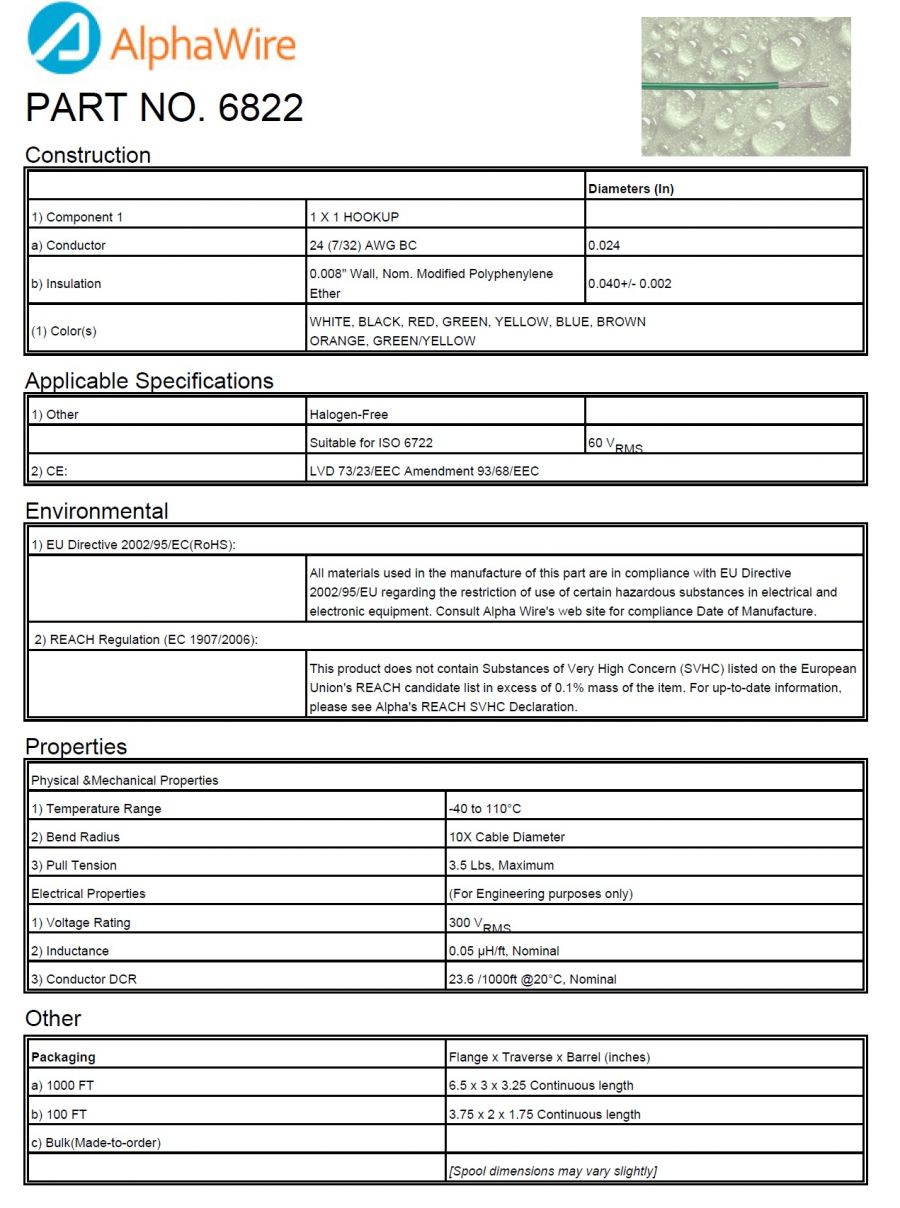

Construction

		Diameters (In)
1) Component 1	1 X 1 HOOKUP
a) Conductor	24 (7/32) AWG BC	0.024
b) Insulation	0.008" Wall, Nom. Modified Polyphenylene Ether	0.040+/- 0.002
(1) Color(s)	WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN ORANGE, GREEN/YELLOW

Applicable Specifications

1) Other	Halogen-Free
	Suitable for ISO 6722	60 V_RMS
2) CE:	LVD 73/23/EEC Amendment 93/68/EEC

Environmental

1) EU Directive 2002/95/EC(RoHS):
	All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wires web site for compliance Date of Manufacture.
2) REACH Regulation (EC 1907/2006):
	This product does not contain Substances of Very High Concern (SVHC) listed on the European Unions REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alphas REACH SVHC Declaration.

Properties

Physical & Mechanical Properties
1) Temperature Range	-40 to 110°C
2) Bend Radius	10X Cable Diameter
3) Pull Tension	3.5 Lbs, Maximum
Electrical Properties	(For Engineering purposes only)
1) Voltage Rating	300 V_RMS
2) Inductance	0.05 µH/ft, Nominal
3) Conductor DCR	23.6 Ω/1000ft @20°C, Nominal

Other

Packaging	Flange x Traverse x Barrel (inches)
a) 1000 FT	6.5 x 3 x 3.25 Continuous length
b) 100 FT	3.75 x 2 x 1.75 Continuous length
c) Bulk(Made-to-order)
	[Spool dimensions may vary slightly]

Alpha Wire’s new EcoWire Plus offers all of the environmental benefits and abrasion-resistance characteristics of standard EcoWire, plus the additional fluid resistance for demanding factory applications.EcoWire Plus derives its advantage from its unique insulation, a modified polyphenylene ether (mPPE) thermoplastic. mPPE-based insulation is non-halogenated and contains no heavy metal pigments, allowing it to help manufacturers meet Waste Electrical and Electronic Equipment (WEEE) requirements.
In addition to its ecological benefits, EcoWire Plus brings many performance advantages, including:

Better dielectric strength
Low specific gravity
Up to 45% smaller diameter
Up to 40% lighter
Fully Recyclable

If you are looking for a higher functioning wire that won’t compromise the environment, EcoWire Plus is your solution.
EcoWire Downloads:

EU/China ROHS CERTIFICATE OF COMPLIANCE

To Whom It May Concern:

Alpha Wire Part Number: 6822

6822, RoHS-Compliant Commencing With 6/10/2011 Production

This document certifies that the Alpha part number cited above are manufactured in accordance with Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003, better known as the RoHS Directives, with regards to restrictions of the use of certain hazardous substances used in the manufacture of electrical and electronic equipment. The reader is referred to these Directives for the specific definitions and extents of these Directives. No Exemptions are required for RoHS Compliance on this item. Additionally, Alpha certifies that the listed part number is in compliance with the European Union’s Restriction of Hazardous Substances (RoHS) Directive, 2002/95/EC and all subsequent revisions and China RoHS “Marking for Control of Pollution by Electronic Information Products” standard SJ/T 11364-2006.

Substance	Maximum Control Value
Lead	0.1% by weight (1000 ppm)
Mercury	0.1% by weight (1000 ppm)
Cadmium	0.01% by weight (100 ppm)
Hexavalent Chromium	0.1% by weight (1000 ppm )
Polybrominated Biphenyls (PBB)	0.1% by weight (1000 ppm)
Polybrominated Diphenyl Ethers (PBDE) ,
Including Deca-BDE	0.1% by weight (1000 ppm)

The information provided in this document and disclosure is correct to the best of Alpha Wires knowledge, information and belief at the date of its release. The information provided is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it will become part of. The intent of this document is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.

Authorized Signatory for the Alpha Wire Company:

Dave Watson, Director of Engineering & QA

1/13/2012

　

Alpha Wire 的EcoWire Plus 不但具有普通EcoWire 全部保护环境和抗磨损的特性，而且拥有工业应用所需的抗液体腐蚀的特性。
　
EcoWire Plus 的优异特性来自于特制绝缘材料 – 改良型热塑材料聚亚苯基醚（ mPPE ）。基于 mPPE 的绝缘不含卤族成分，不具有重金属成分。这使得工业厂商能够生产出满足欧洲电子电气废弃物（ WEEE ）标准的产品。
除了这些生态方面的优点， EcoWire Plus 还具有很多性能上的优势，包括
　
更好的绝缘强度
低密度
直径减小多达 45%
重量减轻多达 40%
充分回收利用
如果你在寻求高性能并且对生态环境无影响的产品， EcoWire Plus 将是你的最佳选择。

符合性证明

敬启者：

Alpha Wire 部件号：6831

6831，符合RoHS标准，以 2011/6/10 的生产为开始

兹通过本文件证明上述 Alpha 部件号的产品系根据欧洲议会和欧洲理事会2003年1月27日第2002/95/EC号关于在电气电子设备中限制使用某些有害物质的指令（即RoHS指令）而制造。关于所述指令的具体定义和范围，请参见所述指令。对该产品的RoHS符合性不需任何豁免。

危险物质	最大控制值
铅	按重量计算不得超过0.1% (1000 ppm)
汞	按重量计算不得超过0.1% (1000 ppm)
镉	按重量计算不得超过0.01% (100 ppm)
六价镉	按重量计算不得超过0.1% (1000 ppm)
聚溴联苯 (PBB)	按重量计算不得超过0.1% (1000 ppm)
聚溴二苯醚 (PBDE)
台卡二苯醚	按重量计算不得超过0.1% (1000 ppm)

Alpha Wire 公司已阅读本文件，并谨在此声明本文件所含信息及披露的数据在本文件发布时均准 确无误。本文件所含信息仅作为一般指南，适用于产品本身或产品组成部分的安全处理、贮存及其它操作。本文件不应被视为任何保证或质量规范。法规信息仅供参考。对于法律、法规的适用性，由产品用户根据各自的产品用途自行确定。

Part #	Voltage	AWG	Stranding	Insulation Thickness	Insulation Diameter	Insulation Material
	6820	300V	28	7/36	0.008	0.031	mPPE
	6821	300V	26	7/34	0.008	0.035	mPPE
	6822	300V	24	7/32	0.008	0.040	mPPE
	6823	300V	22	7/30	0.008	0.046	mPPE
	6824	300V	20	7/28	0.008	0.054	mPPE
	6825	300V	18	19/.0092	0.008	0.062	mPPE
	6826	300V	17	19/30	0.008	0.066	mPPE
	6827	300V	16	19/29	0.01	0.076	mPPE
	6828	300V	15	19/28	0.01	0.083	mPPE
	6829	300V	14	19/27	0.012	0.095	mPPE
	6830	300V	12	19/25	0.015	0.12	mPPE
	6831	300V	10	19/23	0.017	0.147	mPPE

Applicable Specifications

CE - CE Conformance, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, Suitable for ISO 6722

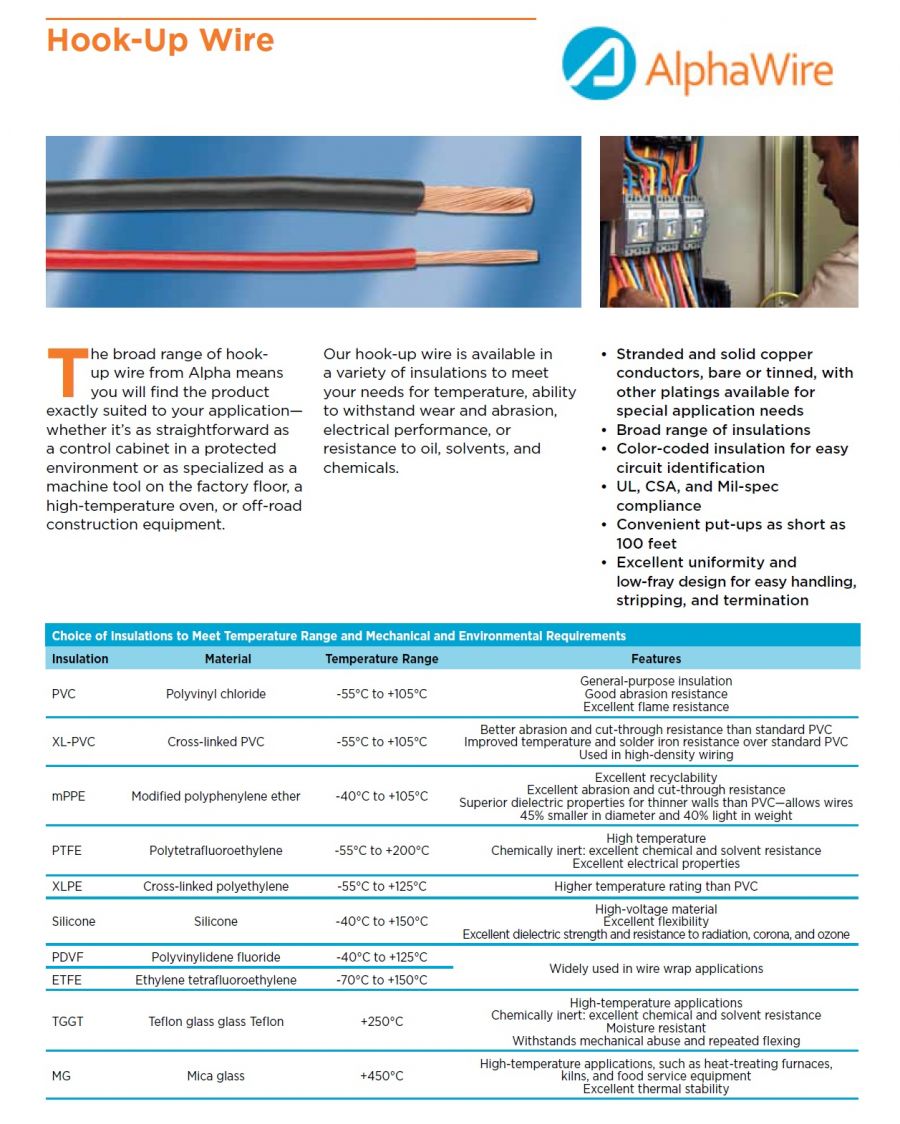

电子连接线

满足您的一切连接需要

Alpha 制造的各类电子连接线，总有一款满足您的应用需要——无论是普通到一个监控环境下的控制柜，还是专业到工厂车间里的机床、高温烘箱或现场施工设备。

主要特点：

多股绞合或实心祼铜或镀锡铜芯线，及满足特殊应用需求的其它镀层
绝缘层采用不同颜色标识
遵守 UL、CSA 和 Mil 规范
小盘卷仅 100 英尺长，方便运输
采用低磨损无差异设计，便于搬运、剥线和端接
绝缘材料众多

电子连接线宣传册

类型电子连接线

电子连接线
我们的高性能电子连接线系列具有各种不同的绝缘，可以满足您对温度、耐磨性、电气性能、耐油性、耐溶剂性以及防腐性的要求。
EcoWire™
Alpha Wire 的全新 EcoWire 是电子连接线的最新发明。它不含任何卤素，可充分回收利用，并且比标准的聚氯乙烯绝缘具有更好的特性。无论是需要遵守严格的环境法规，还是需要更小、更持久耐用的电线，EcoWire 都是最佳选择。
EcoWire™ Plus
Alpha Wire 的全新 EcoWire Plus 是电子连接线的革新产品。EcoWire Plus不但具有普通EcoWire 全部保护环境的特性，而且拥有抗液体腐蚀的特性。无论你是在寻求满足严格生态环境要求的产品，还是寻求更小更轻、更持久耐用的产品，EcoWire Plus 都将是你的最终解决方案。
光伏线
作为适用于太阳能发电应用的电子连接线，Alpha Wire 的光伏线适合在各种极端环境中使用。它满足 UL/TÜV 和 UL 线缆要求，方便您使用。
Dearborn™ 长距离连接线
Alpha Wire 的 Dearborn™ 长距离连接线是需要长距离布线应用的理想选择。它们采用聚氯乙烯护套，颜色多样。
带状电缆
Alpha Wire 提供各种带状电缆，更易于布线和端接，比线束占用更少的空间。
汇流排
Alpha Wire 的汇流排提供可靠的解决方案，为您的关键电气系统提供连续的电力供应。
