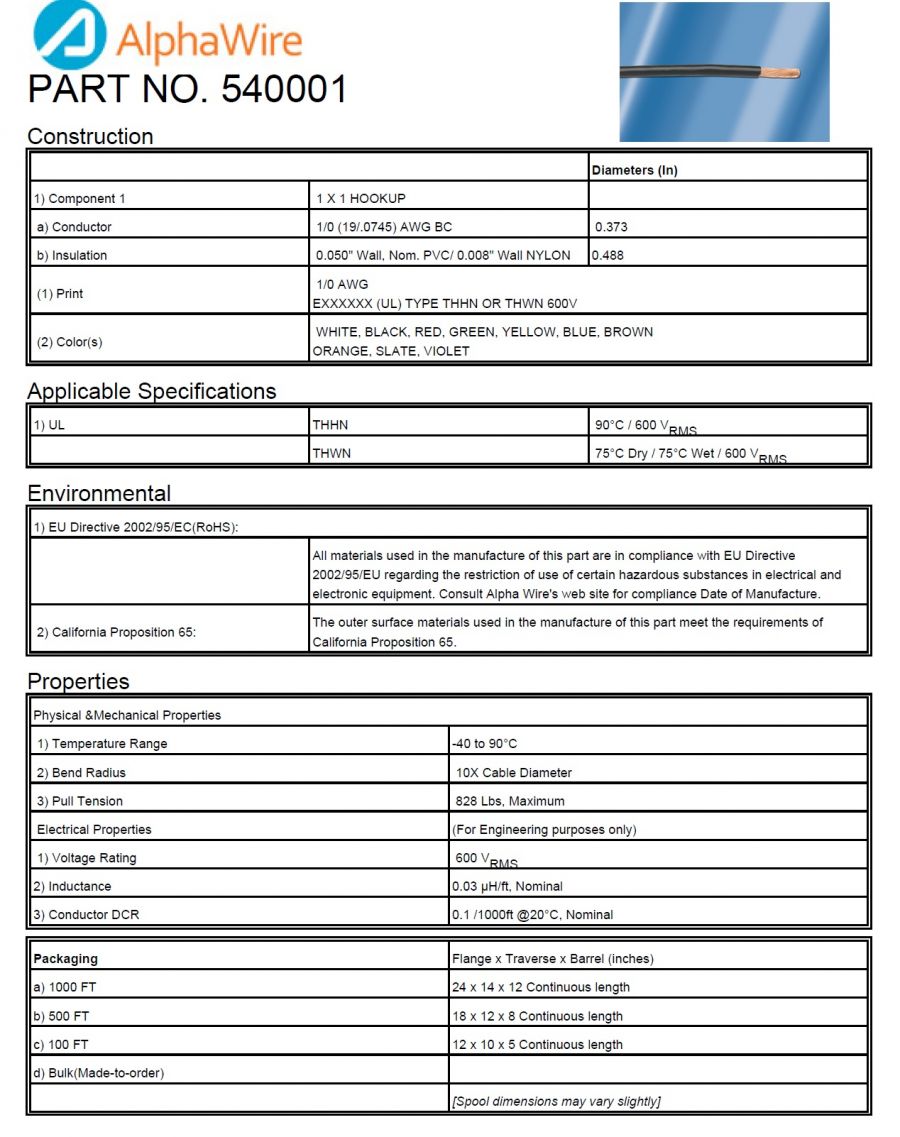

    ALPHA 54001 Awg1/0 600V CA Prop 65, UL THHN, UL THWN PVC/NYLON尼龍被覆電線
    看原圖
    		ALPHA-54001


     商品編號: ALPHA-54001 ,google,yahoo, msn, gmail

    ALPHA-54001 Awg1/0 600V CA Prop 65, UL THHN, UL THWN PVC/NYLON尼龍被覆電線


    Alpha540219, Alpha540419, Alpha540619, Alpha540819, Alpha541001, Alpha541201, Alpha541219,
    Alpha541401,Alpha541419,Alpha541626, Alpha541801, Alpha541816

    1) Component 1 1 X 1 HOOKUP 　
    a) Conductor 1/0 (19/.0745) AWG BC 0.373
    b) Insulation 0.050" Wall, Nom. PVC/ 0.008" Wall NYLON 0.488
    (1) Print 1/0 AWG
    EXXXXXX (UL) TYPE THHN OR THWN 600V
    　
    (2) Color(s) WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN
    ORANGE, SLATE, VIOLET
    Applicable Specifications
    1) UL THHN 90°C / 600 VRMS
    　 THWN 75°C Dry / 75°C Wet / 600 VRMS
    Environmental
    1) EU Directive 2002/95/EC(RoHS):
    　 All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
    2) California Proposition 65: The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.
    Properties
    Physical & Mechanical Properties
    1) Temperature Range -40 to 90°C
    2) Bend Radius 10X Cable Diameter
    3) Pull Tension 828 Lbs, Maximum
    Electrical Properties (For Engineering purposes only)
    1) Voltage Rating 600 VRMS
    2) Inductance 0.03 µH/ft, Nominal
    3) Conductor DCR 0.1 Ω/1000ft @20°C, Nominal
    Other
    Packaging Flange x Traverse x Barrel (inches)
    a) 1000 FT 24 x 14 x 12 Continuous length
    b) 500 FT 18 x 12 x 8 Continuous length
    c) 100 FT 12 x 10 x 5 Continuous length
    d) Bulk(Made-to-order) 　
    　 [Spool dimensions may vary slightly]

    The broad range of hook-up wire from Alpha means you will find the product exactly suited to your application— whether it’s as straightforward as a control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high-temperature oven, or off-road construction equipment.

    Our hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.
      Part # Voltage AWG Stranding Insulation Thickness Nominal Diameter Insulation Material Applicable Specifications
    Alpha540219 600  2  19/.0591  0.042  0.383  PVC/NYLON  CA Prop 65, UL THHN, UL THWN
    Alpha540419 600  4  19/.0469  0.042  0.333  PVC/NYLON  CA Prop 65, UL THHN, UL THWN
    Alpha540619 600  6  19/.0372  0.032  0.262  PVC/NYLON  CA Prop 65, UL THHN, UL THWN
    Alpha540819 600  8  19/.0295  0.03  0.219  PVC/NYLON  CA Prop 65, UL THHN, UL THWN
    Alpha541001 600  10  Solid  0.022  0.156  PVC/NYLON  CA Prop 65, UL THHN, UL THWN
    Alpha541019 600  10  19/.0234  0.022  0.166  PVC/NYLON  CA Prop 65, UL THHN, UL THWN
    Alpha541201 600  12  Solid  0.016  0.123  PVC/NYLON  CA Prop 65, UL THHN, UL THWN
    Alpha541219 600  12  19/.0185  0.016  0.135  PVC/NYLON  CA Prop 65, UL THHN, UL THWN
    Alpha541401 600  14  Solid  0.016  0.106  PVC/NYLON  CA Prop 65, UL THHN, UL THWN
    Alpha541419 600  14  19/.0147  0.016  0.116  PVC/NYLON  CA Prop 65, UL THHN, UL THWN
    Alpha541626 600  16  26/30  0.016  0.102  PVC/NYLON  CA Prop 65, UL TFFN
    Alpha541801 600  18  Solid  0.016  0.082  PVC/NYLON  CA Prop 65, UL TFN
    Alpha541816 600  18  16/30  0.016  0.089  PVC/NYLON  CA Prop 65, UL TFFN
