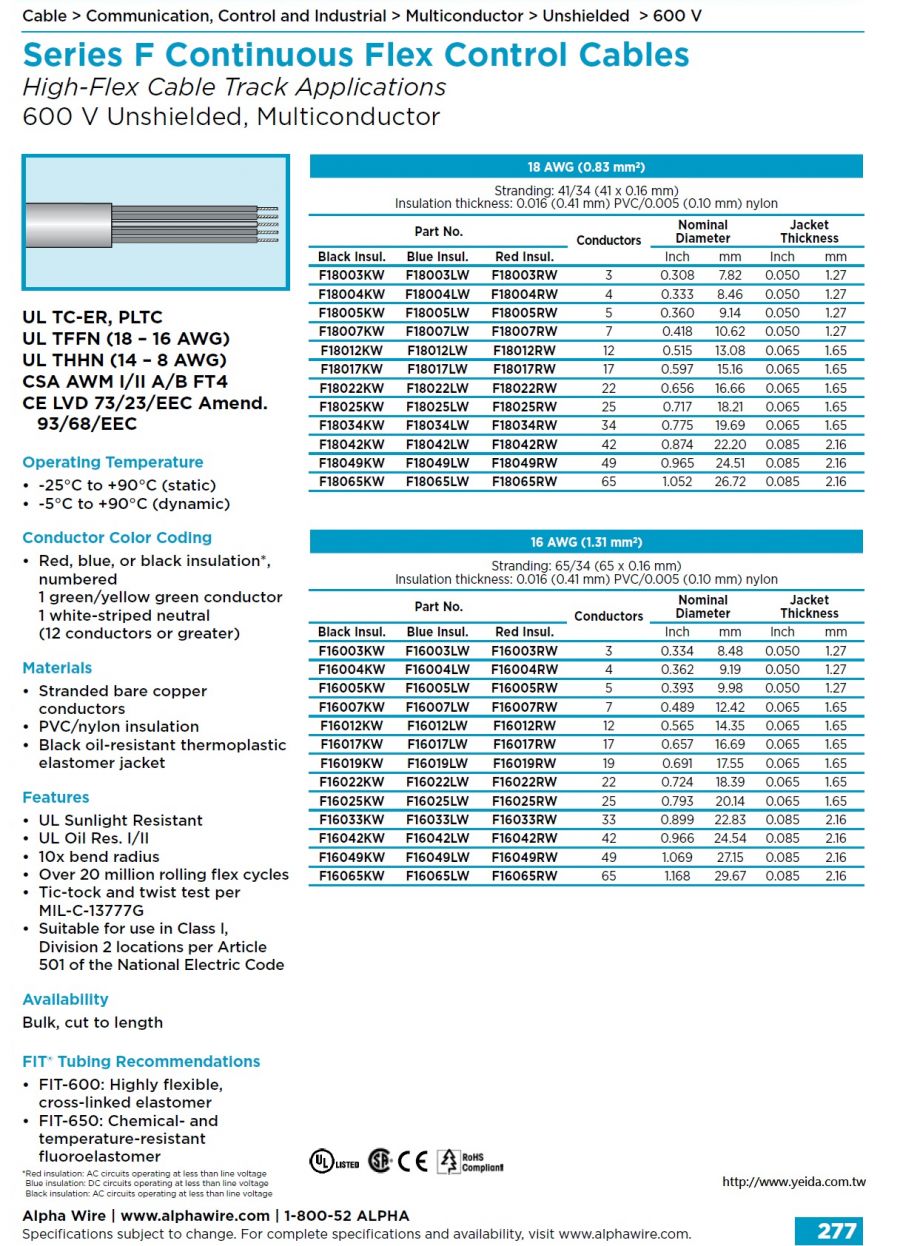

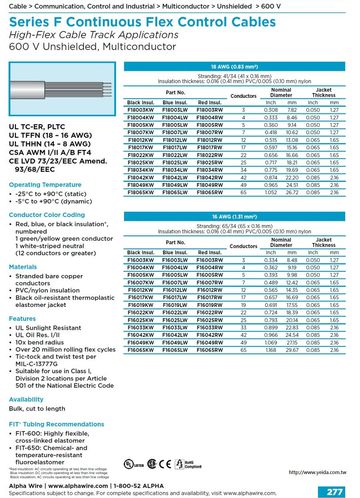

Industrial Series F

Alpha Wire's Series F continuous flex control cable offers industry-leading mechanical and electrical performance for high-flex cable track applications.

Series F Key features:
　

• Up to 20 million continuous rolling flex cycles
• 28 – 8 AWG
• 3 – 65 conductors
• PVC/nylon insulation
• Thermoplastic elastomer jacket
• UL Type TC-ER (600 V)
• UL Type PLTC (300 V) (18-12AWG only)
• Sunlight resistant

Alpha Wire 的 F 系列连续挠曲控制电缆为高挠曲电缆轨道应用提供行业领先的机械和电气性能。

F 系列电缆的主要特性 ：

• 高达 2 千万次的连续滚动挠曲循环
• 线径为 28 到 8 AWG
• 导线数量为 3 到 65 根
• 聚氯乙烯/尼龙绝缘
• 热塑性橡胶护套
• UL 类型 TC-ER（600 伏）
• UL 类型 PLTC（300 伏）（仅限 18 到 12 AWG）
• 防紫外线

  Part #	Type	Shielding	Voltage	AWG	# of Elements	Jacket Thickness
  	Alpha F16003KW	Conductor	UNSHIELDED	600	16	3	0.05	CA Prop 65, CE, CSA C(UL) CIC CONTROL, CSA C(UL) TC, CSA AWM I/II A/B, CSA FT4, UL EXPOSED RUN, UL MTW, UL OIL RES I/II, UL PLTC, UL SUN RES, UL TC, UL TFFN
  	F16003LW	Conductor	UNSHIELDED	600	16	3	0.05
  	F16003RW	Conductor	UNSHIELDED	600	16	3	0.05
  	F16004KW	Conductor	UNSHIELDED	600	16	4	0.05
  	F16004LW	Conductor	UNSHIELDED	600	16	4	0.05
  	F16004RW	Conductor	UNSHIELDED	600	16	4	0.05
  	F16005KW	Conductor	UNSHIELDED	600	16	5	0.05
  	F16005LW	Conductor	UNSHIELDED	600	16	5	0.05
  	F16005RW	Conductor	UNSHIELDED	600	16	5	0.05
  	F16007KW	Conductor	UNSHIELDED	600	16	7	0.065
  	F16007LW	Conductor	UNSHIELDED	600	16	7	0.065
  	F16007RW	Conductor	UNSHIELDED	600	16	7	0.065
  	F16012KW	Conductor	UNSHIELDED	600	16	12	0.065
  	F16012LW	Conductor	UNSHIELDED	600	16	12	0.065
  	F16012RW	Conductor	UNSHIELDED	600	16	12	0.065
  	F16017KW	Conductor	UNSHIELDED	600	16	17	0.065
  	F16017LW	Conductor	UNSHIELDED	600	16	17	0.065
  	F16017RW	Conductor	UNSHIELDED	600	16	17	0.065
  	F16019KW	Conductor	UNSHIELDED	600	16	19	0.065
  	F16019LW	Conductor	UNSHIELDED	600	16	19	0.065

  Part # 　 Type　 Shielding Voltage　 AWG # of Elements 　 Jacket Thickness alpha F16019RW Conductor UNSHIELDED 600 16 19 0.065 CA Prop 65, CE, CSA C(UL) CIC CONTROL, CSA C(UL) TC, CSA AWM I/II A/B, CSA FT4, UL EXPOSED RUN, UL MTW, UL OIL RES I/II, UL PLTC, UL SUN RES, UL TC, UL TFFN F16022KW Conductor UNSHIELDED 600 16 22 0.065 F16022LW Conductor UNSHIELDED 600 16 22 0.065 F16022RW Conductor UNSHIELDED 600 16 22 0.065 F16025KW Conductor UNSHIELDED 600 16 25 0.065 F16025LW Conductor UNSHIELDED 600 16 25 0.065 F16025RW Conductor UNSHIELDED 600 16 25 0.065 F16033KW Conductor UNSHIELDED 600 16 33 0.085 F16033LW Conductor UNSHIELDED 600 16 33 0.085 F16033RW Conductor UNSHIELDED 600 16 33 0.085 F16042KW Conductor UNSHIELDED 600 16 42 0.085 F16042LW Conductor UNSHIELDED 600 16 42 0.085 F16042RW Conductor UNSHIELDED 600 16 42 0.085 F16049KW Conductor UNSHIELDED 600 16 49 0.085 F16049LW Conductor UNSHIELDED 600 16 49 0.085 F16049RW Conductor UNSHIELDED 600 16 49 0.085 F16065KW Conductor UNSHIELDED 600 16 65 0.085 F16065LW Conductor UNSHIELDED 600 16 65 0.085 F16065RW Conductor UNSHIELDED 600 16 65 0.085 F18003KW Conductor UNSHIELDED 600 18 3 0.05
