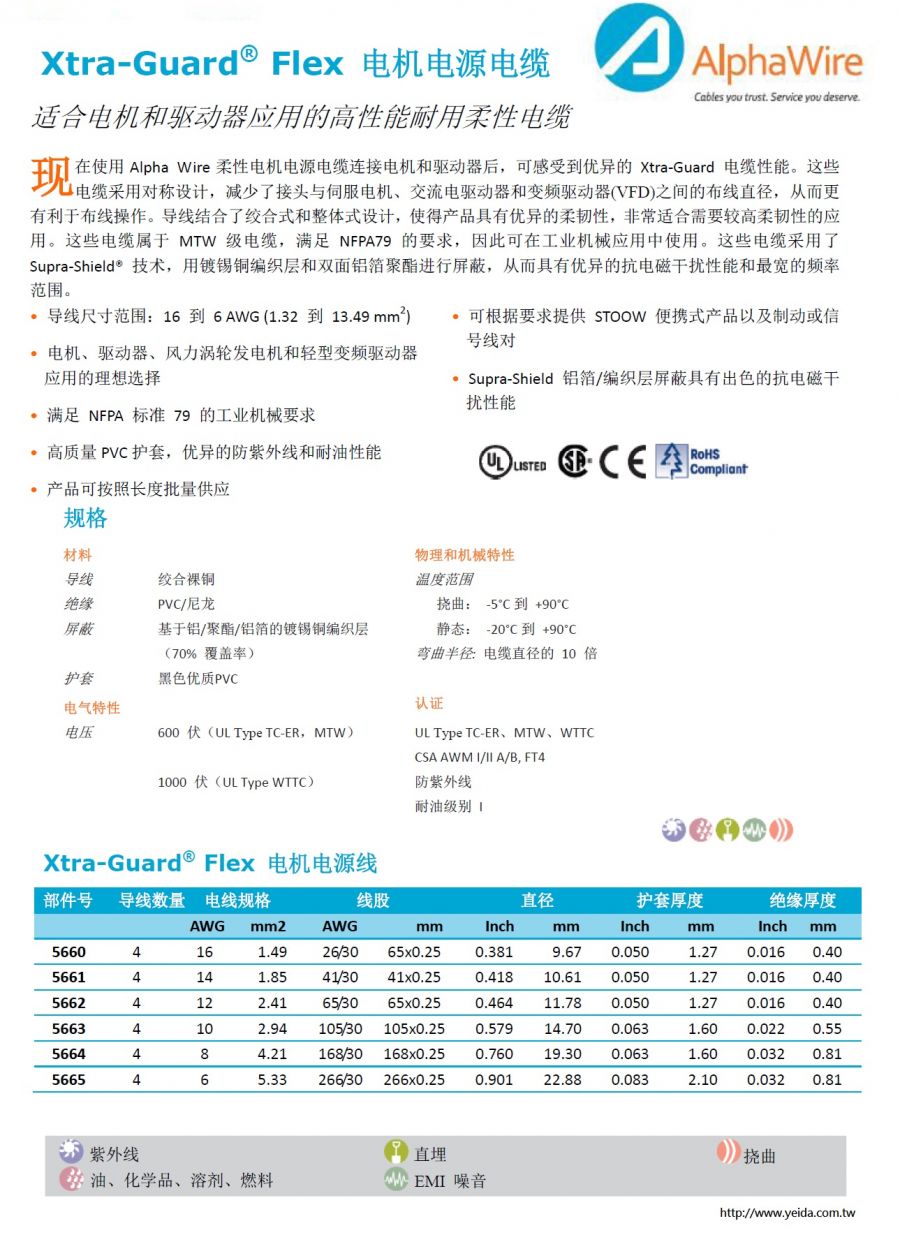

ALPHA-5660 Awg16 x 4C PVC/NYLON 600V 90°C Flexible Motor Supply Cable电动机电源线
部件号
Type
AWG
Jacket Diameter
Jacket Thickness
# of Elements
Applicable Specifications
5660
16
0.348
0.05
4
CSA - FT4, CSA AWM I/II A/B, UL - DIRECT BURIAL, UL 1063, UL 1277 Type TC-ER, UL 1581, UL EXPOSED RUN, UL MTW, UL Sunlight Resistant

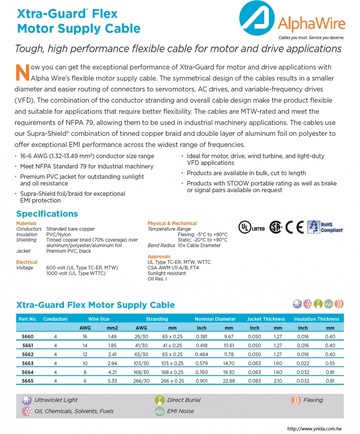

6-16 AWG conductor size range
Meet NFPA Standard 79 for industrial machinery
Premium PVC jacket for outstanding sunlight and oil resistance
Supra-Shield foil/braid for exceptional EMI protection
Ideal for motor, drive, wind turbine, and light-duty VFD applications
Products are available in bulk, cut to length
Products with STOOW portable rating as well as brake or signal pairs available on request
Diameters (In)
1) Component 1
4 X 1 COND
a) Conductor
16 (26/30) AWG BC
0.060
b) Insulation
0.016" Wall, Nom. PVC/ 0.005" Wall NYLON
0.102
(1) Color Code
Alpha Wire Color Code KX
Cond
Color
Cond
Color
Cond
Color
1
GREEN/YELLOW
3
BLACK#2
2
BLACK#1
4
BLACK#3
2) Cable Assembly
4 Components Cabled
a) Twists:
3.4 Twists/foot (min)
3) Shield:
A/P/A Tape, 25% Overlap, Min.
a) Drain Wire
4 x 22 (7/30) AWG TC
b) Braid
TC,70% Coverage, Min.
4) Jacket
0.050" Wall, Nom.,PVC
0.381+/- 0.019
a) Color(s)
BLACK
b) Jacket Separator
Tissue Tape, 25% Overlap, Min.
c) Print
ALPHA WIRE-* P/N 5660 4C 16 AWG
XTRAGUARD(R) MOTOR SUPPLY CABLE - EXXXXXX
(UL) WTTC 1000V 90C OR (UL) TC-ER 600V 90C DRY
75C WET SUN RES DIR BUR OR MTW 16 AWG ---
LLXXXXXX CSA AWM I/II A/B 90C 600V FT4 CE
ROHS (SEQ FOOTAGE)
* = Factory Code [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
ProductIndustryApprovals
1) UL
TC
90°C Dry / 75°C Wet / 600 VRMS
EXPOSED RUN
DIRECT BURIAL
SUN RES
MTW
90°C Dry / 60°C Wet / 600 VRMS
WTTC
90°C / 1000 VRMS
2) CSA International
AWM I/II A/B
90°C / 600 VRMS
FT4
3) CE:
LVD 73/23/EEC Amendment 93/68/EEC
ProductEnvironmental
1) EU Directive 2002/95/EC(RoHS):
All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
