ALPHA 6453 Awg22 x 1 Pair FOIL/BRAID 300 V 120-Ohm for RS-485 工業自動化RS485監控電纜線
部件号
Type
Shielding
Voltage
AWG
# of Elements
Jacket Diameter
Applicable Specifications
6453
Multi-Pair
FOIL/BRAID
300
22
1
0.284
CE, CSA CM, CSA FT4, UL PLTC CM
Industrial Automation
Alpha Wire's Industrial Automation family of cable offers industry-leading mechanical and electrical performance for the major industrial automation protocols, including ControlNet™, RS-485, DeviceNet™, Fieldbus, PROFIBUS™, and Industrial Twinax.
Industrial Automation Key Features:
ControlNet™ Cable
Low-loss RG-6/U 75-ohm coaxial cable
Double braid/foil shielding for maximum signal integrity and run length

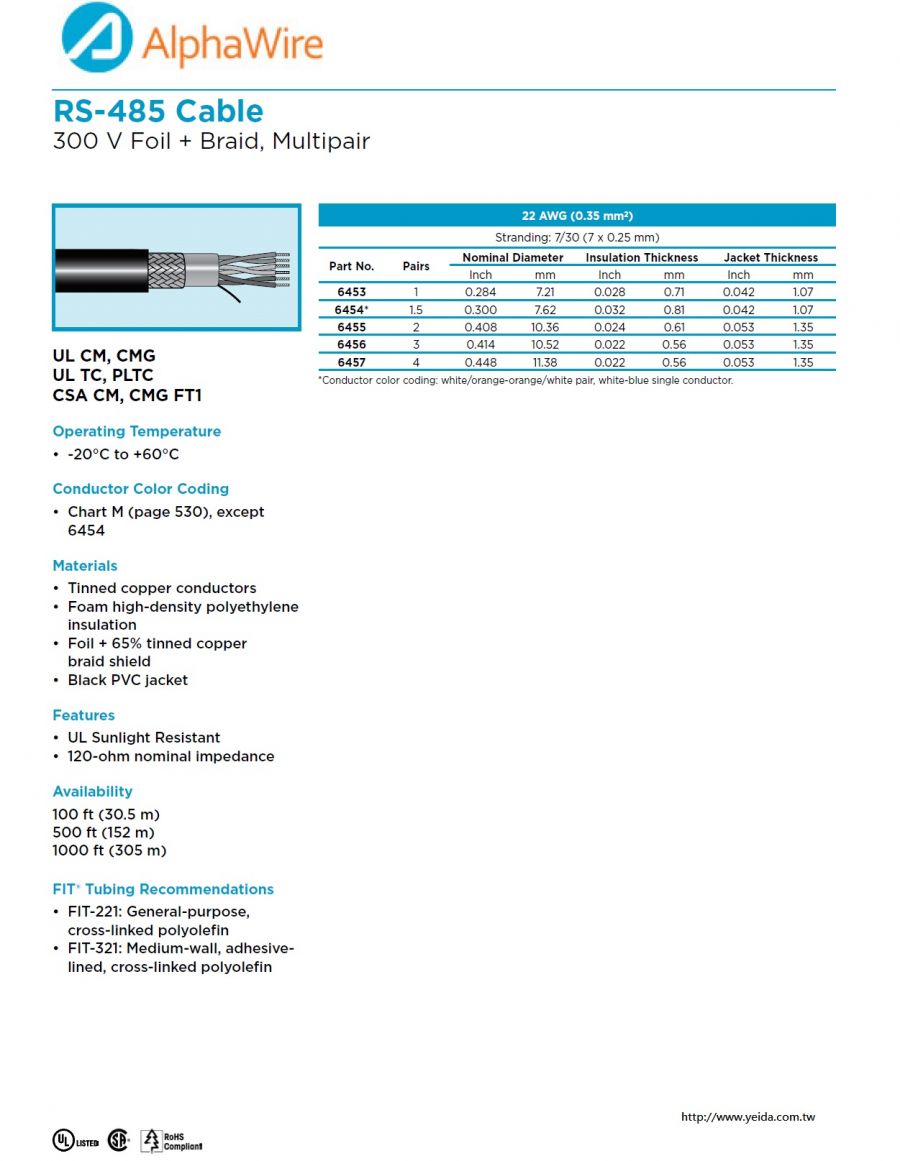

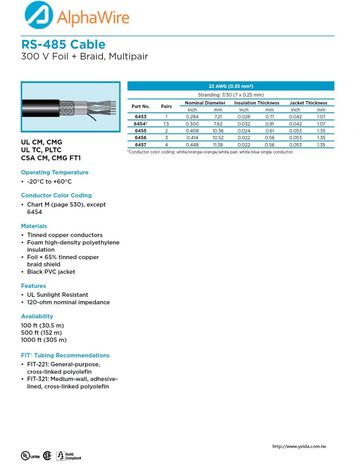

RS-485 Cable
1 to 4 pairs
Braid/foil shield to reduce electrical noise sensitivity
UL Type PLTC Open Wiring (300 V)
Sunlight resistant
DeviceNet™ Cable
Power and data in a rugged two-pair cable
Sunlight resistant
Available for ODVA thick and thin trunks
Compliant with Allen-Bradley part numbers 1485 CPI-A and 1485 CPI-C
Fieldbus and PROFIBUS™ Cable
100-ohm impedance for Types A and B Fieldbus
150-ohm impedance for High-Speed Fieldbus and PROFIBUS DP
Industrial Twinax Cable
Meets the requirements of Allen-Bradley Data Highway Networks

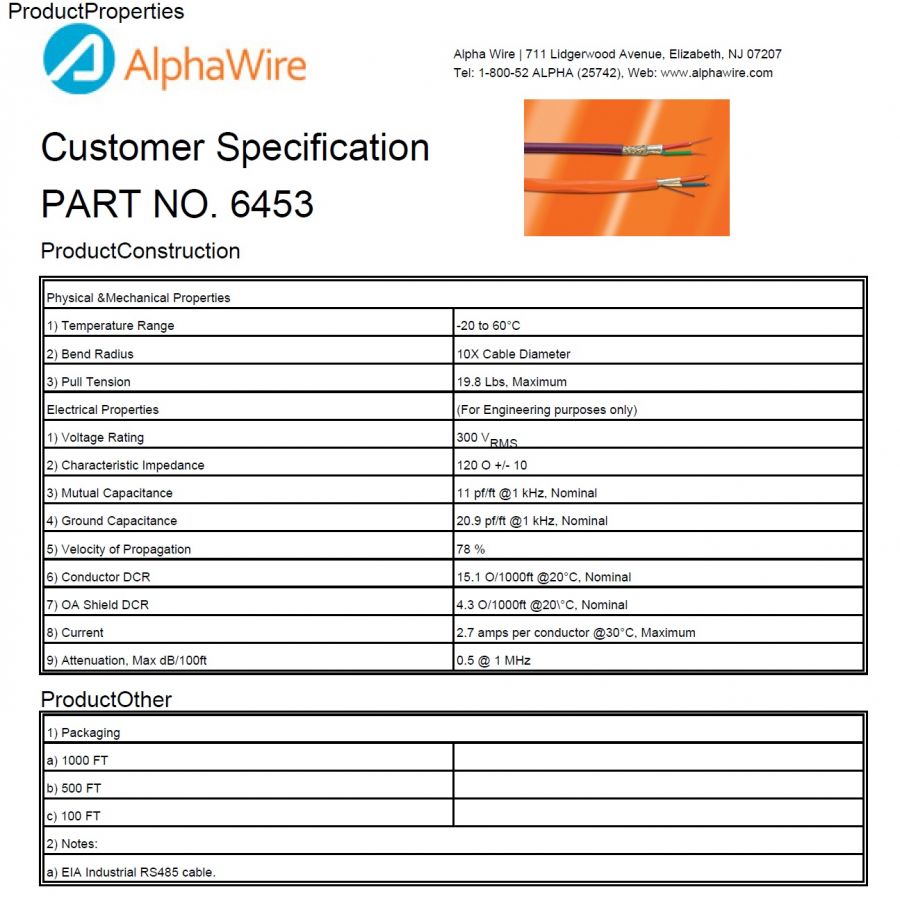

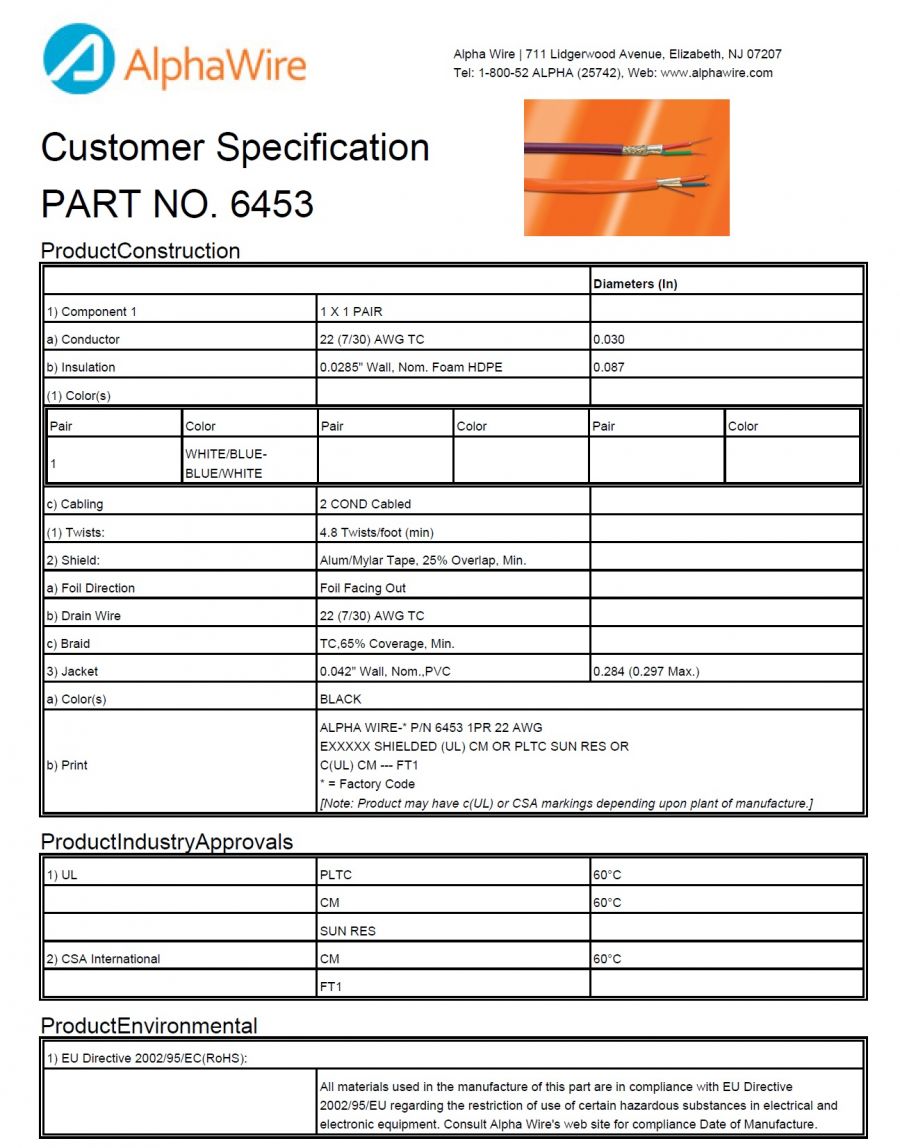

1) Component 1
1 X 1 PAIR
a) Conductor
22 (7/30) AWG TC
0.030
b) Insulation
0.0285" Wall, Nom. Foam HDPE
0.087
(1) Color(s)
Pair
Color
Pair
Color
Pair
Color
1
WHITE/BLUE-BLUE/WHITE
c) Cabling
2 COND Cabled
(1) Twists:
4.8 Twists/foot (min)
2) Shield:
Alum/Mylar Tape, 25% Overlap, Min.
a) Foil Direction
Foil Facing Out
b) Drain Wire
22 (7/30) AWG TC
c) Braid
TC,65% Coverage, Min.
3) Jacket
0.042" Wall, Nom.,PVC
0.284 (0.297 Max.)
a) Color(s)
BLACK
b) Print
ALPHA WIRE-* P/N 6453 1PR 22 AWG
EXXXXX SHIELDED (UL) CM OR PLTC SUN RES OR
C(UL) CM --- FT1
* = Factory Code [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
ProductIndustryApprovals
1) UL
PLTC
60°C
CM
60°C
SUN RES
2) CSA International
CM
60°C
FT1
ProductEnvironmental
1) EU Directive 2002/95/EC(RoHS):
All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
