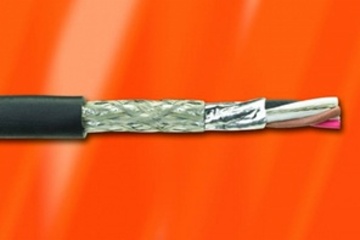

ALPHA 6455 Awg22 x 2 Pair FOIL/BRAID 300 V 120-Ohm for RS-485 工業自動化RS485監控電纜線

ALPHA-6455

ALPHA 6455 Awg22 x 2 Pair FOIL/BRAID 300 V 120-Ohm for RS-485 工業自動化RS485監控電纜線

ALPHA 6455 RS-485 22AWG

Diameters (In)

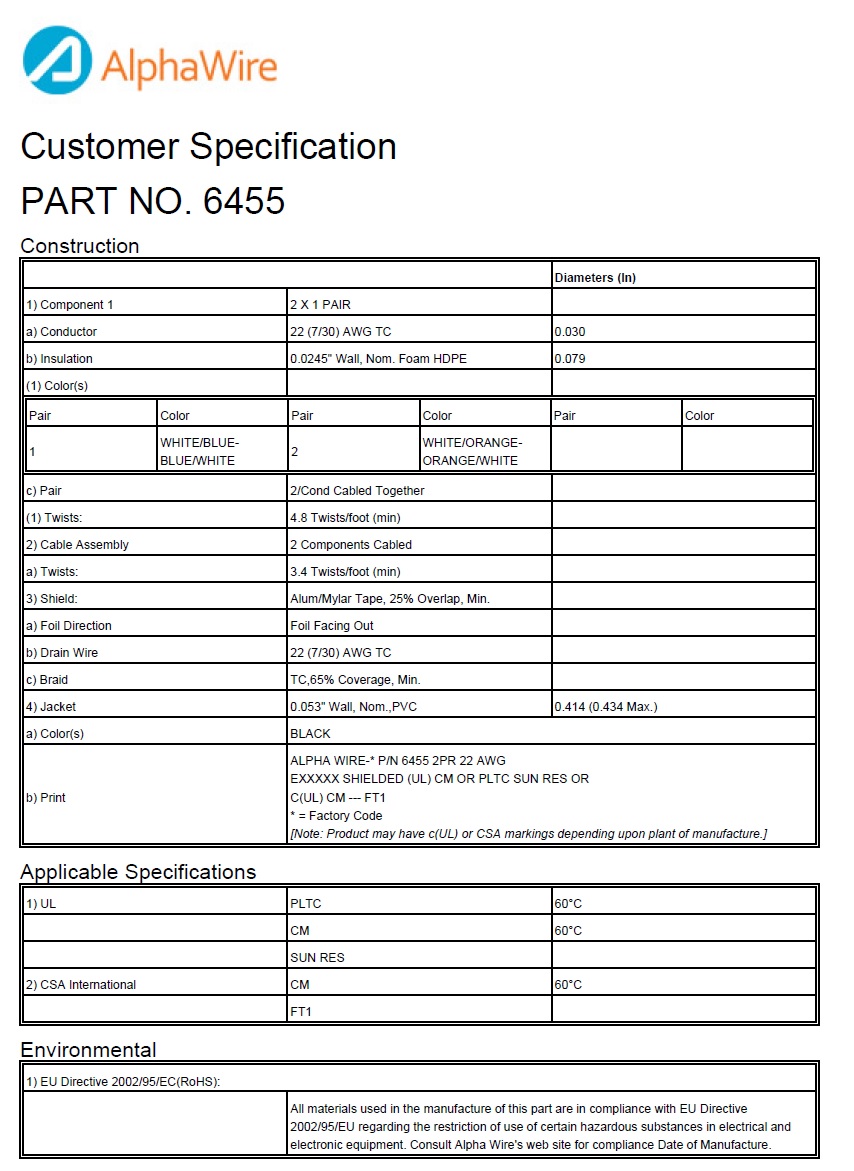

1) Component 1

2 X 1 PAIR

a) Conductor

22 (7/30) AWG TC

0.030

b) Insulation

0.0245" Wall, Nom. Foam HDPE

0.079

(1) Color(s)

Pair	Color	Pair	Color	Pair	Color
1	WHITE/BLUE-BLUE/WHITE	2	WHITE/ORANGE-ORANGE/WHITE

c) Pair

2/Cond Cabled Together

(1) Twists:

4.8 Twists/foot (min)

2) Cable Assembly

2 Components Cabled

a) Twists:

3.2 Twists/foot (min)

3) Shield:

Alum/Mylar Tape, 25% Overlap, Min.

a) Foil Direction

Foil Facing Out

b) Drain Wire

22 (7/30) AWG TC

c) Braid

TC,65% Coverage, Min.

4) Jacket

0.053" Wall, Nom.,PVC

0.350 (0.369 Max.)

a) Color(s)

BLACK

b) Print

ALPHA WIRE P/N 6455 2PR 22 AWG
EXXXXX SHIELDED (UL) CM OR PLTC SUN RES OR
C(UL) CM --- FT1 CE ROHS
[Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]

ControlNet™ Cable

Low-loss RG-6/U 75-ohm coaxial cable
Double braid/foil shielding for maximum signal integrity and run length

RS-485 Cable

1 to 4 pairs
Braid/foil shield to reduce electrical noise sensitivity
UL Type PLTC Open Wiring (300 V)
Sunlight resistant

DeviceNet™ Cable

Power and data in a rugged two-pair cable
Sunlight resistant
Available for ODVA thick and thin trunks
Compliant with Allen-Bradley part numbers 1485 CPI-A and 1485 CPI-C

Fieldbus and PROFIBUS™ Cable

100-ohm impedance for Types A and B Fieldbus
150-ohm impedance for High-Speed Fieldbus and PROFIBUS DP

Industrial Twinax Cable

Meets the requirements of Allen-Bradley Data Highway Networks

1) UL	PLTC	60°C
	CM	60°C
	SUN RES
2) CSA International	CM	60°C
	FT1
3) CE:	EU Low Voltage Directive 2006/95/EC

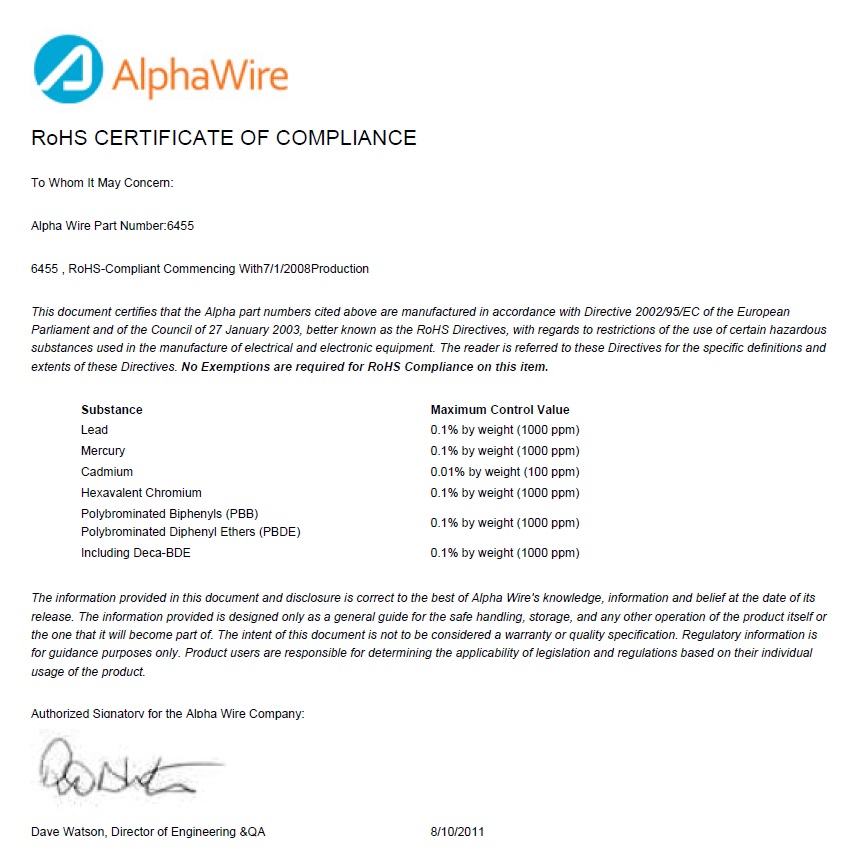

1) CE: EU Directive 2011/65/EU(RoHS2):
	This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011. No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C.
2) REACH Regulation (EC 1907/2006):
	This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration.

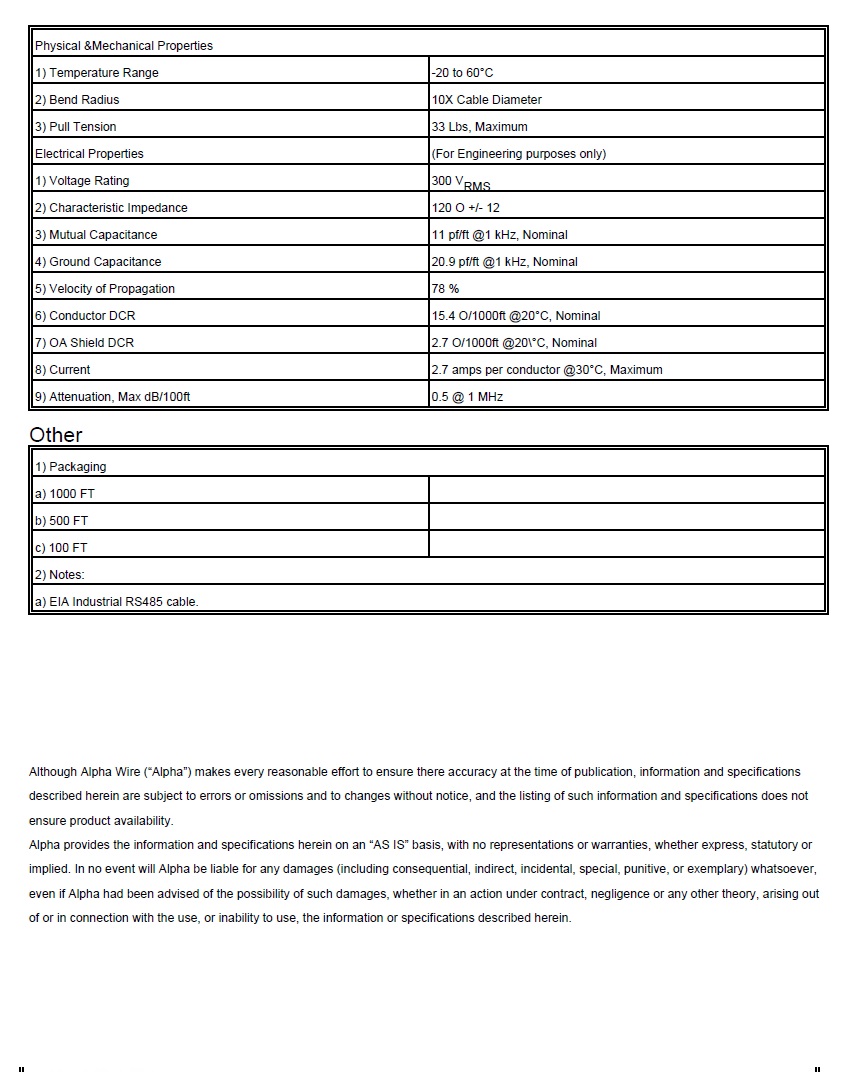

Physical & Mechanical Properties
1) Temperature Range	-20 to 60°C
2) Bend Radius	10X Cable Diameter
3) Pull Tension	33 Lbs, Maximum
Electrical Properties	(For Engineering purposes only)
1) Voltage Rating	300 V_RMS
2) Characteristic Impedance	120 Ω +/- 12
3) Mutual Capacitance	11 pf/ft @1 kHz, Nominal
4) Ground Capacitance	20.9 pf/ft @1 kHz, Nominal
5) Velocity of Propagation	78 %
6) Conductor DCR	15.4 Ω/1000ft @20°C, Nominal
7) OA Shield DCR	2.7 Ω/1000ft @20°C, Nominal
8) Current	2.7 amps per conductor @30°C, Maximum
9) Attenuation, Max dB/100ft	0.5 @ 1 MHz
