    首頁 > > ALPHA-Industrial Ethernet Cat 5e cables 工業級網路線

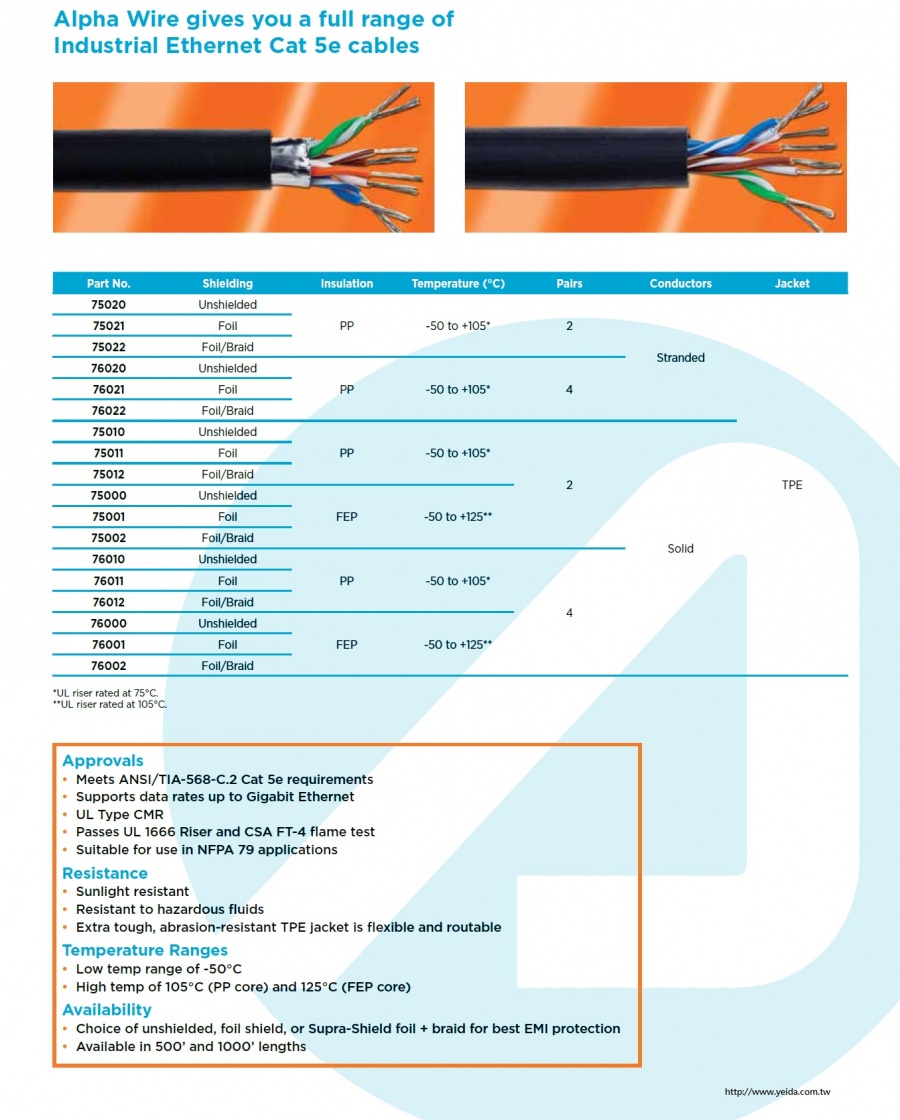

    ALPHA- Industrial Ethernet Cat 5e cables Awg24 x 4PR SupraShield (Premium Foil/Braid) FEP 鐵氟龍鋁箔+銅網隔離CAT-5E 4對工業級網路線
    看原圖
    		ALPHA-76002


    商品編號: ALPHA-76002

    ALPHA- Industrial Ethernet Cat 5e cables Awg24 x 4PR SupraShield (Premium Foil/Braid) FEP 鐵氟龍鋁箔+銅網隔離CAT-5E 4對工業級網路線

    部件号 Type Shielding AWG Stranding # of Elements Insulation Material Jacket Thickness Applicable Specifications
    76002 Pair SupraShield (Premium Foil/Braid) 24 SOLID 4PR FEP 0.035 CE, CSA - C(UL) TYPE CMR, CSA FT4, ROHS - RoHS Compliance, UL CMR, UL - FT4

    Designed for uncompromising performance to keep the network running anywhere, Alpha Wire’s Industrial
    Ethernet cables feature an abrasion-resistant thermoplastic elastomer jacket
    with three times the lowtemperature flexibility,
    and resists solvents, chemicals, and fuels better
    than ordinary PVC.


    ProductConstruction
    　 Diameters (In)
    1) Component 1 4 X 1 PAIR 　
    a) Conductor 24 (SOLID) AWG BC 0.023
    b) Insulation 0.011" Wall, Nom. FEP 0.045
    (1) Color(s) 　 　
    Pair Color Pair Color Pair Color
    1 BLU - WHT/BLU 2 ORG - WHT/ORG 3 GRN-WHT/GRN
    4 BRN - WHT/BRN 　 　 　 　
    c) Pair 2/Cond Cabled Together 　
    (1) Lay Length: Various Lay 　
    2) Cable Assembly 4 Components Cabled 　
    a) Twists: 4.0 Twists/foot (min) 　
    b) Core Wrap Clear Mylar Tape, 25% Overlap, Min. 　
    3) Shield: A/P/A Tape, 25% Overlap, Min. 　
    a) Drain Wire 24 (SOLID) AWG TC 　
    b) Braid TC,70% Coverage, Min. 　
    4) Jacket 0.035" Wall, Nom.,TPE 0.325 (0.335 Max.)
    a) Color(s) BLACK
    b) Ripcord Nylon 　
    c) Print ALPHA WIRE-* P/N 76002 4PR 24 AWG
    XTRAGUARD(R) INDUSTRIAL ETHERNET (UL) C(UL) TYPE
    CMR 105C FT4 ANSI/TIA-568-C.2 CAT5E VERIFIED
    ROHS (SEQUENTIAL FOOTAGE MARKING)
    * = Factory Code
    ProductIndustryApprovals
    1) UL CMR 105°C
    　 FT4 　
    2) CSA International C(UL) TYPE CMR 105°C
    　 FT4 　
    3) CE: LVD 73/23/EEC Amendment 93/68/EEC
    ProductEnvironmental
    1) EU Directive 2002/95/EC(RoHS):
    　 All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
    ProductProperties
    Physical & Mechanical Properties
    1) Temperature Range -50 to 125°C
    2) Bend Radius 8X Cable Diameter
    3) Pull Tension 33.0 Lbs, Maximum
    4) Sunlight Resistance Yes
    Electrical Properties (For Engineering purposes only)
    1) Voltage Rating 300 VRMS
    2) Characteristic Impedance 100 Ω +/- 15
    3) Mutual Capacitance 5.6 nf/100m Max
    4) Velocity of Propagation 70 % Nom.
    5) Conductor DCR 9.38 Ω/100m @20°C, Max
    6) Skew 45 ns/100m, Max
    7) Pair to Ground Unbalance 330 pf/100m, Max
    8) DC Unbalance of a Pair 5%, Max
    9) Insertion Loss, Max dB/100m 2.4 @ 1 MHz
    　 4.9 @ 4 MHz
    　 6.9 @ 8 MHz
    　 7.8 @ 10 MHz
    　 9.9 @ 16 MHz
    　 11.1 @ 20 MHz
    　 12.5 @ 25 MHz
    　 14.1 @ 31.25 MHz
    　 20.4 @ 62.5 MHz
    　 26.4 @ 100 MHz
    ProductOther
    Packaging Flange x Traverse x Barrel (inches)
    a) 1000 FT 12 x 12 x 3.5 Continuous length
    b) 500 FT 12 x 6 x 3.5 Continuous length
    　 [Spool dimensions may vary slightly]

    　

    符合性证明
    敬启者：
    Alpha Wire 部件号：76002
    76002，符合RoHS标准，以 2012/3/21 的生产为开始
    兹通过本文件证明上述 Alpha 部件号的产品系根据欧洲议会和欧洲理事会2003年1月27日第2002/95/EC号关于在电气电子设备中限制使用某些有害物质的指令（即RoHS指令）而制造。关于所述指令的具体定义和范围，请参见所述指令。对该产品的RoHS符合性不需任何豁免。
    危险物质 最大控制值
    铅 按重量计算不得超过0.1% (1000 ppm)
    汞 按重量计算不得超过0.1% (1000 ppm)
    镉 按重量计算不得超过0.01% (100 ppm)
    六价镉 按重量计算不得超过0.1% (1000 ppm)
    聚溴联苯 (PBB) 按重量计算不得超过0.1% (1000 ppm)
    聚溴二苯醚 (PBDE) 　
    台卡二苯醚 按重量计算不得超过0.1% (1000 ppm)
    Alpha Wire 公司已阅读本文件，并谨在此声明本文件所含信息及披露的数据在本文件发布时均准 确无误。本文件所含信息仅作为一般指南，适用于产品本身或产品组成部分的安全处理、贮存及其它操作。本文件不应被视为任何保证或质量规范。法规信息仅供参考。对于法律、法规的适用性，由产品用户根据各自的产品用途自行确定。
    Alpha Wire 公司授权代表签字：
    技术及质保部总监 Dave Watson

    Part #

    　

    		 Type　 Shielding AWG Stranding # of Elements

    　

    		 Insulation Material

    　

    		 Jacket Thickness
    75000 Pair UNSHIELDED 24 SOLID 2PR FEP 0.035 CE, CSA - C(UL) TYPE CMR, CSA FT4, ROHS - RoHS Compliance, UL CMR, UL - FT4
    75001 Pair FOIL 24 SOLID 2PR FEP 0.035
    75002 Pair SupraShield (Premium Foil/Braid) 24 SOLID 2PR FEP 0.035
    75010 Pair UNSHIELDED 24 SOLID 2PR PP 0.035
    75011 Pair FOIL 24 SOLID 2PR PP 0.035
    75012 Pair SupraShield (Premium Foil/Braid) 24 SOLID 2PR PP 0.035
    75020 Pair UNSHIELDED 24 7/32 2PR PP 0.035
    75021 Pair FOIL 24 7/32 2PR PP 0.035
    75022 Pair SupraShield (Premium Foil/Braid) 24 7/32 2PR PP 0.035
    76000 Pair UNSHIELDED 24 SOLID 4PR FEP 0.035
    76001 Pair FOIL 24 SOLID 4PR FEP 0.035
    76002 Pair SupraShield (Premium Foil/Braid) 24 SOLID 4PR FEP 0.035
    76010 Pair UNSHIELDED 24 SOLID 4PR PP 0.035
    76011 Pair FOIL 24 SOLID 4PR PP 0.035
    76012 Pair SupraShield (Premium Foil/Braid) 24 SOLID 4PR PP 0.035
    76020 Pair UNSHIELDED 24 7/32 4PR PP 0.035
    76021 Pair FOIL 24 7/32 4PR PP 0.035
    76022 Pair SupraShield (Premium Foil/Braid) 24 7/32 4PR PP 0.035
    669333 Pair UNSHIELDED 24 7/32 2PR PP 0.033 ROHS - RoHS Compliance
    669343 Pair Foil/Unshielded 24+22 7/32 & 19/34 4PR PP 0.049 ROHS - RoHS Compliance
