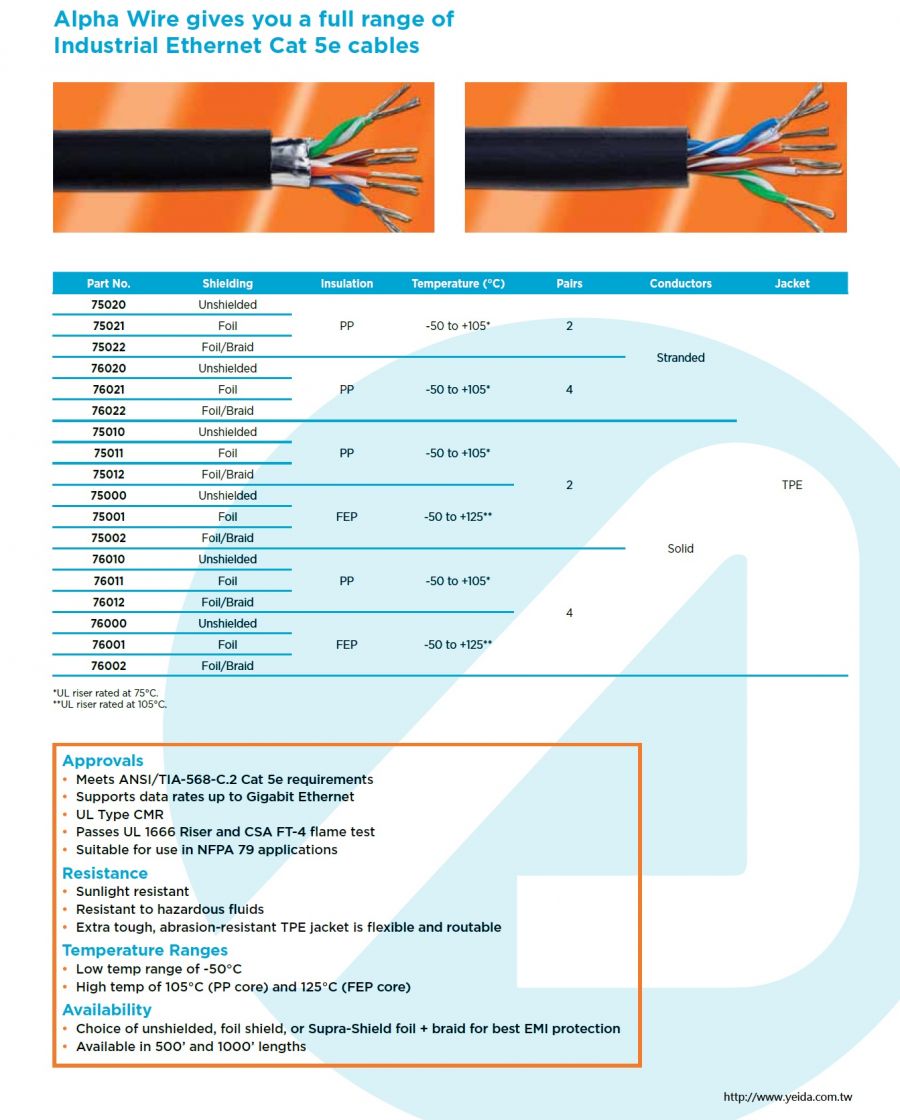

ALPHA76020, Xtra-Guard® Industrial Ethernet ANSI/TIA-568-C.2 Cat 5e 工業級乙太網路高性能电缆

ALPHA-76020

商品編號: ALPHA-76020

ALPHA Xtra-Guard® Industrial Ethernet ANSI/TIA-568-C.2 Cat 5e 工業級乙太網路高性能电缆

Approvals
• Meets ANSI/TIA-568-C.2 Cat 5e requirements
• Supports data rates up to Gigabit Ethernet
• UL Type CMR
• Passes UL 1666 Riser and CSA FT-4 flame test
• Suitable for use in NFPA 79 applications
Resistance
• Sunlight resistant
• Resistant to hazardous fluids
• Extra tough, abrasion-resistant TPE jacket is flexible and routable
Temperature Ranges
• Low temp range of -50°C
• High temp of 105°C (PP core) and 125°C (FEP core)
Availability
• Choice of unshielded, foil shield, or Supra-Shield foil + braid for best EMI protection
• Available in 500’ and 1000’ lengths

Type	Shielding	Voltage	AWG	Stranding	# of Elements	Insulation Material	Jacket Thickness
75000	Pair	UNSHIELDED	300	24	SOLID	2PR	FEP	0.035	CE, CSA - C(UL) TYPE CMR, CSA - FT4, ROHS - RoHS Compliance, UL - CMR, UL - FT4
75001	Pair	FOIL	300	24	SOLID	2PR	FEP	0.035	CE, CSA - C(UL) TYPE CMR, CSA - FT4, ROHS - RoHS Compliance, UL CMR, UL - FT4
75002	Pair	SupraShield (Premium Foil/Braid)	300	24	SOLID	2PR	FEP	0.035	CE, CSA - C(UL) TYPE CMR, CSA - FT4, ROHS - RoHS Compliance, UL CMR, UL - FT4
75010	Pair	UNSHIELDED	300	24	SOLID	2PR	PP	0.035	CE, CSA - C(UL) TYPE CMR, CSA - FT4, ROHS - RoHS Compliance, UL - CMR, UL - FT4
75011	Pair	FOIL	300	24	SOLID	2PR	PP	0.035	CE, CSA - C(UL) TYPE CMR, CSA - FT4, ROHS - RoHS Compliance, UL - CMR, UL - FT4
75012	Pair	SupraShield (Premium Foil/Braid)	300	24	SOLID	2PR	PP	0.035	CE, CSA - C(UL) TYPE CMR, CSA - FT4, ROHS - RoHS Compliance, UL - CMR, UL - FT4
75020	Pair	UNSHIELDED	300	24	7/32	2PR	PP	0.035	CE, CSA - C(UL) TYPE CMR, CSA - FT4, ROHS - RoHS Compliance, UL - CMR, UL - FT4
75021	Pair	FOIL	300	24	7/32	2PR	PP	0.035	CE, CSA - C(UL) TYPE CMR, CSA - FT4, ROHS - RoHS Compliance, UL - CMR, UL - FT4
75022	Pair	SupraShield (Premium Foil/Braid)	300	24	7/32	2PR	PP	0.035	CE, CSA - C(UL) TYPE CMR, CSA - FT4, ROHS - RoHS Compliance, UL - CMR, UL - FT4
76000	Pair	UNSHIELDED	300	24	SOLID	4PR	FEP	0.035	CE, CSA - C(UL) TYPE CMR, CSA - FT4, ROHS - RoHS Compliance, UL - CMR, UL - FT4
76001	Pair	FOIL	300	24	SOLID	4PR	FEP	0.035	CE, CSA - C(UL) TYPE CMR, CSA - FT4, ROHS - RoHS Compliance, UL - CMR, UL - FT4
76002	Pair	SupraShield (Premium Foil/Braid)	300	24	SOLID	4PR	FEP	0.035	CE, CSA - C(UL) TYPE CMR, CSA - FT4, ROHS - RoHS Compliance, UL - CMR, UL - FT4
76010	Pair	UNSHIELDED	300	24	SOLID	4PR	PP	0.035	CE, CSA - C(UL) TYPE CMR, CSA - FT4, ROHS - RoHS Compliance, UL - CMR, UL - FT4
76011	Pair	FOIL	300	24	SOLID	4PR	PP	0.035	CE, CSA - C(UL) TYPE CMR, CSA - FT4, ROHS - RoHS Compliance, UL - CMR, UL - FT4
76012	Pair	SupraShield (Premium Foil/Braid)	300	24	SOLID	4PR	PP	0.035	CE, CSA - C(UL) TYPE CMR, CSA - FT4, ROHS - RoHS Compliance, UL - CMR, UL - FT4
76020	Pair	UNSHIELDED	300	24	7/32	4PR	PP	0.035	CE, CSA - C(UL) TYPE CMR, CSA - FT4, ROHS - RoHS Compliance, UL - CMR, UL - FT4
76021	Pair	FOIL	300	24	7/32	4PR	PP	0.035	CE, CSA - C(UL) TYPE CMR, CSA - FT4, ROHS - RoHS Compliance, UL - CMR, UL - FT4
76022	Pair	SupraShield (Premium Foil/Braid)	300	24	7/32	4PR	PP	0.035	CE, CSA - C(UL) TYPE CMR, CSA - FT4, ROHS - RoHS Compliance, UL - CMR, UL - FT4
