商品編號: ALPHA-76021
ALPHA- Industrial Ethernet Cat 5e cables Awg24(7/32 ) x 4PR SFOIL Shield PP-TPE (-50 to +105) 4對多股絞線柔性鋁箔隔離CAT-5E 工業級網路線

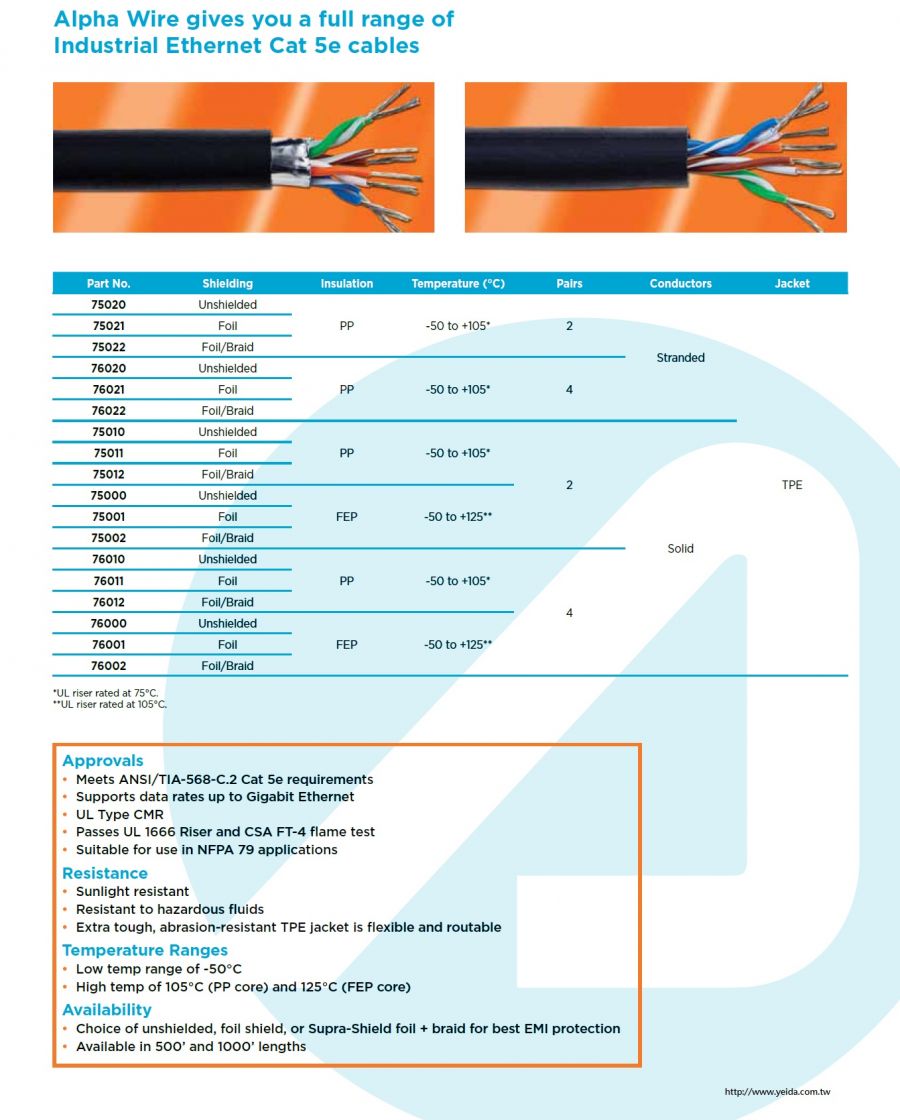

Designed for uncompromising performance to keep the network running anywhere, Alpha Wire’s Industrial
Ethernet cables feature an abrasion-resistant thermoplastic elastomer jacket
with three times the lowtemperature flexibility,
and resists solvents, chemicals, and fuels better
than ordinary PVC.
部件号 |
Type |
Shielding |
AWG |
Stranding |
# of Elements |
Insulation Material |
Jacket Thickness |
Applicable Specifications |
76021 |
Pair |
FOIL |
24 |
7/32 |
4PR |
PP |
0.035 |
CE, CSA - C(UL) TYPE CMR, CSA FT4, ROHS - RoHS Compliance, UL CMR, UL - FT4 |
ProductConstruction
|
Diameters (In) |
1) Component 1 |
4 X 1 PAIR |
|
a) Conductor |
24 (7/32) AWG BC |
0.024 |
b) Insulation |
0.011" Wall, Nom. Polypropylene (PP) |
0.046 |
(1) Color(s) |
|
|
Pair |
Color |
Pair |
Color |
Pair |
Color |
1 |
BLU - WHT/BLU |
2 |
ORG - WHT/ORG |
3 |
GRN-WHT/GRN |
4 |
BRN - WHT/BRN |
|
|
|
|
|
c) Pair |
2/Cond Cabled Together |
|
(1) Lay Length: |
Various Lay |
|
2) Cable Assembly |
4 Components Cabled |
|
a) Twists: |
4.0 Twists/foot (min) |
|
b) Core Wrap |
Clear Mylar Tape, 25% Overlap, Min. |
|
3) Shield: |
Alum/Mylar Tape, 25% Overlap, Min. |
|
a) Foil Direction |
Foil Facing In |
|
b) Drain Wire |
24 (7/32) AWG TC |
|
4) Jacket |
0.035" Wall, Nom.,TPE |
0.310 (0.320 Max.) |
a) Color(s) |
BLACK |
b) Ripcord |
Nylon |
|
c) Print |
ALPHA WIRE-* P/N 76021 4PR 24 AWG
XTRAGUARD(R) INDUSTRIAL ETHERNET (UL) C(UL) TYPE
CMR 105C FT4 ANSI/TIA-568-C.2 CAT5E VERIFIED
ROHS (SEQUENTIAL FOOTAGE MARKING)
* = Factory Code |
ProductIndustryApprovals
1) UL |
CMR |
105°C |
|
FT4 |
|
2) CSA International |
C(UL) TYPE CMR |
105°C |
|
FT4 |
|
3) CE: |
LVD 73/23/EEC Amendment 93/68/EEC |
ProductEnvironmental
1) EU Directive 2002/95/EC(RoHS): |
|
All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture. |
ProductProperties
Physical & Mechanical Properties |
1) Temperature Range |
-50 to 105°C |
2) Bend Radius |
8X Cable Diameter |
3) Pull Tension |
32.0 Lbs, Maximum |
4) Sunlight Resistance |
Yes |
Electrical Properties |
(For Engineering purposes only) |
1) Voltage Rating |
300 VRMS |
2) Characteristic Impedance |
100 Ω +/- 15 |
3) Mutual Capacitance |
5.6 nf/100m Max |
4) Velocity of Propagation |
70 % Nom. |
5) Conductor DCR |
9.38 Ω/100m @20°C, Max |
6) Skew |
45 ns/100m, Max |
7) Pair to Ground Unbalance |
330 pf/100m, Max |
8) DC Unbalance of a Pair |
5%, Max |
9) Insertion Loss, Max dB/100m |
2.4 @ 1 MHz |
|
4.9 @ 4 MHz |
|
6.9 @ 8 MHz |
|
7.8 @ 10 MHz |
|
9.9 @ 16 MHz |
|
11.1 @ 20 MHz |
|
12.5 @ 25 MHz |
|
14.1 @ 31.25 MHz |
|
20.4 @ 62.5 MHz |
|
26.4 @ 100 MHz |
ProductOther
Packaging |
Flange x Traverse x Barrel (inches) |
a) 1000 FT |
12 x 12 x 3.5 Continuous length |
b) 500 FT |
12 x 6 x 3.5 Continuous length |
|
[Spool dimensions may vary slightly] |
符合性证明 |
敬启者: |
Alpha Wire 部件号:76021 |
76021,符合RoHS标准,以 2012/3/21 的生产为开始 |
兹通过本文件证明上述 Alpha 部件号的产品系根据欧洲议会和欧洲理事会2003年1月27日第2002/95/EC号关于在电气电子设备中限制使用某些有害物质的指令(即RoHS指令)而制造。关于所述指令的具体定义和范围,请参见所述指令。对该产品的RoHS符合性不需任何豁免。 |
危险物质 |
最大控制值 |
铅 |
按重量计算不得超过0.1% (1000 ppm) |
汞 |
按重量计算不得超过0.1% (1000 ppm) |
镉 |
按重量计算不得超过0.01% (100 ppm) |
六价镉 |
按重量计算不得超过0.1% (1000 ppm) |
聚溴联苯 (PBB) |
按重量计算不得超过0.1% (1000 ppm) |
聚溴二苯醚 (PBDE) |
|
台卡二苯醚 |
按重量计算不得超过0.1% (1000 ppm) |
|
Alpha Wire 公司已阅读本文件,并谨在此声明本文件所含信息及披露的数据在本文件发布时均准 确无误。本文件所含信息仅作为一般指南,适用于产品本身或产品组成部分的安全处理、贮存及其它操作。本文件不应被视为任何保证或质量规范。法规信息仅供参考。对于法律、法规的适用性,由产品用户根据各自的产品用途自行确定。 |
Alpha Wire 公司授权代表签字: |
|
|
|
