ALPHA-Series SF Flexible Servo Cable 600/1000 V, PVC/Nylon, TPE SF系列柔韌性伺服器控制电缆

ALPHA-SF61118CY

商品編號: ALPHA-SF61118CY

ALPHA-Series SF Flexible Servo Cable 600/1000 V, PVC/Nylon, TPE SF系列柔韌性伺服器控制电缆

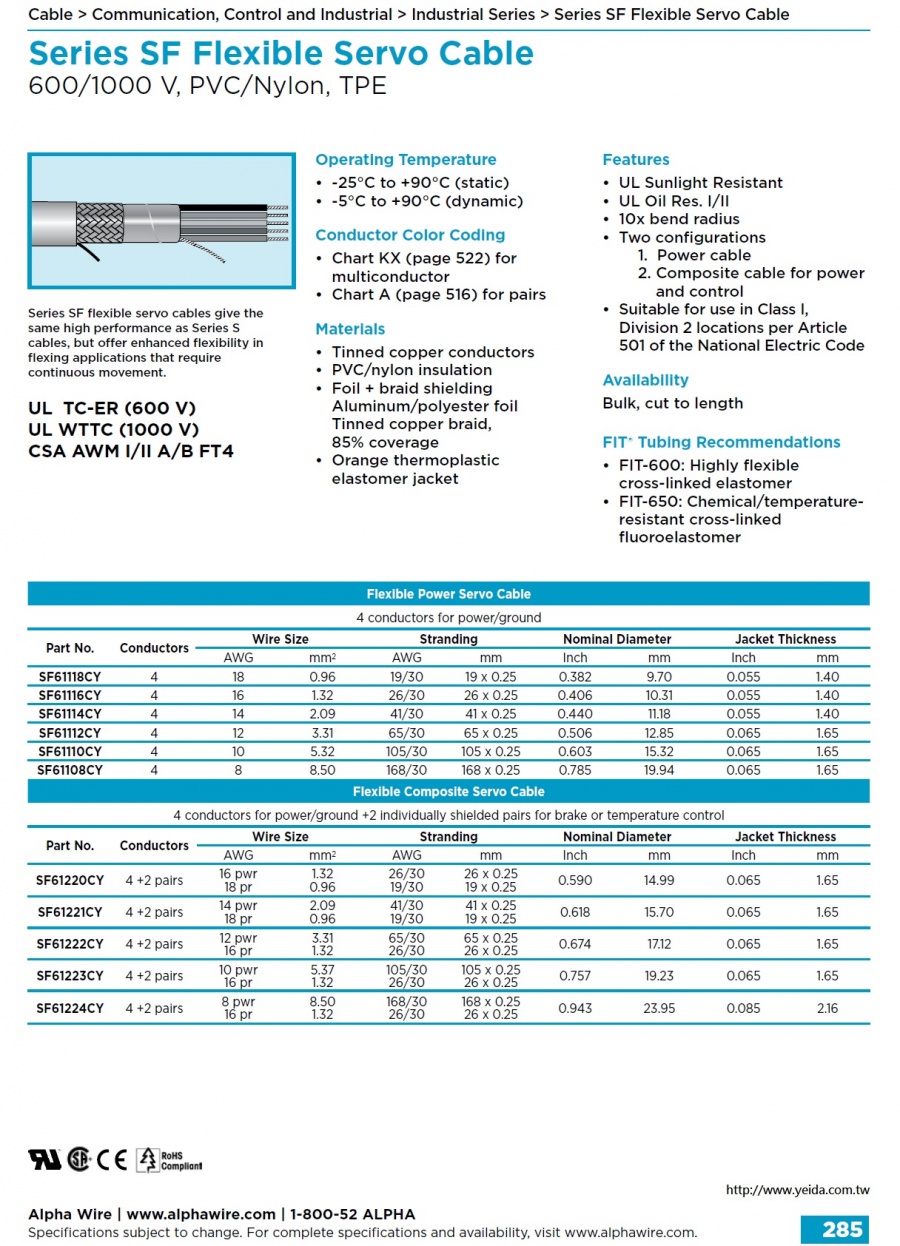

Series SF Flexible Servo Cable
600/1000 V, PVC/Nylon, TPE

Series SF flexible servo cables give the
same high performance as Series S
cables, but offer enhanced flexibility in
flexing applications that require
continuous movement.
UL TC-ER (600 V)
UL WTTC (1000 V)
CSA AWM I/II A/B FT4
　

Operating Temperature
• -25°C to +90°C (static)
• -5°C to +90°C (dynamic)
Conductor Color Coding
• Chart KX (page 522) for multiconductor
• Chart A (page 516) for pairs
Materials
• Tinned copper conductors
• PVC/nylon insulation
• Foil + braid shielding Aluminum/polyester foil Tinned copper braid, 85% coverage
• Orange thermoplastic elastomer jacket
Features
• UL Sunlight Resistant
• UL Oil Res. I/II
• 10x bend radius
• Two configurations
1. Power cable
2. Composite cable for power and control
• Suitable for use in Class I, Division 2 locations per Article 501 of the National Electric Code
Availability
Bulk, cut to length
　

FIT® Tubing Recommendations
• FIT-600: Highly flexible cross-linked elastomer
• FIT-650: Chemical/temperatureresistant cross-linked fluoroelastomer

Alpha Wire 的 S 和 SF 系列电缆专为伺服电动机和伺服驱动器设计。SF 系列电缆吸取了我们 S 系列电缆的成果，大幅提高了柔韧性。

工业系列 S 和 SF 的主要特性：

Power cable 电源线
四芯电源线，带或不带制动线对
线径为 18 到 8 AWG
热塑性橡胶护套
SF 系列具有更高的柔韧性
UL 类型 TC-ER（600 伏）
UL 类型 WTTC（600 伏）
防紫外线
UL 耐油级别 I/II

控制线

分解器应用为 3 到 6 对线
编码器应用为 9 根导线
线径为 20 AWG
聚烯烃绝缘
热塑性橡胶护套

Part #	Type	Shielding	Voltage	AWG	# of Elements	Jacket Diameter
SF61108CY	Multi-Conductor	FOIL/BRAID	600	8	4	0.785	CSA - FT4, CSA AWM I/II A/B, UL 1277 Type TC-ER, UL OIL RES I/II, UL Sunlight Resistant, UL Type WTTC
SF61110CY	Multi-Conductor	FOIL/BRAID	600	10	4	0.603	CSA - FT4, CSA AWM I/II A/B, UL - OIL RES I/II, UL 1277 Type TC-ER, UL Sunlight Resistant, UL Type WTTC
SF61112CY	Multi-Conductor	FOIL/BRAID	600	12	4	0.506	CSA - AWM I/II A/B, CSA - FT4, UL 1277 Type TC-ER, UL OIL RES I/II, UL Sunlight Resistant, UL Type WTTC
SF61114CY	Multi-Conductor	FOIL/BRAID	600	14	4	0.44	CSA - FT4, CSA AWM I/II A/B, UL - OIL RES I/II, UL 1277 Type TC-ER, UL Sunlight Resistant, UL Type WTTC
SF61116CY	Multi-Conductor	FOIL/BRAID	600	16	4	0.406	CSA - FT4, CSA AWM I/II A/B, UL 1277 Type TC-ER, UL OIL RES I/II, UL Sunlight Resistant, UL Type WTTC
SF61118CY	Multi-Conductor	FOIL/BRAID	600	18	4	0.382	CSA - FT4, CSA AWM I/II A/B, UL 1277 Type TC-ER, UL OIL RES I/II, UL Sunlight Resistant, UL Type WTTC
SF61220CY	Multi-Conductor	FOIL/BRAID	600	16	4, 2PR	0.59	CSA - FT4, CSA AWM I/II A/B, UL - OIL RES I/II, UL 1277 Type TC-ER, UL Sunlight Resistant, UL Type WTTC
SF61221CY	Multi-Conductor	FOIL/BRAID	600	14	4, 2PR	0.618	CSA - FT4, CSA AWM I/II A/B, UL - OIL RES I/II, UL 1277 Type TC-ER, UL Sunlight Resistant, UL Type WTTC
SF61222CY	Multi-Conductor	FOIL/BRAID	600	12	4, 2PR	0.674	CSA - FT4, CSA AWM I/II A/B, UL - OIL RES I/II, UL 1277 Type TC-ER, UL Sunlight Resistant, UL WTTC
SF61223CY	Multi-Conductor	FOIL/BRAID	600	10	4, 2PR	0.757	CSA - FT4, CSA AWM I/II A/B, UL 1277 Type TC-ER, UL OIL RES I/II, UL Sunlight Resistant, UL Type WTTC
SF61224CY	Multi-Conductor	FOIL/BRAID	600	8	4, 2PR	0.943	CSA - FT4, CSA AWM I/II A/B, UL - OIL RES I/II, UL 1277 Type TC-ER, UL Sunlight Resistant, UL Type WTTC
