ALPHA-V16316 Awg 16 x 3C 600V FOIL/BRAID Shielding VFD SUN RES, UL TC, RHW-XHHW-2Wet/Dry V 系列變頻驅動器電纜

ALPHA-V16316

商品編號: ALPHA-V16316

ALPHA-V16316 Awg 16 x 3C 600V FOIL/BRAID Shielding VFD SUN RES, UL TC, RHW-XHHW-2Wet/Dry V 系列變頻驅動器電纜

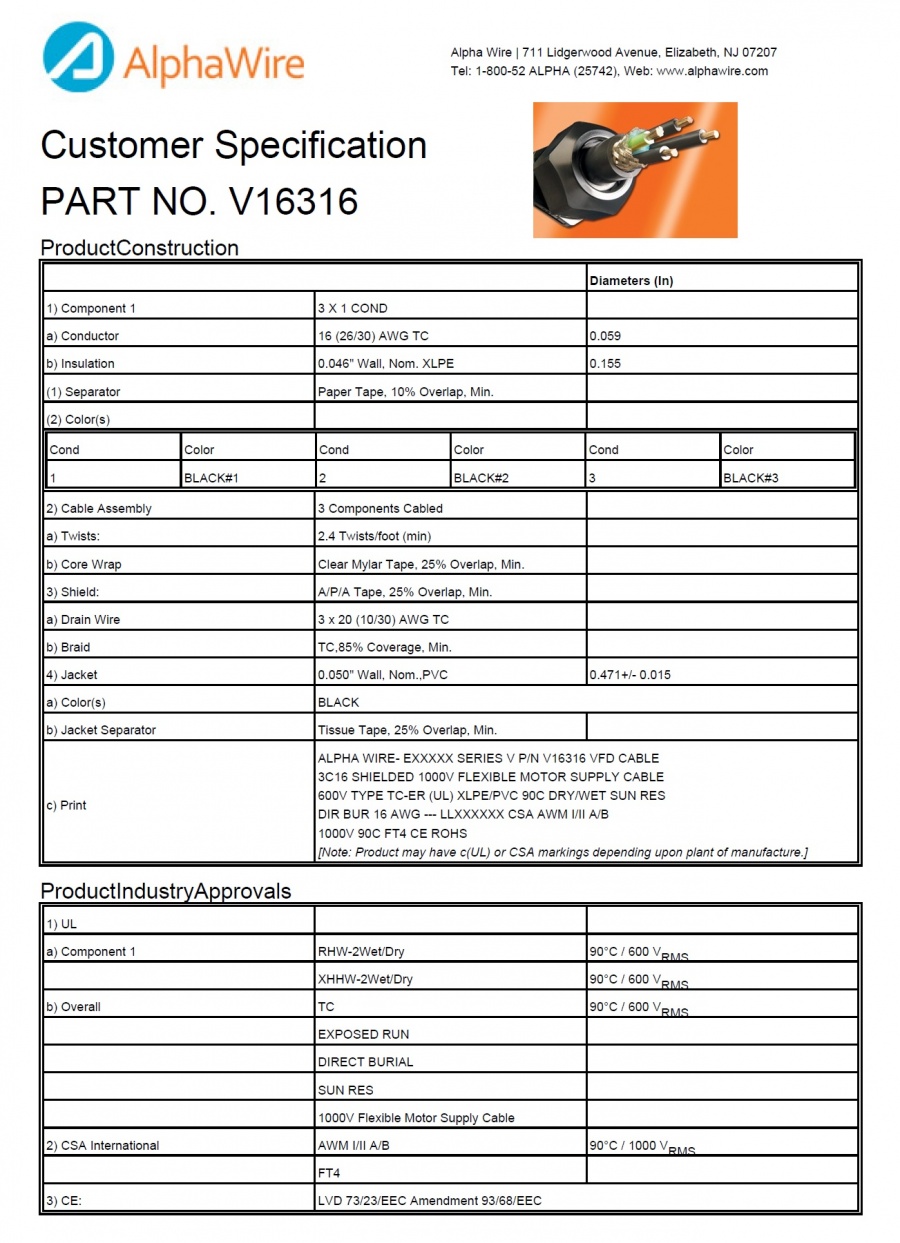

部件号	Type	Shielding	Voltage	AWG	# of Conductors	# of Elements	Jacket Diameter	Applicable Specifications
V16316	Conductor	FOIL/BRAID	600	16	3	3	0.468	CA Prop 65, CE, CSA - AWM I/II A/B, CSA FT4, ROHS - RoHS Compliance, UL DIRECT BURIAL, UL EXPOSED RUN, UL RHW-2Wet/Dry, UL SUN RES, UL TC, UL XHHW-2Wet/Dry

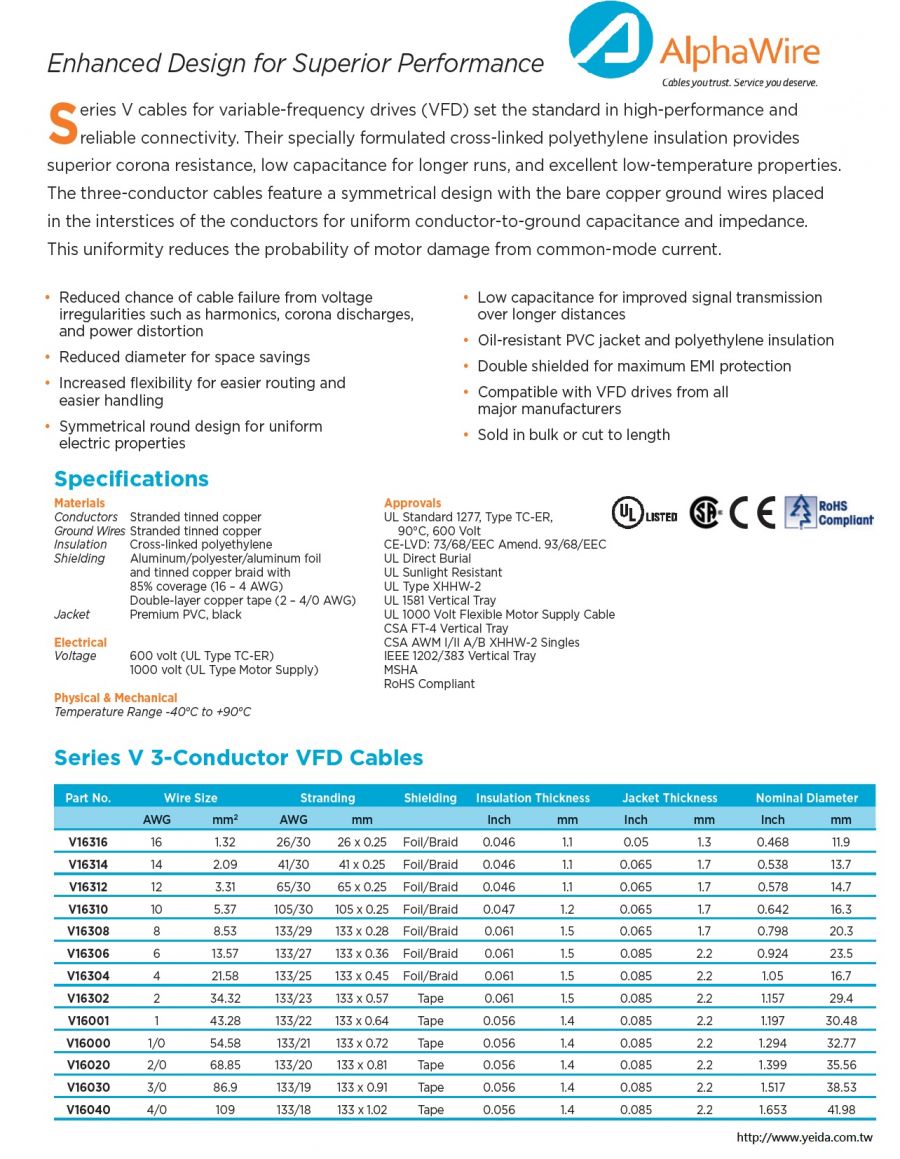

Optimized specifically for variable-frequency drives, Alpha Wire's Series V VFD cable offers industry-leading mechanical and electrical performance.

Series V Key features:
　

4-conductor (with and without brake pair) and 3-conductor (NEW!) available
16 to 4/0 AWG
14-AWG brake pair
Cross-linked polyethylene insulation
PVC jacket
Small diameter
Low capacitance for improved signal transmission
UL Type TC-ER (600 V)
CSA I/II A/B 1000V FT4
Direct burial
Sunlight resistant

Alpha Wire 的 V 系列变频驱动器电缆专门针对变频驱动器进行了优化，提供行业领先的机械和电气性能。

Series V Key features: V 系列电缆的主要特性 ：

可提供 4 芯（带和不带制动线对）和 3 芯（新型！）两种版本
线径为 16 到 4/0 AWG
14 AWG 制动线对
交联聚乙烯绝缘
聚氯乙烯护套
小直径
低电容，更强的信号传输性能
UL 类型 TC-ER（600 伏）
CSA I/II A/B 1000V FT4
直埋
防紫外线

Diameters (In)

1) Component 1

3 X 1 COND

a) Conductor

16 (26/30) AWG TC

0.059

b) Insulation

0.046" Wall, Nom. XLPE

0.155

(1) Separator

Paper Tape, 10% Overlap, Min.

(2) Color(s)

Cond	Color	Cond	Color	Cond	Color
1	BLACK#1	2	BLACK#2	3	BLACK#3

2) Cable Assembly

3 Components Cabled

a) Twists:

2.4 Twists/foot (min)

b) Core Wrap

Clear Mylar Tape, 25% Overlap, Min.

3) Shield:

A/P/A Tape, 25% Overlap, Min.

a) Drain Wire

3 x 20 (10/30) AWG TC

b) Braid

TC,85% Coverage, Min.

4) Jacket

0.050" Wall, Nom.,PVC

0.471+/- 0.015

a) Color(s)

BLACK

b) Jacket Separator

Tissue Tape, 25% Overlap, Min.

c) Print

ALPHA WIRE- EXXXXX SERIES V P/N V16316 VFD CABLE
3C16 SHIELDED 1000V FLEXIBLE MOTOR SUPPLY CABLE
600V TYPE TC-ER (UL) XLPE/PVC 90C DRY/WET SUN RES
DIR BUR 16 AWG --- LLXXXXXX CSA AWM I/II A/B
1000V 90C FT4 CE ROHS
[Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]

ProductIndustryApprovals

1) UL
a) Component 1	RHW-2Wet/Dry	90°C / 600 VRMS
	XHHW-2Wet/Dry	90°C / 600 VRMS
b) Overall	TC	90°C / 600 VRMS
	EXPOSED RUN
	DIRECT BURIAL
	SUN RES
	1000V Flexible Motor Supply Cable
2) CSA International	AWM I/II A/B	90°C / 1000 VRMS
	FT4
3) CE:	LVD 73/23/EEC Amendment 93/68/EEC

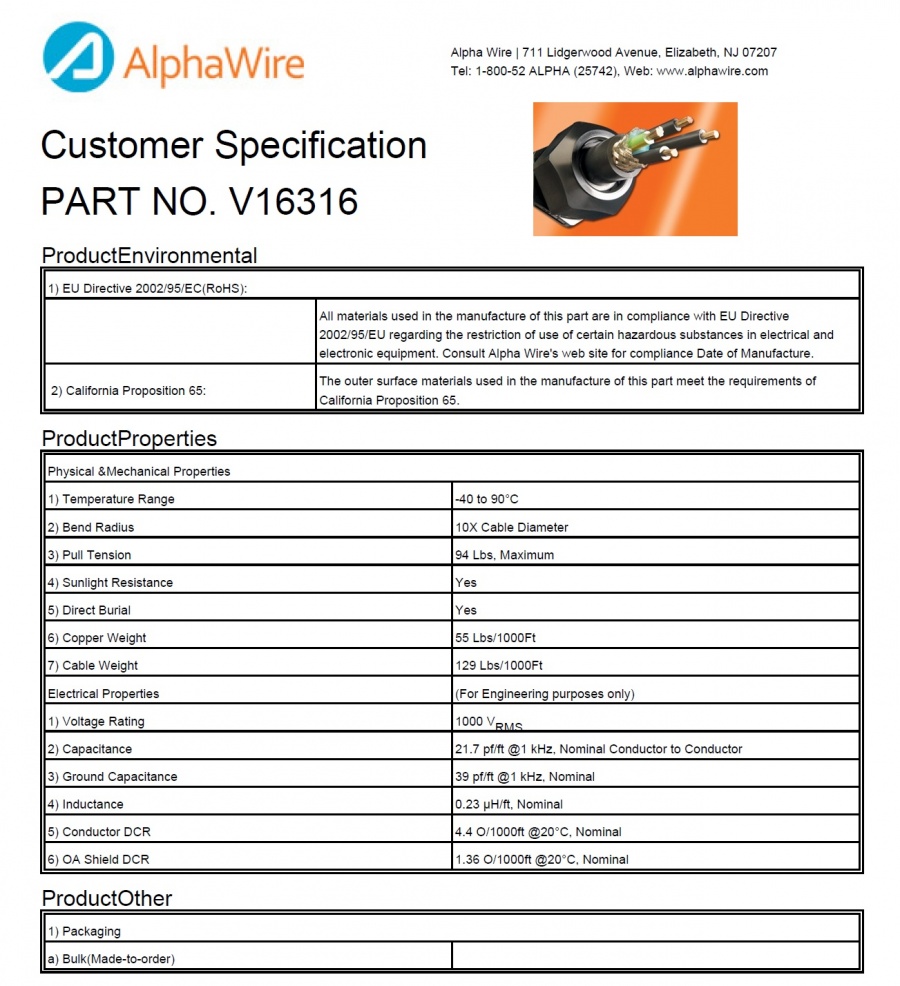

ProductEnvironmental

1) EU Directive 2002/95/EC(RoHS):
	All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
2) California Proposition 65:	The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.

ProductProperties

Physical & Mechanical Properties
1) Temperature Range	-40 to 90°C
2) Bend Radius	10X Cable Diameter
3) Pull Tension	94 Lbs, Maximum
4) Sunlight Resistance	Yes
5) Direct Burial	Yes
6) Copper Weight	55 Lbs/1000Ft
7) Cable Weight	129 Lbs/1000Ft
Electrical Properties	(For Engineering purposes only)
1) Voltage Rating	1000 VRMS
2) Capacitance	21.7 pf/ft @1 kHz, Nominal Conductor to Conductor
3) Ground Capacitance	39 pf/ft @1 kHz, Nominal
4) Inductance	0.23 µH/ft, Nominal
5) Conductor DCR	4.4 O/1000ft @20°C, Nominal
6) OA Shield DCR	1.36 O/1000ft @20°C, Nominal

ProductOther

1) Packaging
a) Bulk(Made-to-order)

Alpha Wire 的 V 系列变频驱动器电缆专门针对变频驱动器进行了优化，提供行业领先的机械和电气性能。

Series V Key features: V 系列电缆的主要特性 ：

可提供 4 芯（带和不带制动线对）和 3 芯（新型！）两种版本
线径为 16 到 4/0 AWG
14 AWG 制动线对
交联聚乙烯绝缘
聚氯乙烯护套
小直径
低电容，更强的信号传输性能
UL 类型 TC-ER（600 伏）
CSA I/II A/B 1000V FT4
直埋
防紫外线

符合性证明

敬启者：

Alpha Wire 部件号：V16316

V16316 ，符合RoHS标准，以 2009/8/19 的生产为开始

兹通过本文件证明上述 Alpha 部件号的产品系根据欧洲议会和欧洲理事会2003年1月27日第2002/95/EC号关于在电气电子设备中限制使用某些有害物质的指令（即RoHS指令）而制造。关于所述指令的具体定义和范围，请参见所述指令。对该产品的RoHS符合性不需任何豁免。

危险物质	最大控制值
铅	按重量计算不得超过0.1% (1000 ppm)
汞	按重量计算不得超过0.1% (1000 ppm)
镉	按重量计算不得超过0.01% (100 ppm)
六价镉	按重量计算不得超过0.1% (1000 ppm)
聚溴联苯 (PBB)	按重量计算不得超过0.1% (1000 ppm)
聚溴二苯醚 (PBDE)
台卡二苯醚	按重量计算不得超过0.1% (1000 ppm)

Alpha Wire 公司已阅读本文件，并谨在此声明本文件所含信息及披露的数据在本文件发布时均准 确无误。本文件所含信息仅作为一般指南，适用于产品本身或产品组成部分的安全处理、贮存及其它操作。本文件不应被视为任何保证或质量规范。法规信息仅供参考。对于法律、法规的适用性，由产品用户根据各自的产品用途自行确定。

Alpha Wire 公司授权代表签字：

技术及质保部总监 Dave Watson

Type	Shielding	Voltage	AWG	# of Conductors	# of Elements	Jacket Diameter
V16000	Conductor	Double Foil	600	1/0	3	3	1.294	CA Prop 65, CE, CSA AWM I/II A/B, CSA FT4, Pennsylvania Burea of Mine Safety Approved, UL DIRECT BURIAL, UL EXPOSED RUN, UL SUN RES, UL TC, UL XHHW-2Wet/Dry
V16001	Conductor	Double Foil	600	1	3	3	1.197
V16020	Conductor	Double Foil	600	2/0	3	3	1.399
V16030	Conductor	Double Foil	600	3/0	3	3	1.517
V16040	Conductor	Double Foil	600	4/0	3	3	1.653
V16108	Composite	FOIL/BRAID	600	8+14	4 + 1 Pair	5	1.032
V16110	Composite	FOIL/BRAID	600	10+14	4 + 1 Pair	5	0.875
V16112	Composite	FOIL/BRAID	600	12+14	4 + 1 Pair	5	0.785
V16114	Composite	FOIL/BRAID	600	14+14	4 + 1 Pair	5	0.743
V16116	Composite	FOIL/BRAID	600	16+14	4 + 1 Pair	5	0.717
V16302	Conductor	Double Foil	600	2	3	3	1.157
V16304	Conductor	FOIL/BRAID	600	4	3	3	1.05

Part #	Type	Shielding	Voltage	AWG	# of Conductors	# of Elements	Jacket Diameter
V16306	Conductor	FOIL/BRAID	600	6	3	3	0.924	CA Prop 65, CE, CSA - AWM I/II A/B, CSA FT4, ROHS - RoHS Compliance, UL DIRECT BURIAL, UL EXPOSED RUN, UL RHW-2Wet/Dry, UL SUN RES, UL TC, UL XHHW-2Wet/Dry
V16308	Conductor	FOIL/BRAID	600	8	3	3	0.798
V16310	Conductor	FOIL/BRAID	600	10	3	3	0.642
V16312	Conductor	FOIL/BRAID	600	12	3	3	0.578
V16314	Conductor	FOIL/BRAID	600	14	3	3	0.538
V16316	Conductor	FOIL/BRAID	600	16	3	3	0.468
