    首頁 > > YRUILON-過壓過流保護元件

    Positive Thermal Coefficent - RL16 Series Resettable Fuses-PPTC 自恢復保險絲
    看原圖
    		YRUILON-RL16


    商品編號: YRUILON-RL16

    Positive Thermal Coefficent - RL16 Series Resettable Fuses-PPTC 自恢復保險絲


    And overcurrent protection > Resettable Fuses-PPTC

    過流與保護模塊 > 自恢復保險絲

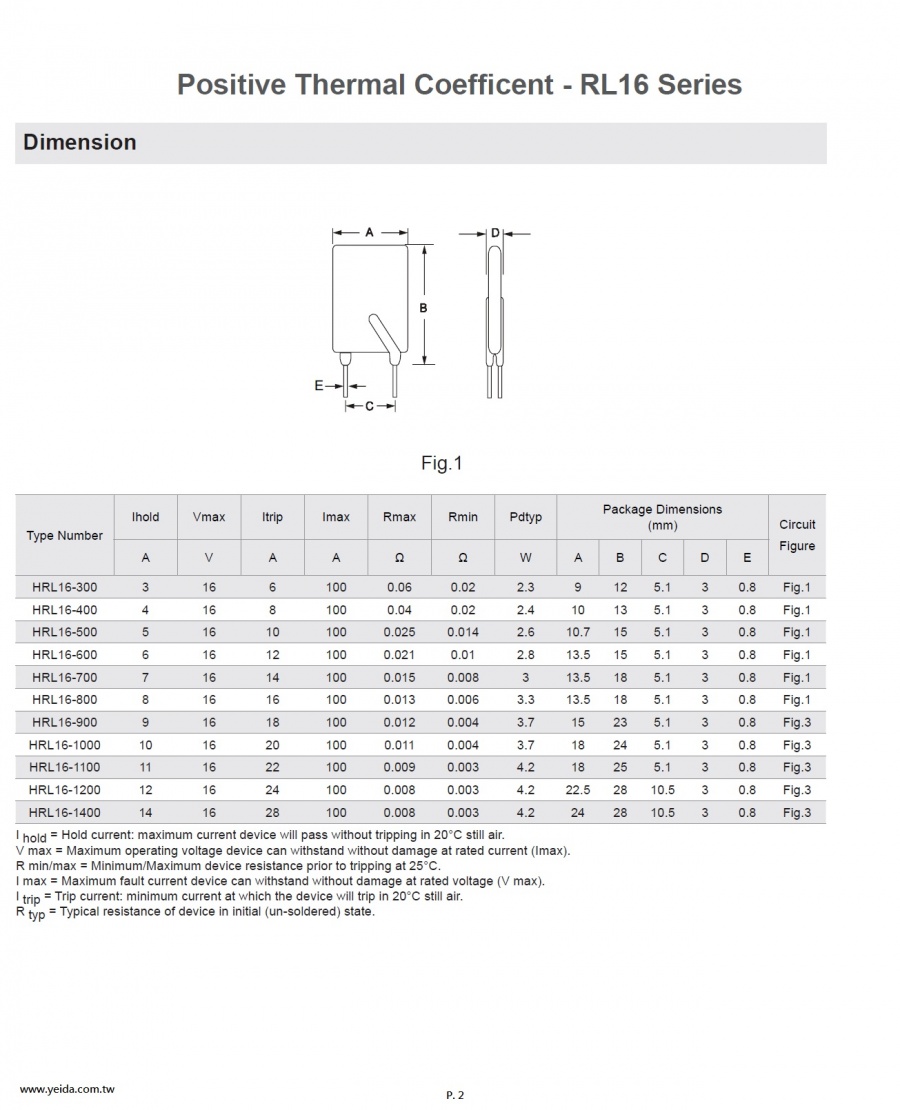

    Positive Thermal Coefficent - RL16 Series

    Warehouse Storage Conditions of Products

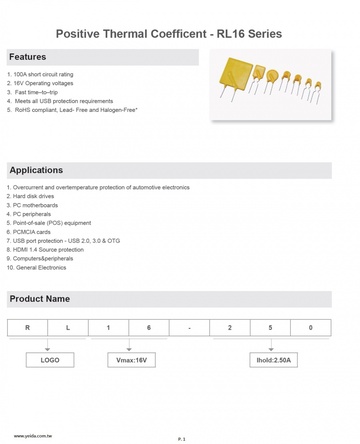

    Features

    1. 100A short circuit rating
    2. 16V Operating voltages
    3. Fast time–to–trip
    4. Meets all USB protection requirements
    5. RoHS compliant, Lead- Free and Halogen-Free*

    Applications
    1. Overcurrent and overtemperature protection of automotive electronics
    2. Hard disk drives
    3. PC motherboards
    4. PC peripherals
    5. Point-of-sale (POS) equipment
    6. PCMCIA cards
    7. USB port protection - USB 2.0, 3.0 & OTG
    8. HDMI 1.4 Source protection
    9. Computers&peripherals
    10. General Electronics

    Warehouse Storage Conditions of Products

    · Storage Conditions:
    1. Storage Temperature: -10°C~+40°C
    2. Relative Humidity:≤75%RH
    3. Keep away from corrosive atmosphere and sunlight.
    · Period of Storage: 1 year

    型號/PDF Ih(A) It(A) Vmax(V) Imax(A) Pdmax(W) Rmin(Ω) R1max(Ω) Package
    RL06-075 0.75 1.3 6 40 0.3 0.14 0.345 RL06
    RL06-090 0.9 1.8 6 40 0.6 0.1 0.27 RL06
    RL06-110 1.1 2.2 6 40 0.7 0.08 0.21 RL06
    RL06-120 1.2 2 6 40 0.6 0.08 0.21 RL06
    RL06-135 1.35 2.7 6 40 0.81 0.06 0.18 RL06
    RL06-160 1.6 3.2 6 40 0.9 0.05 0.165 RL06
    RL06-185 1.85 3.7 6 40 1 0.05 0.135 RL06
    RL06-250 2.5 5 6 40 1.21 0.03 0.09 RL06
    RL16-250 2.5 4.7 16 100 1 0.22 0.053 RL16
    RL16-300 3.0 5.1 16 100 2.3 0.038 0.0975 RL16
    RL16-400 4.0 6.8 16 100 2.4 0.021 0.06 RL16
    RL16-500 5.0 8.5 16 100 2.6 0.015 0.034 RL16
    RL16-600 6.0 10.2 16 100 2.8 0.01 0.028 RL16
    RL16-700 7.0 11.9 16 100 3 0.0077 0.02 RL16
    RL16-800 8.0 13.6 16 100 3 0.056 0.0175 RL16
    RL16-900 9.0 15.3 16 100 3.3 0.0047 0.0135 RL16
    RL16-1000 10 17 16 100 3.6 0.004 0.0102 RL16
    RL16-1100 11 18.7 16 100 3.7 0.0037 0.0089 RL16
    RL16-1200 12 20.4 16 100 4.2 0.0033 0.0086 RL16
    RL16-1400 14 23.8 16 100 4.6 0.0026 0.0064 RL16
    RL30-090 0.9 1.8 30 40 0.6 0.15 0.23 RL30
    RL30-110 1.1 2.2 30 40 0.7 0.105 0.16 RL30
    RL30-135 1.35 2.7 30 40 0.8 0.075 0.13 RL30
    RL30-160 1.60 3.2 30 40 0.9 0.06 0.11 RL30
    RL30-185 1.85 3.7 30 40 1 0.05 0.1 RL30
    RL30-250 2.5 5 30 40 1.2 0.03 0.08 RL30
    RL30-300 3.0 6 30 40 2 0.025 0.06 RL30
    RL30-400 4.0 8 30 40 2.5 0.02 0.04 RL30
    RL30-500 5.0 10 30 40 3 0.015 0.03 RL30
    RL30-600 6.0 12 30 40 3.5 0.01 0.025 RL30
    RL30-700 7.0 14 30 40 3.8 0.005 0.2 RL30
    RL30-800 8.0 16 30 40 4 0.005 0.013 RL30
    RL30-900 9.0 18 30 40 4.2 0.005 0.01 RL30
